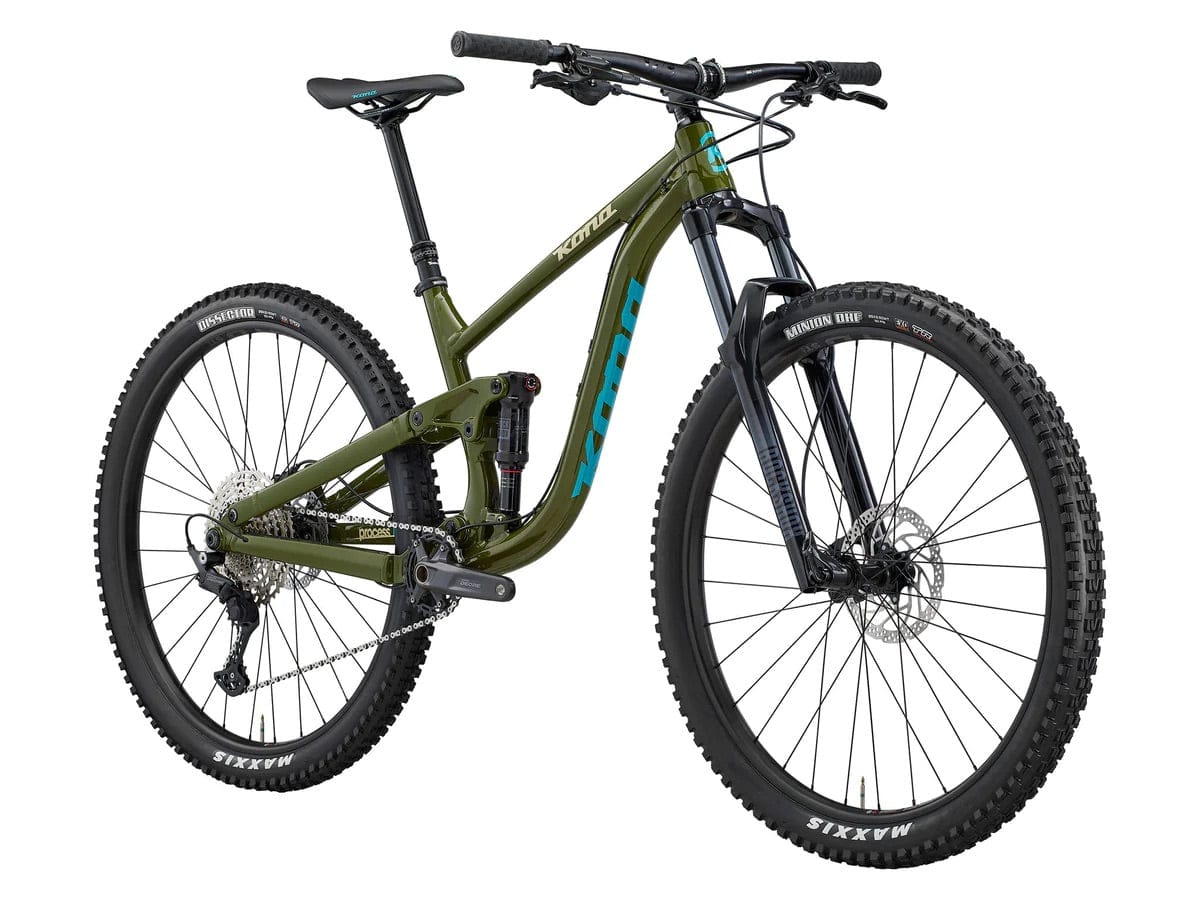

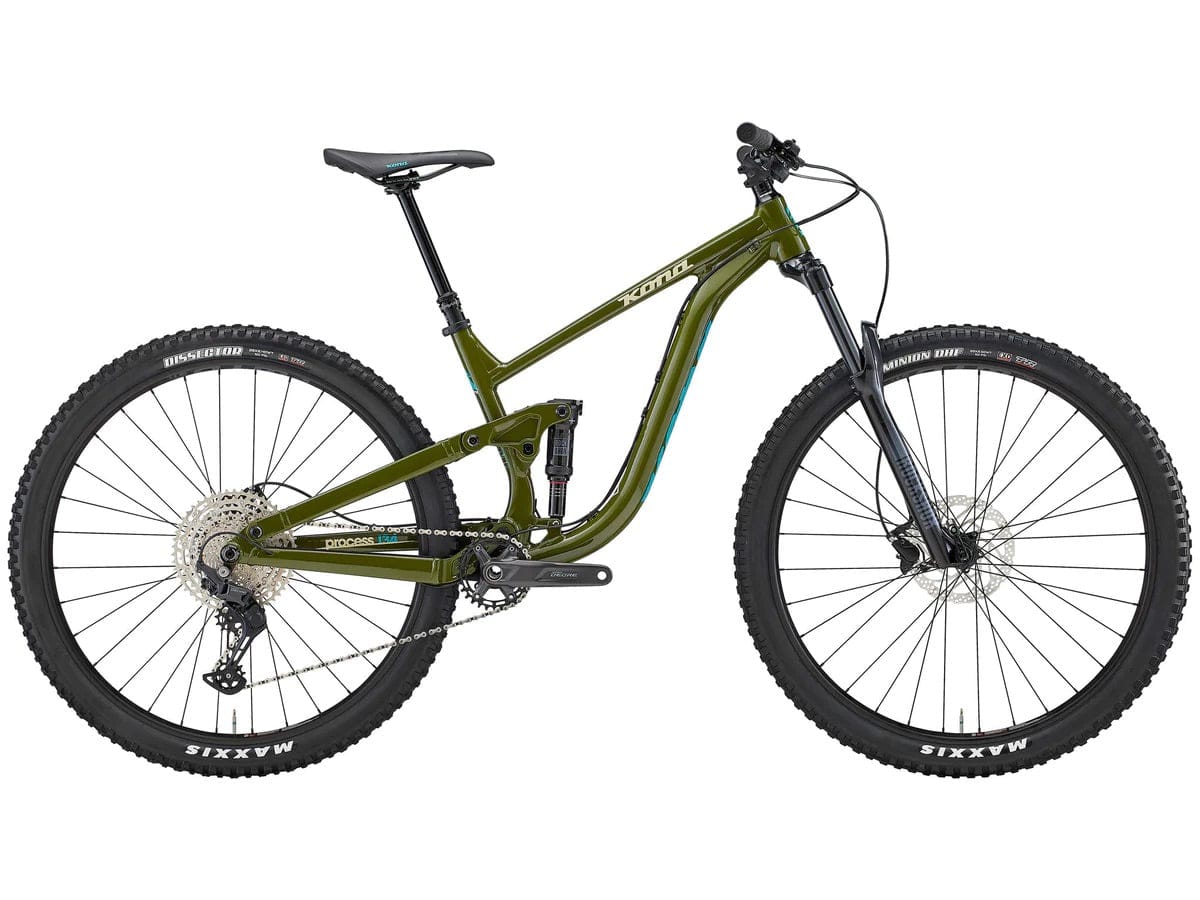

Kona Process 134 AL 29 - Full Suspension
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME MATERIAL | Kona 6061 Aluminum Butted 134mm Travel |
| SIZES | S, M, L, XL |

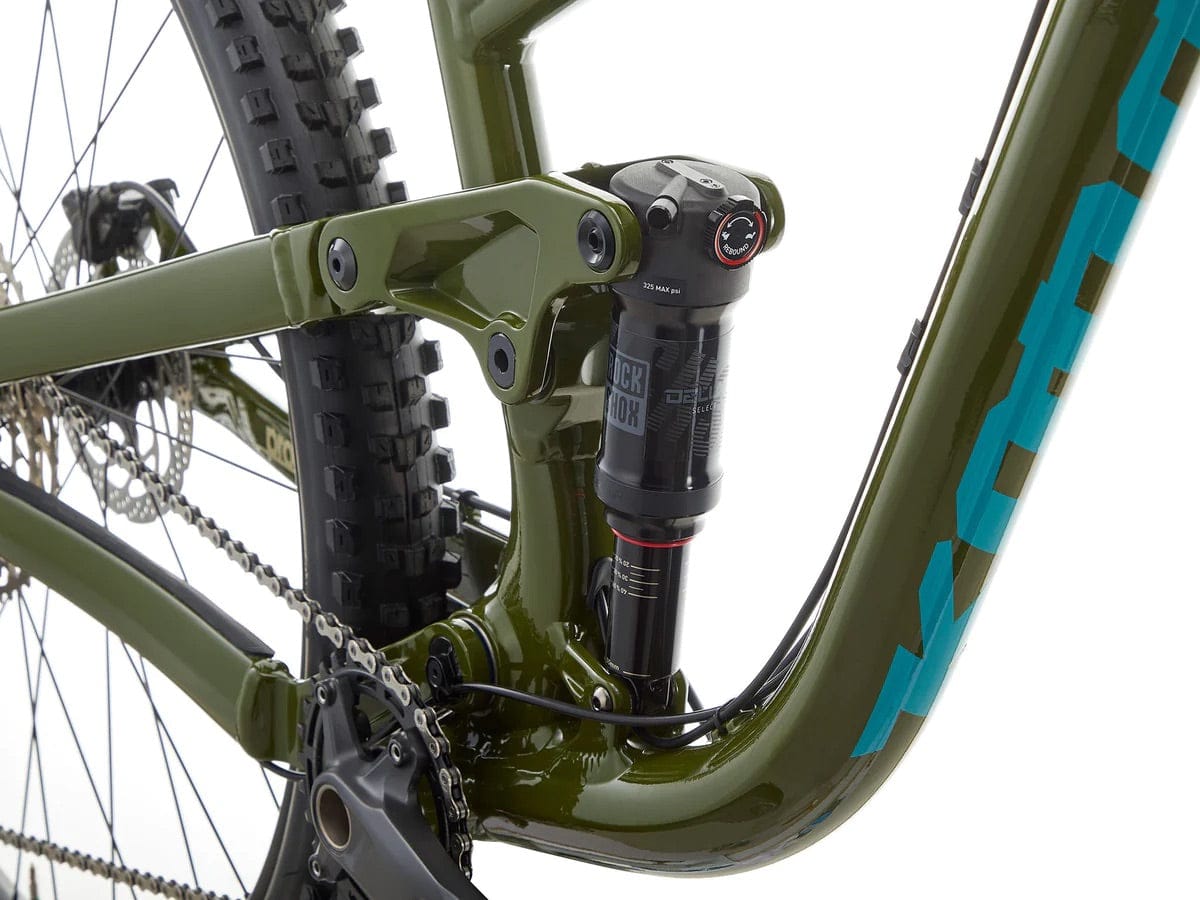

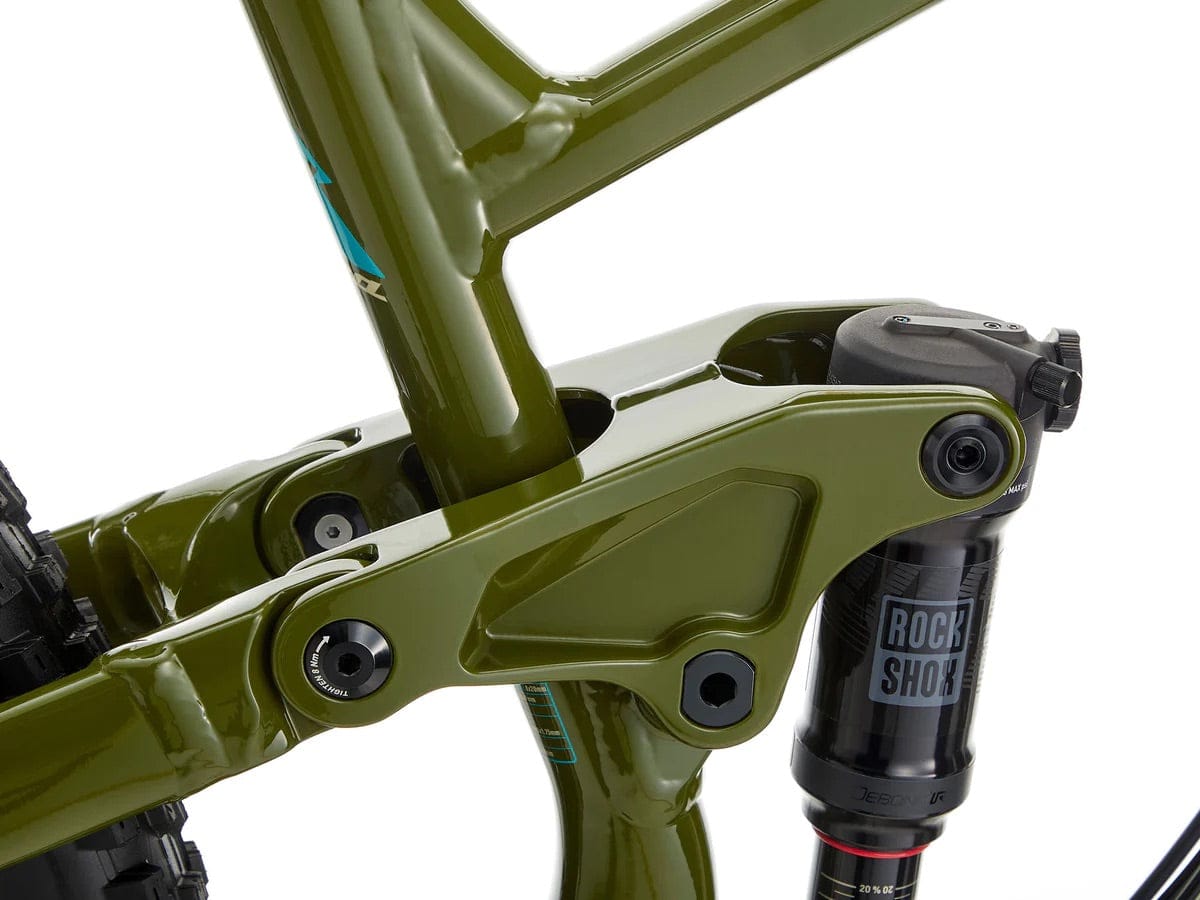

| REAR SHOCK | RockShox Deluxe Select Trunnion |

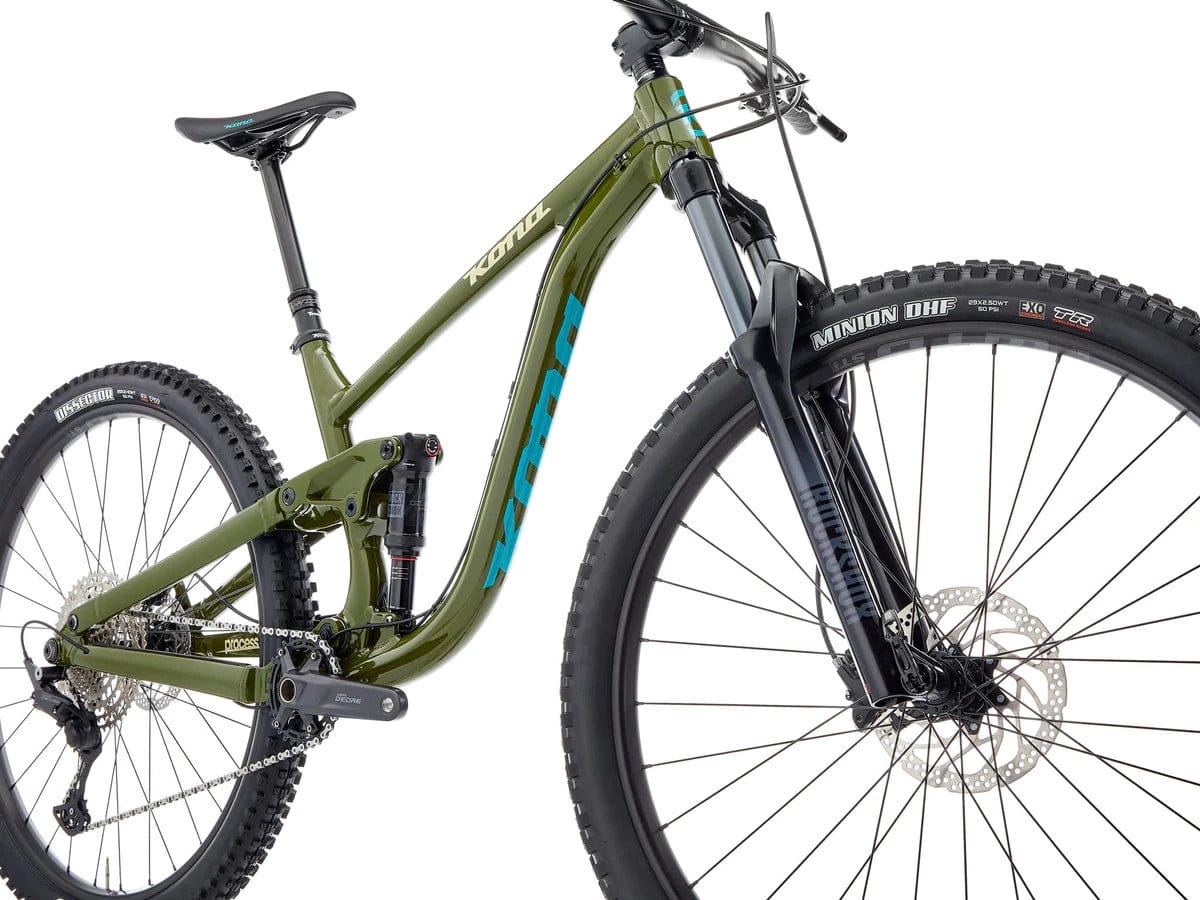

| FORK | RockShox Recon RL Motion Control Solo Air 140mm Tapered 110mm Spacing |
| CRANKARMS | Shimano Deore |
| CHAINRINGS | 30t |
| B/B | Shimano Deore PF92 |
| PEDALS | n/a |
| CHAIN | KMC X11 |
| CASSETTE | Sunrace 10spd |
| CHAINGUIDE | n/a |
| F/D | n/a |

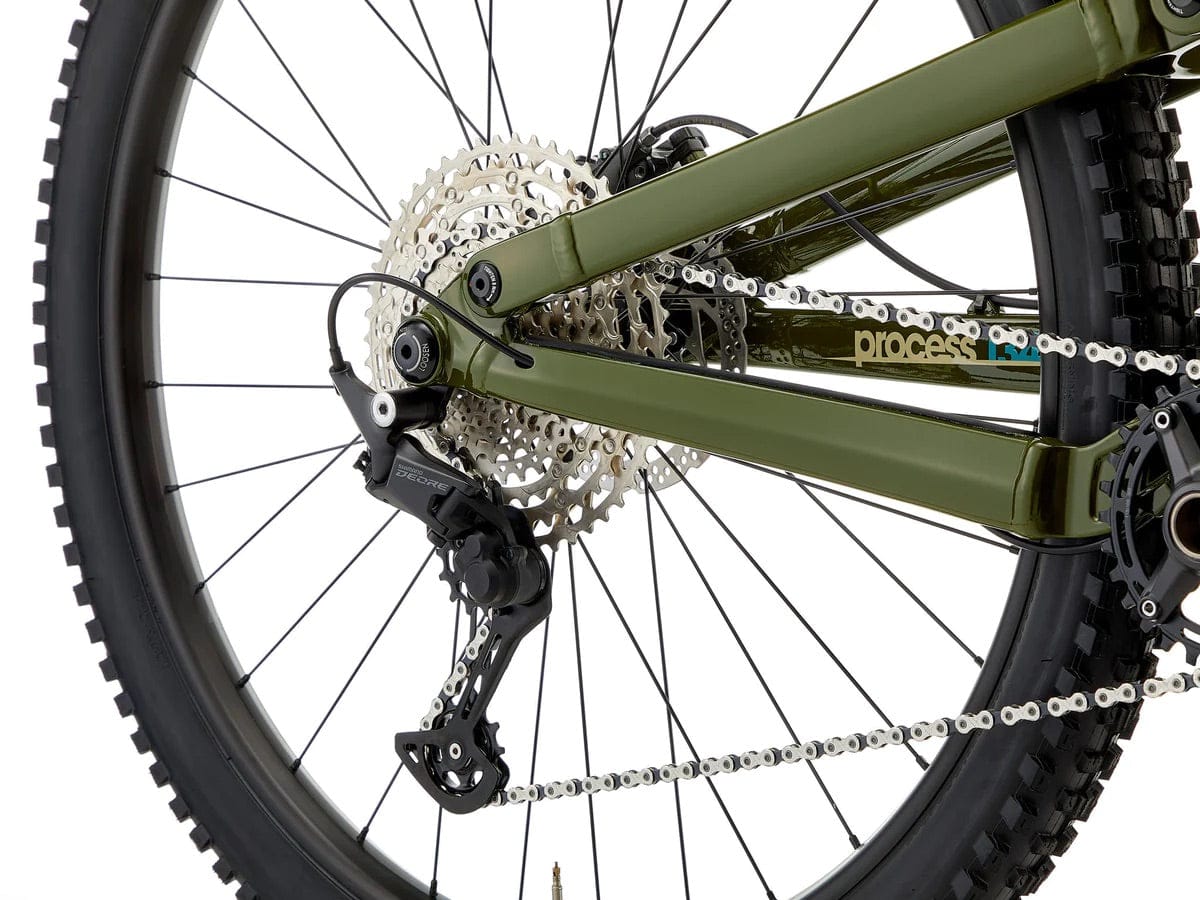

| R/D | Microshift Trail Pro |
| SHIFTERS | Microshift Trail Pro |

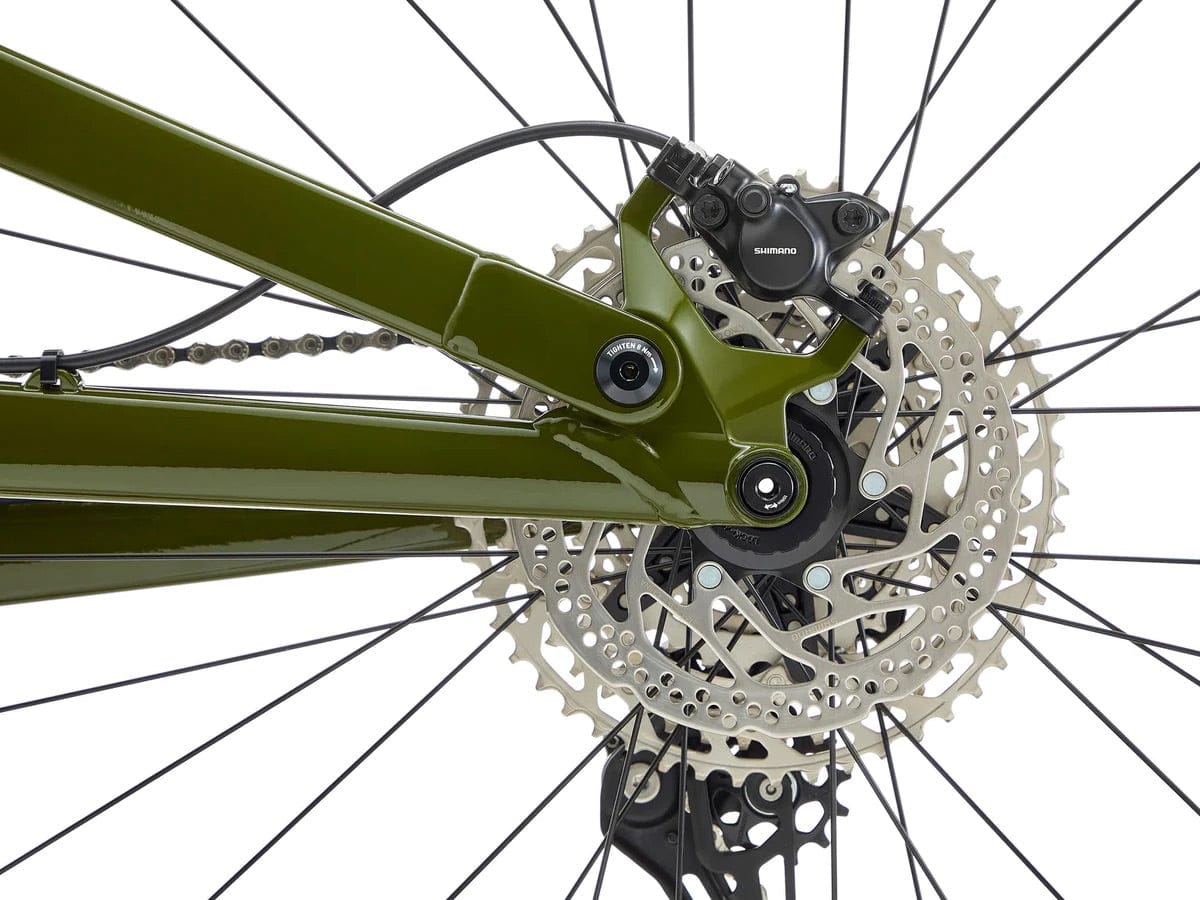

| BRAKE CALIPERS | Shimano MT201 Hydraulic |
| FRONT BRAKE ROTOR | Shimano RT30 180mm (centerlock) |
| REAR BRAKE ROTOR | Shimano RT30 160mm (centerlock) |
| BRAKE LEVERS | Shimano MT201 Hydraulic |

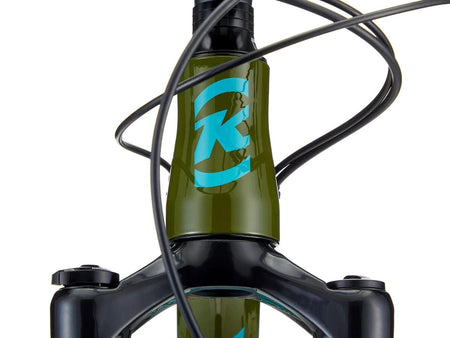

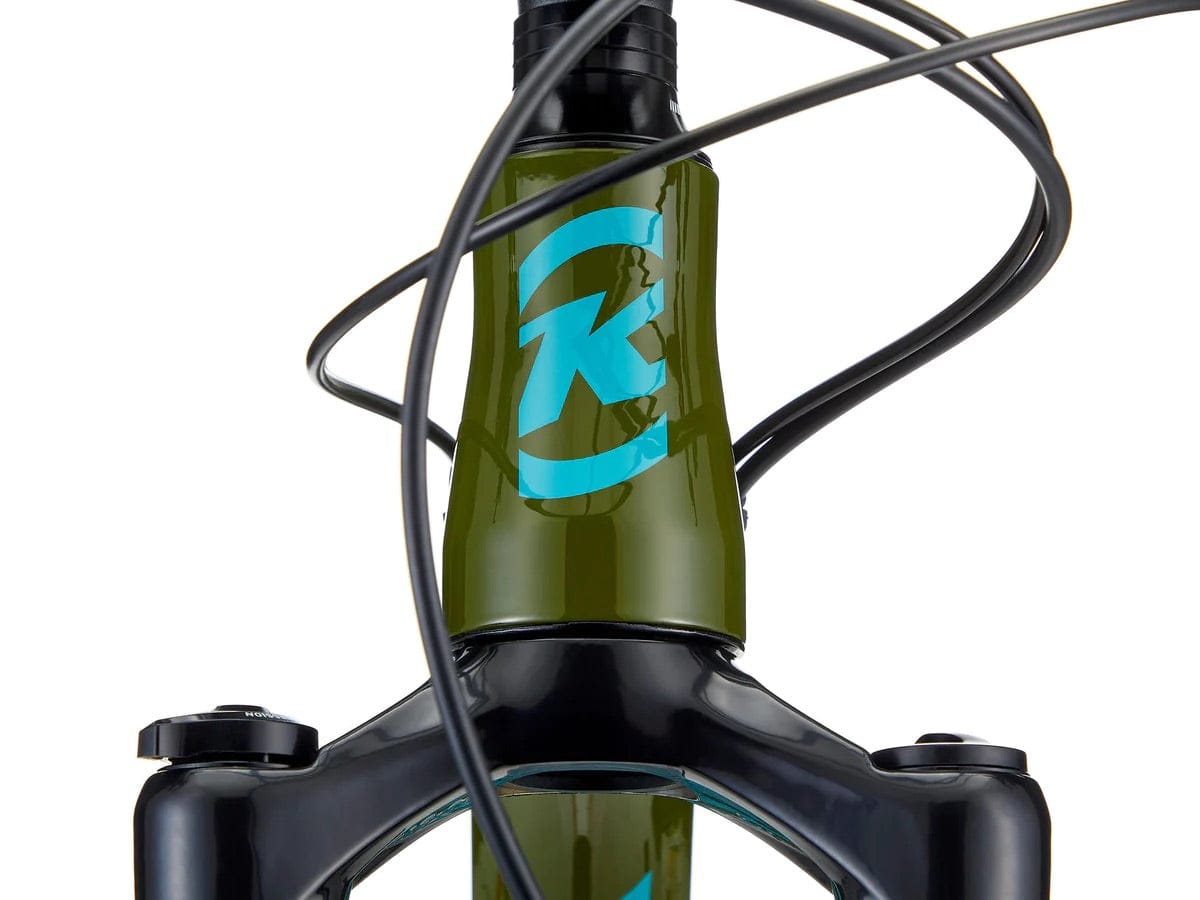

| HEADSET | FSA No.57B |
| HANDLEBAR | Kona XC/BC 35 |
| STEM | Kona XC/BC 35 |

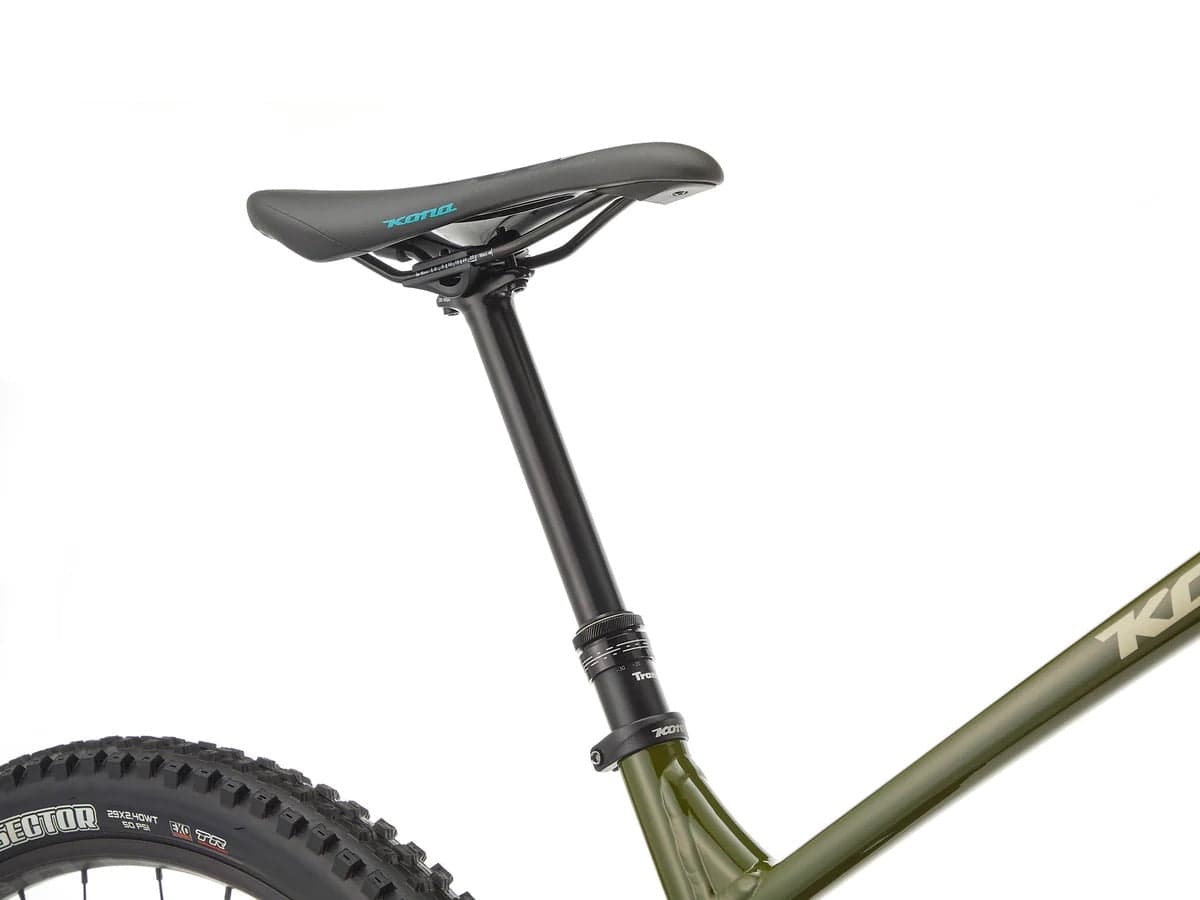

| SEATPOST | TranzX Dropper +RAD Internal 31.6mm |
| SEAT CLAMP | Kona Clamp |
| GRIPS | Kona Key Grip |
| SADDLE | Kona Trail |
| FRONT HUB | Shimano 110x15mm |
| REAR HUB | Shimano 148x12mm |
| SPOKES | Stainless Black 14g |
| RIMS | WTB ST i30 TCS 2.0 |
| FRONT TIRE | Maxxis Minion DHF EXO TR DUAL 29x2.5" WT |
| REAR TIRE | Maxxis Dissector EXO TR DUAL 29x2.4" WT |
| PAINT COLOR | Gloss Olive w/ Eris & Sandal Decals |
| EXTRAS | n/a |
GEOMETRY
| SIZE | S | M | L | XL | |
| 1 | ST LENGTH | 385 | 410 | 450 | 485 |
| 2 | TT LENGTH | 569 | 596 | 625 | 664 |
| 3 | REACH | 425 | 450 | 475 | 510 |
| 4 | STACK | 601 | 605 | 615 | 625 |
| 5 | STANDOVER | 715 | 725 | 725 | 725 |
| 6 | HT ANGLE | 66 | 66 | 66 | 66 |
| 7 | HT LENGTH | 93 | 98 | 109 | 120 |
| 8 | ST ANGLE | 76.5 | 76.5 | 76.3 | 76.2 |
| 9 | CS LENGTH | 427 | 427 | 427 | 427 |
| 10 | BB DROP | 33 | 33 | 33 | 33 |
| 11 | BB HEIGHT | 342 | 342 | 342 | 342 |
| 12 | WHEELBASE | 1159 | 1186 | 1216 | 1255 |
| 13 | FRONT CENTER | 734 | 761 | 791 | 830 |
| 14 | FORK LENGTH | 551 | 551 | 551 | 551 |
| 15 | FORK OFFSET | 51 | 51 | 51 | 51 |
