Fuel EX 9.8 GX AXS Gen 6

Key Stats

Frame Material Fork Travel Drivetrain Wheel Size

OCLV Mountain Carbon 150mm 1x12 Sram GX Eagle AXS XS: 27.5 S/M/ML/L/XL: 29"

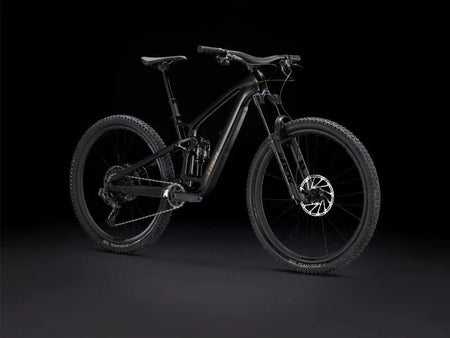

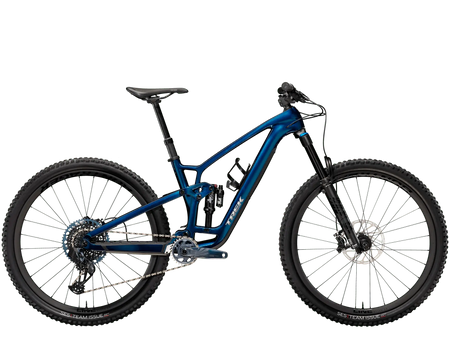

The Fuel EX 9.8 is a hard-charging trail bike with a light and stiff carbon frame that's smooth and quiet, and holds its own when you pick a line. It's loaded with the latest tech like a wireless SRAM GX AXS drivetrain that's super clean-looking and customisable. 150 mm front and 140 mm rear suspension keep you in control on the roughest trails and it's all topped off with carbon Bontrager wheels with a quick-engaging hub.

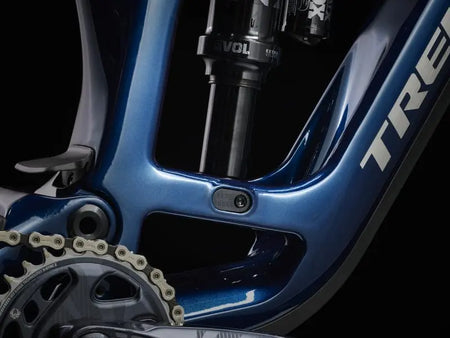

Its lightweight carbon frame and progressive geometry are built to tackle steep and gnarly descents and punchy climbs alike

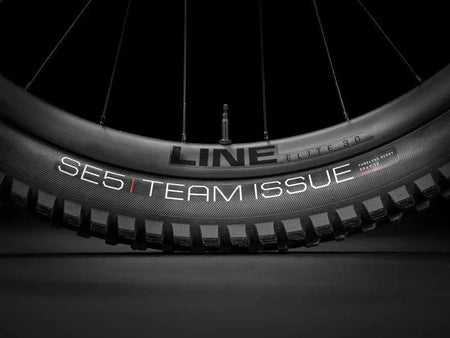

It comes with light and stiff carbon wheels that make quick work of technical terrain and keep you on your line, even when things get hairy

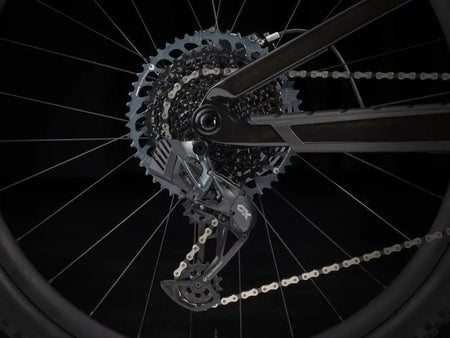

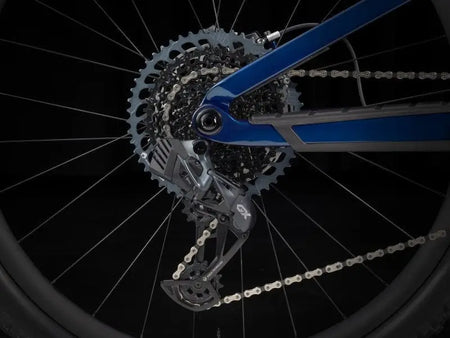

You get the latest technology in SRAM's workhorse GX group set, with wireless AXS shifting

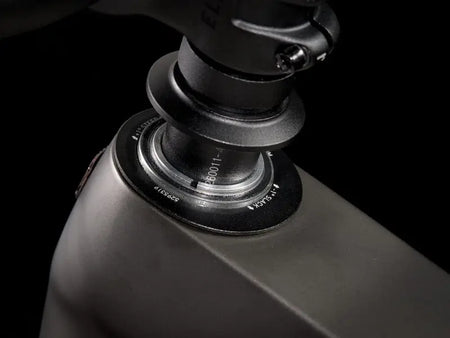

With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations

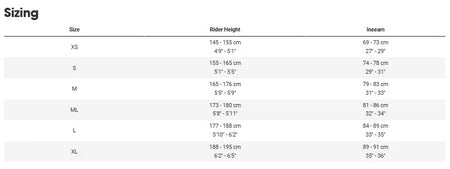

We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels

$6,154.00 inc. VAT

-30% ~~$8,810.00~~ $6,154.00 inc. VAT

Size XS (27.5) S (27.5) S M M/L L XL

Colour Deep Smoke Mulsanne Blue

Product variants

Key Stats

Frame Material Fork Travel Drivetrain Wheel Size

OCLV Mountain Carbon 150mm 1x12 Sram GX Eagle AXS XS: 27.5 S/M/ML/L/XL: 29"

Fuel EX 9.8 GX AXS Gen 6 Price List

Store		Price

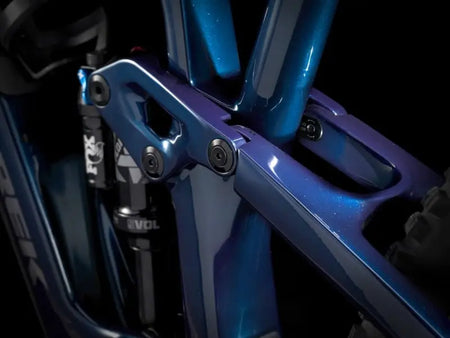

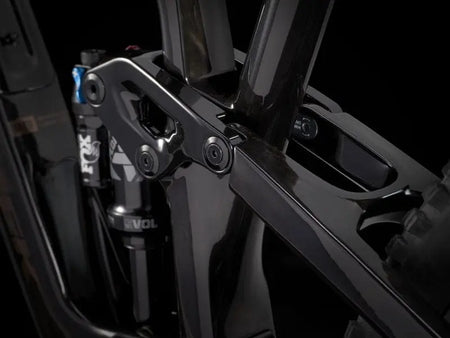

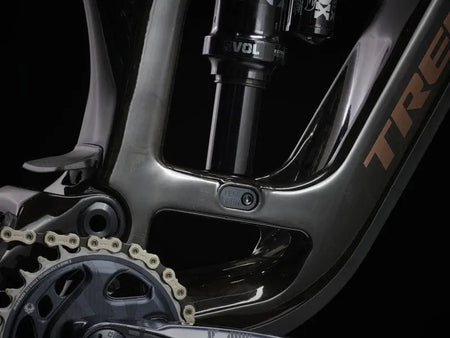

Mainframe	Size: ML , M , XS , L , S , XL OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
Fork	Size: ML , M , XS , L , S , XL Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel

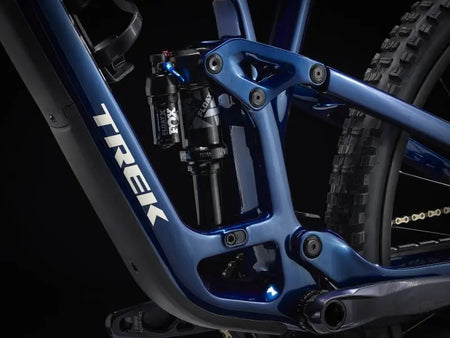

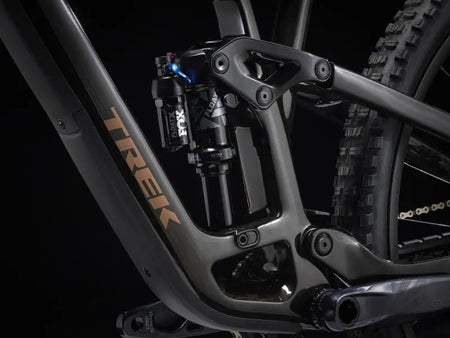

Shock	Size: ML , M , XS , L , S , XL Fox Performance Float X, 2-position damper, 185 mm x 55 mm
Wheels	Front Wheel Size: XS , S Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5" Size: ML , M , L , S , XL Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" Rear Wheel Size: XS , S Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 27.5" Size: ML , M , L , S , XL Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 29" Front Hub Size: ML , M , L , S , XL Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle Rear Skewer Size: ML , M , XS , L , S , XL Bontrager Switch thru-axle, removable lever Rim Size: ML , M , L , S , XL Bontrager Line Elite 30, Tubeless-Ready Tire Size: XS , S Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50" Size: ML , M , L , S , XL Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" Tire Part Size: ML , M , XS , L , S , XL Bontrager TLR sealant, 180 ml/6 oz *Rim Strip Size: ML , M , XS , L , S , XL Bontrager TLR Max tyre size Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer
E-System	SRAM AXS battery pack (with charger)
Drivetrain	Shifter Size: ML , M , XS , L , S , XL SRAM GX Eagle AXS, 12 speed Rear Derailleur Size: ML , M , XS , L , S , XL SRAM GX Eagle AXS Crank Size: ML , M , XS , L , S , XL SRAM GX Eagle, DUB MTB Wide, 30T, 55 mm chainline, 170 length Bottom Bracket Size: ML , M , XS , L , S , XL SRAM DUB MTB Wide, 73 m, BSA threaded Cassette Size: ML , M , XS , L , S , XL SRAM Eagle XG-1275, 10-52, 12-speed *Chain Size: ML , M , XS , L , S , XL SRAM GX Eagle, 12-speed Max. chainring size 1x: 34T round, 32T oval, min 28T
Saddle	Bontrager Arvada, austenite rails, 138 mm width
Seatpost	Size: XS , S Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length Size: ML , M Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length Size: L Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length Size: XL Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
Integrated Bar Stem	Size: XS , S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length Size: ML , M , L , XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
Grips	Bontrager XR Trail Elite, nylon lock-on
Headset	Size: ML , M , XS , L , S , XL Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible

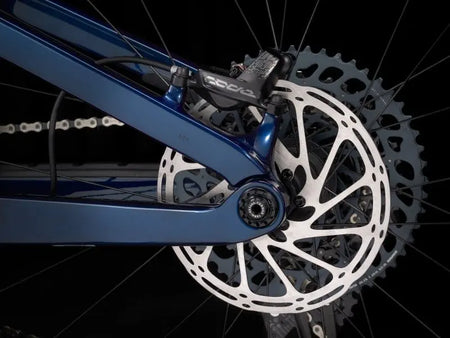

Brake	SRAM Code R 4-piston hydraulic disc

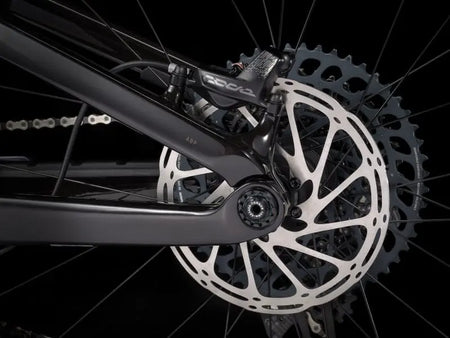

Brake Rotor	Size: ML , M , XS , L , S , XL SRAM CentreLine, 6-bolt, round-edge, 180 mm Size: ML , M , L , XL SRAM CentreLine, 6-bolt, round-edge, 200 mm
Rotor size	Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

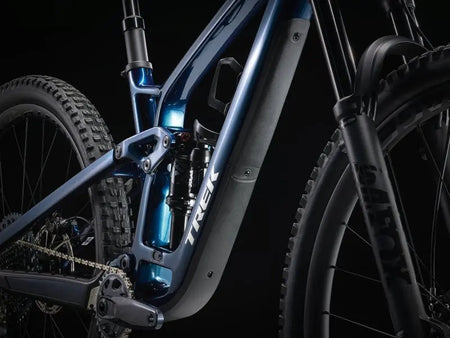

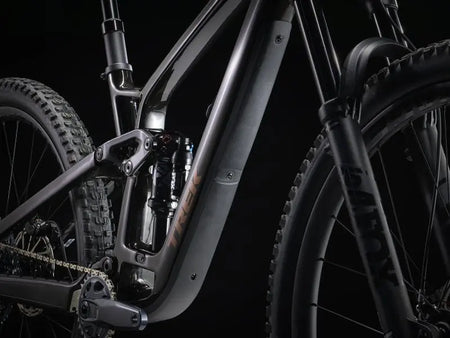

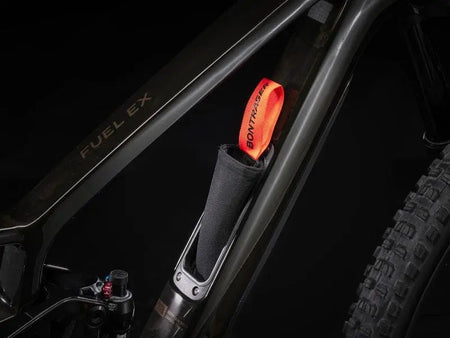

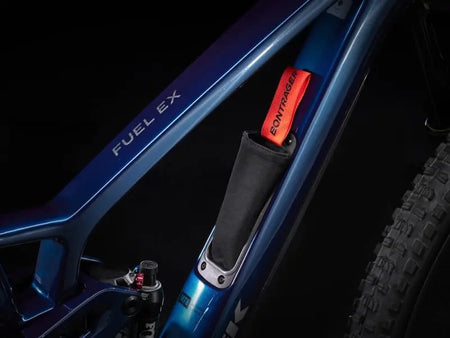

Bag	Size: ML , M , XS , L , S , XL Bontrager BITS Internal Frame Storage Bag
Weight	M – 14.15 kg/31.21 lb (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
