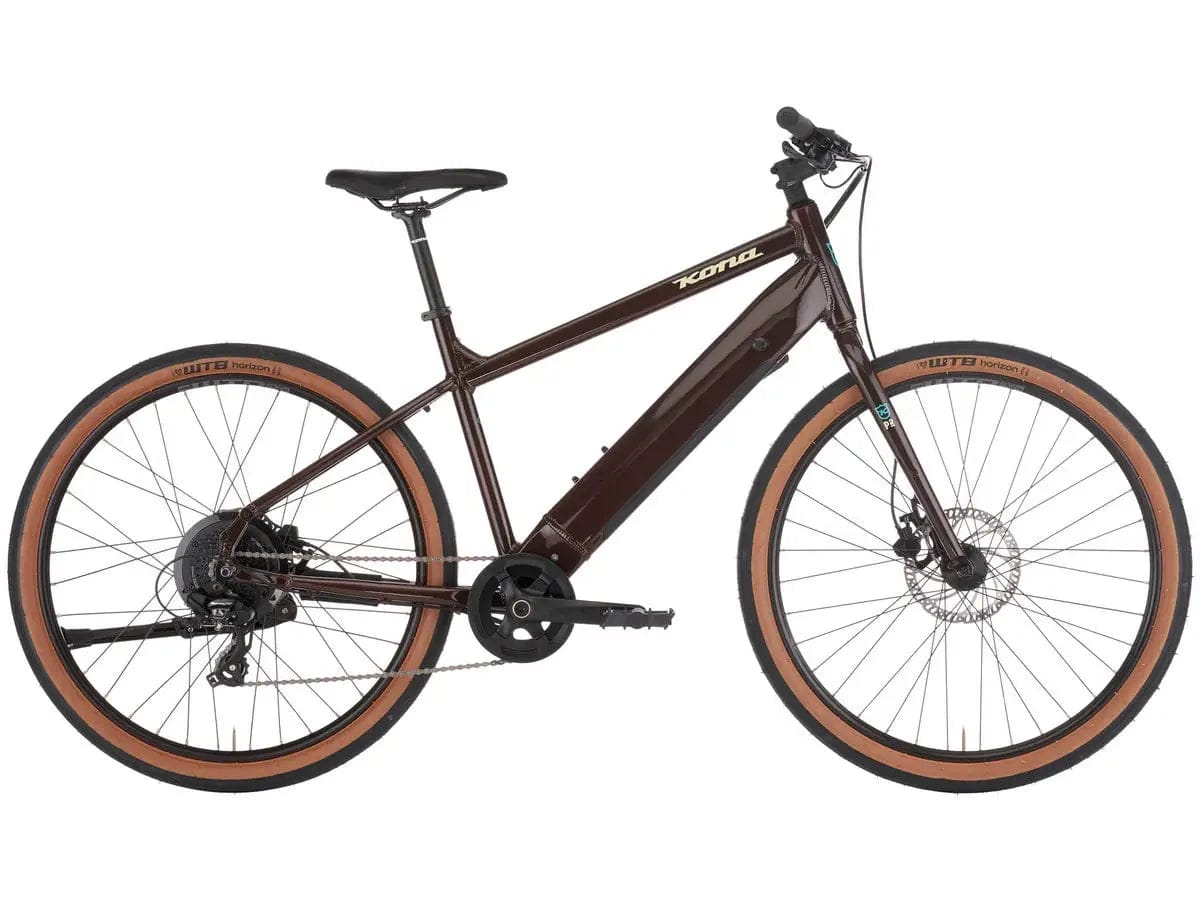

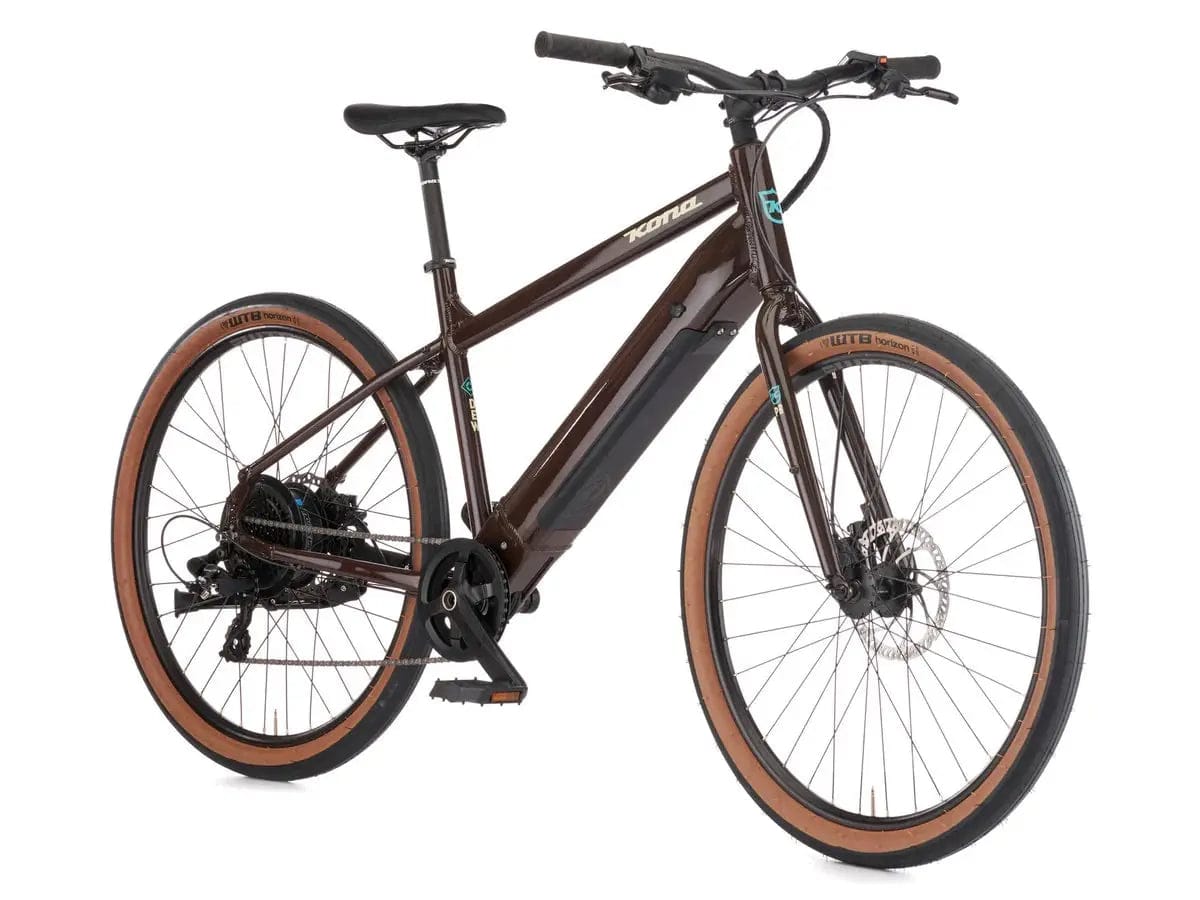

Dew HD - Electric
Hub drive electric bike seeking ideal rider! Hi! My name is Dew HD! I’m affordable, super fun, stylish, extremely practical, easy-riding, helpful, full of light. You: loathe climbing hills, love (pedal) assistance, enjoy smiling, like going fast, don’t love working that hard if you don’t have to, need a companion to carry your groceries/beer/kids/dog/gear to and from wherever. Let’s fall in love!
| B36DWH01 |
| B36DWH03 |
| B36DWH05 |
| B36DWH06 |
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME MATERIAL | Kona 6061 Aluminum Butted |
| SIZES | S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | Kona Project Two Aluminum Disc |

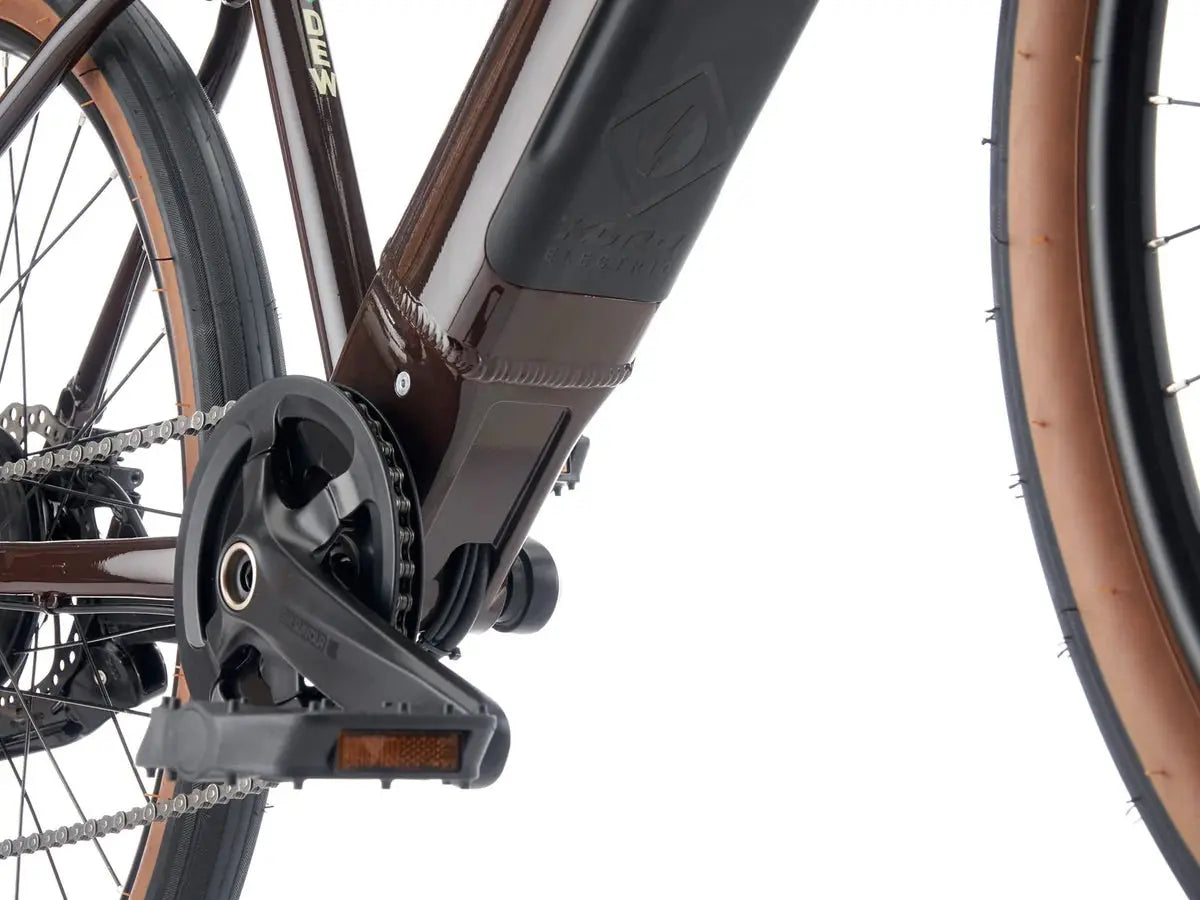

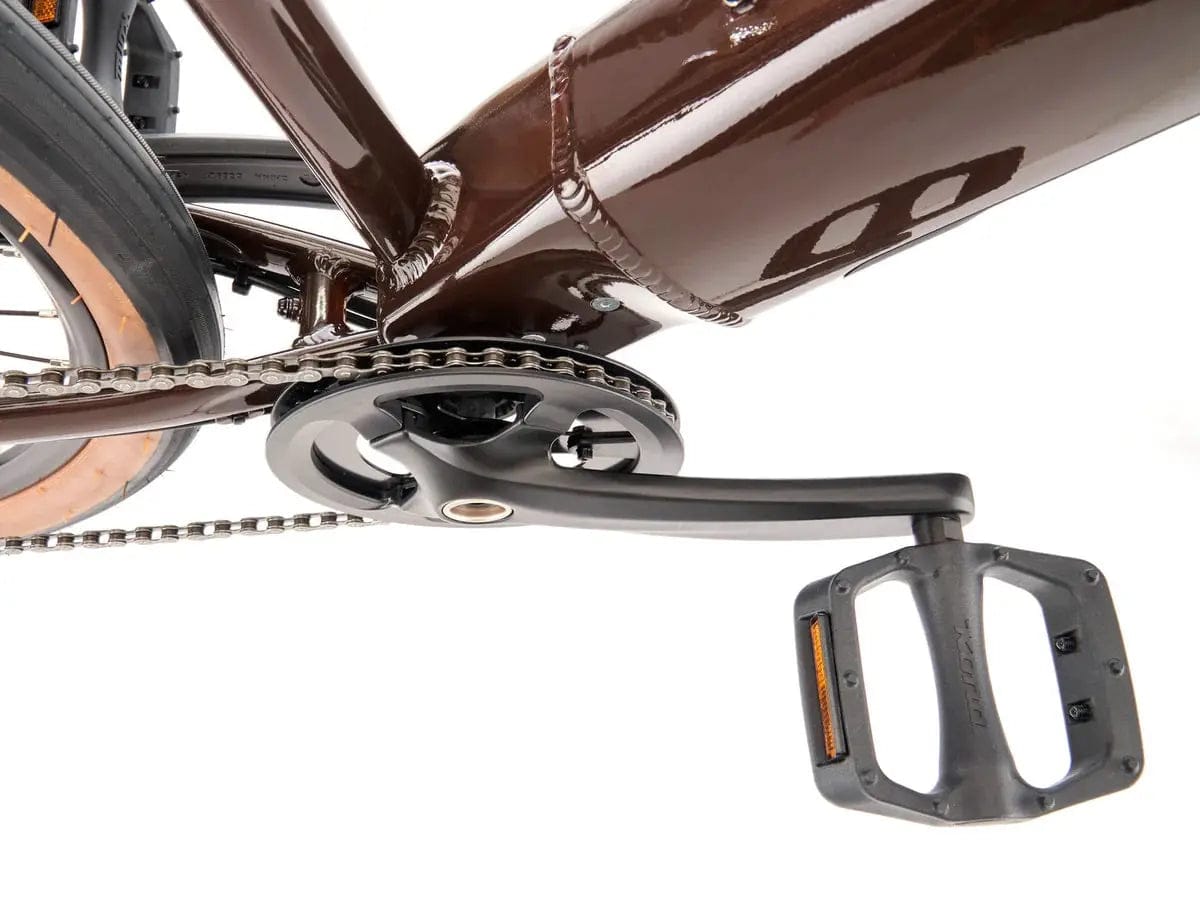

| CRANKARMS | Suntour |
| CHAINRINGS | 38t |
| B/B | Suntour |
| PEDALS | Kona JS2 |
| CHAIN | KMC Z8.3 |
| CASSETTE | Shimano Altus 11-32t 8spd |
| CHAINGUIDE | n/a |
| F/D | n/a |
| R/D | Shimano TX |
| SHIFTERS | Shimano Altus |
| BRAKE CALIPERS | Tektro HDM275 Hydraulic |
| FRONT BRAKE ROTOR | Tektro TR180 180mm |
| REAR BRAKE ROTOR | Tektro TR180 180mm |

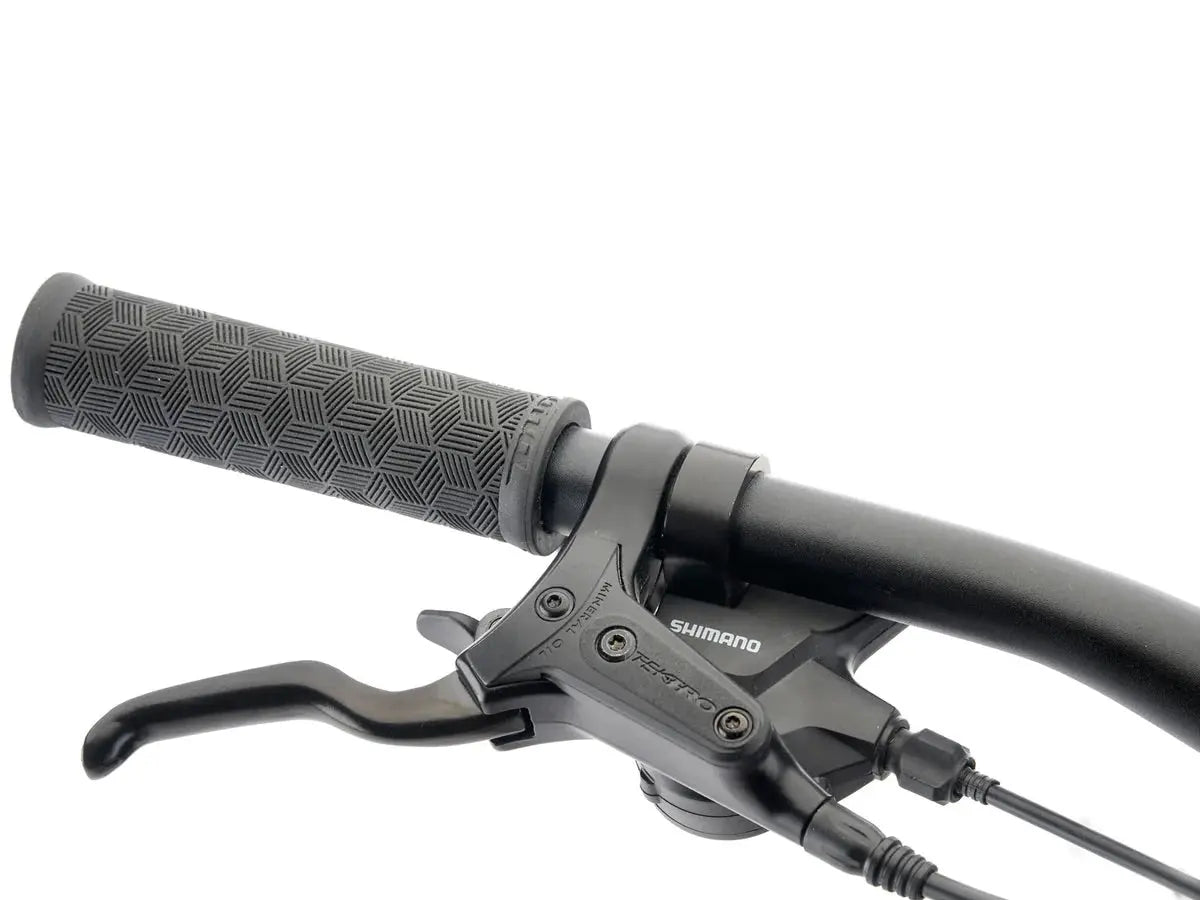

| BRAKE LEVERS | Tektro HDM275 Hydraulic |
| HEADSET | Feimin FP-H863 |

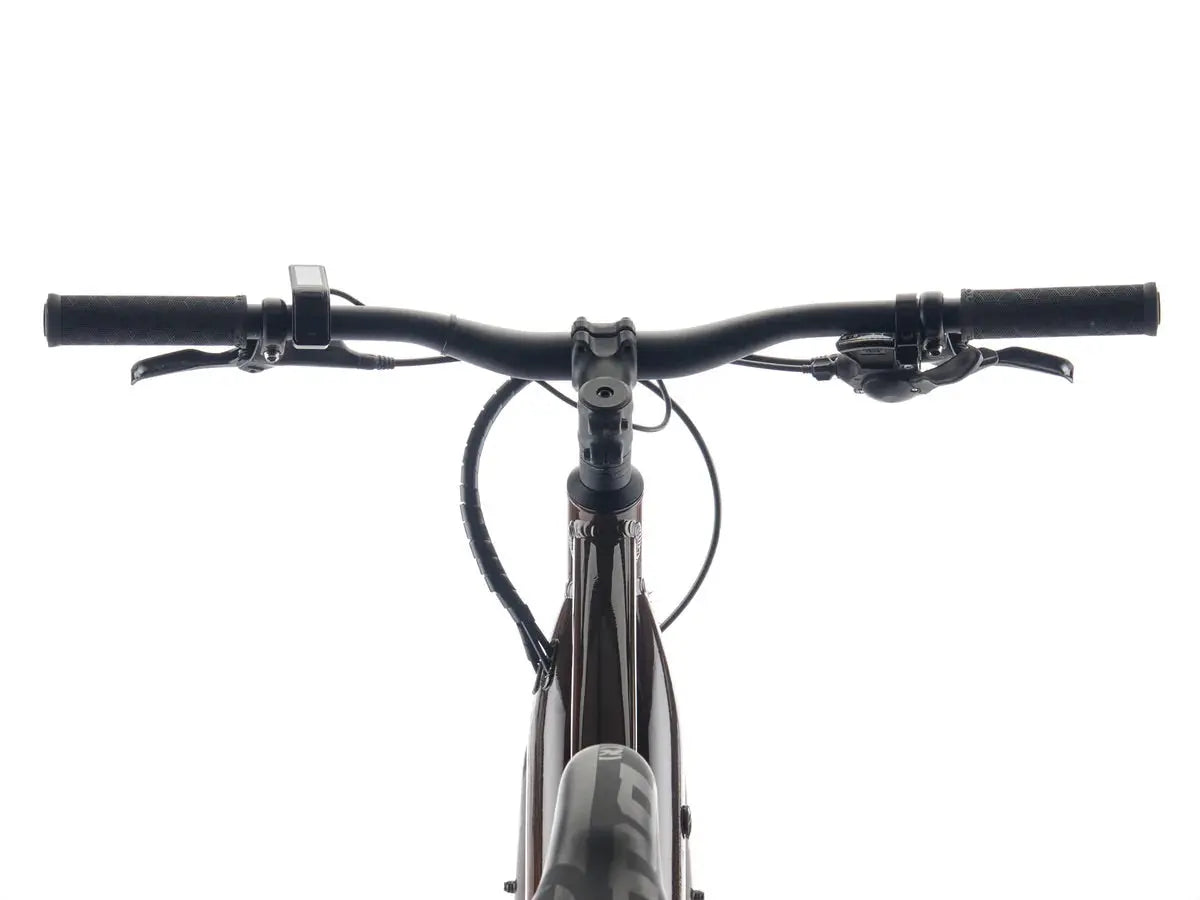

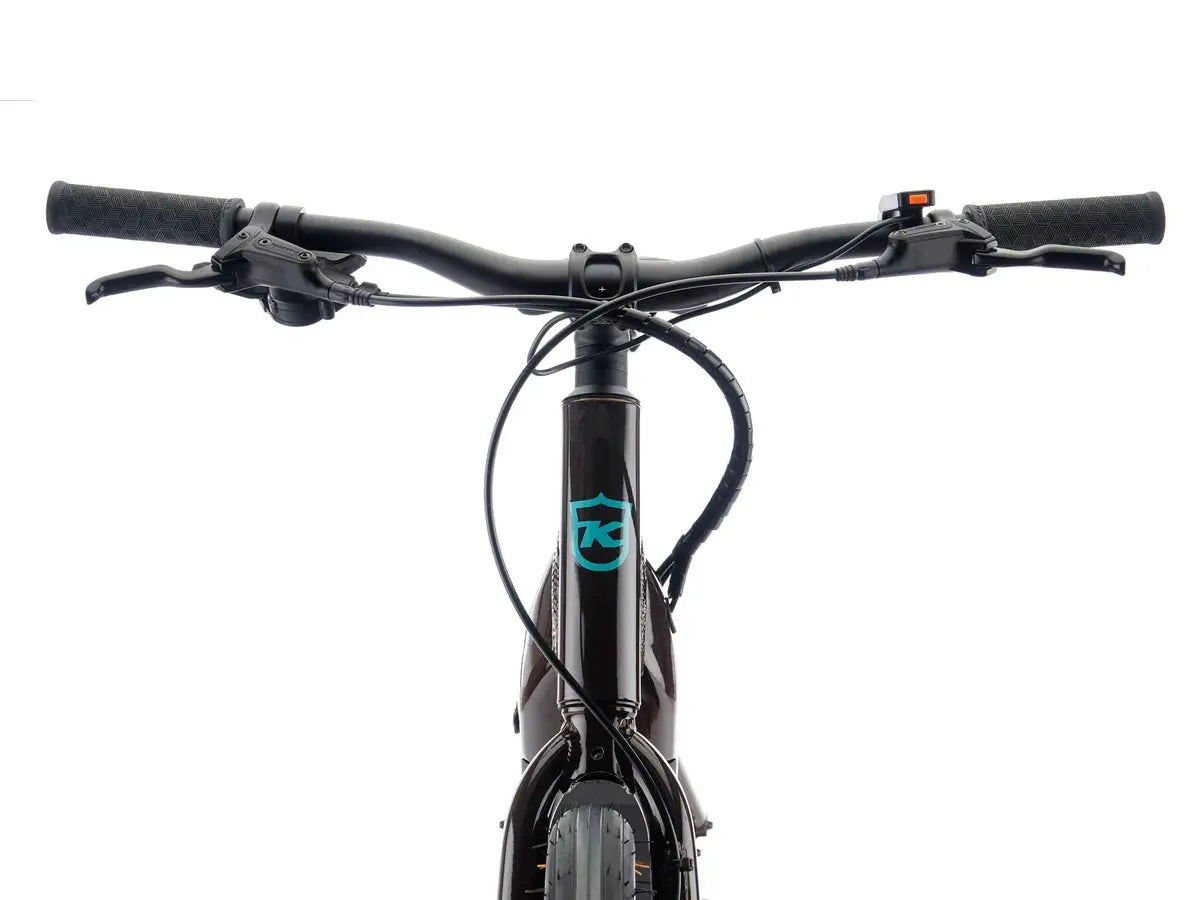

| HANDLEBAR | Kona Aluminum Riser |
| STEM | Kona Control |
| SEATPOST | Kona Commuter 27.2mm |
| SEAT CLAMP | Kona Clamp |
| GRIPS | Kona Key Grip Slip on |
| SADDLE | Kona Commuter |
| FRONT HUB | Shimano 100x9mm |

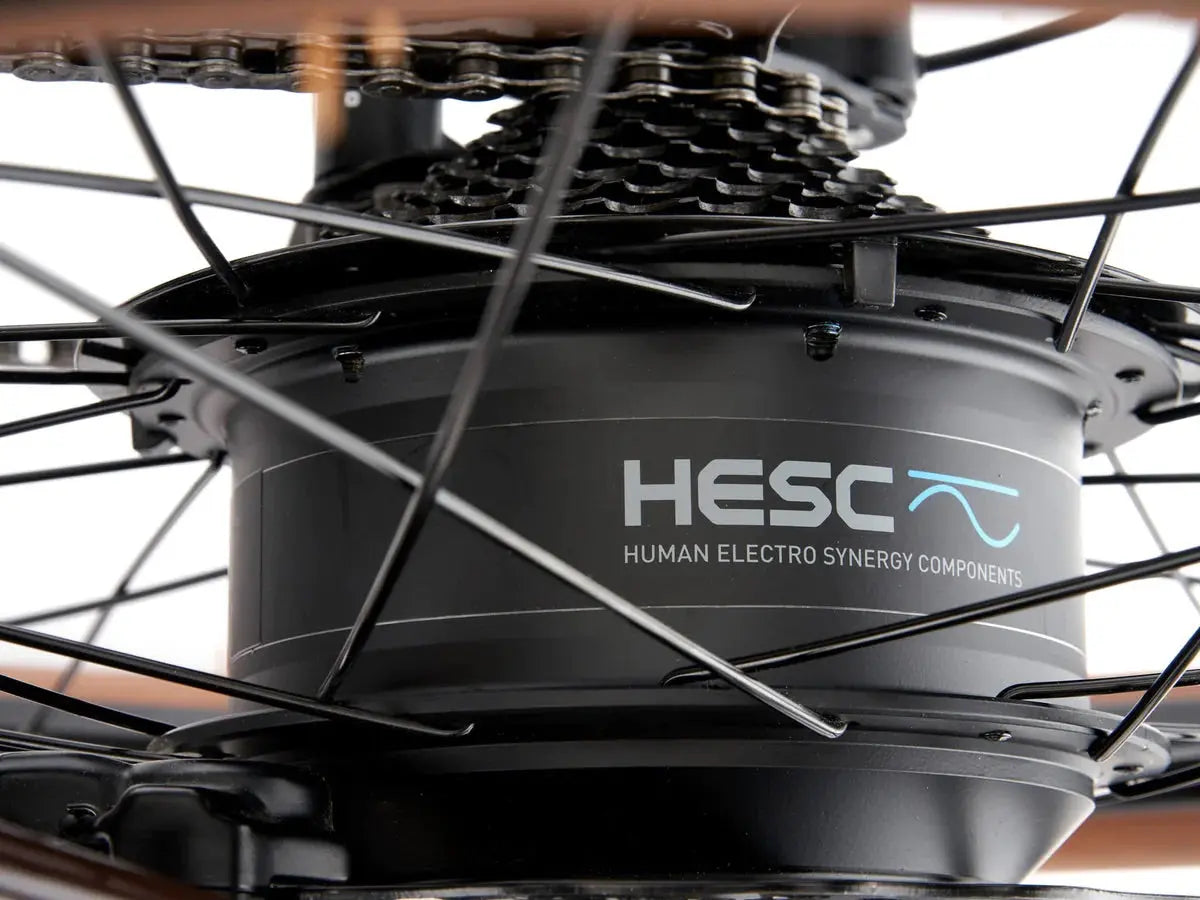

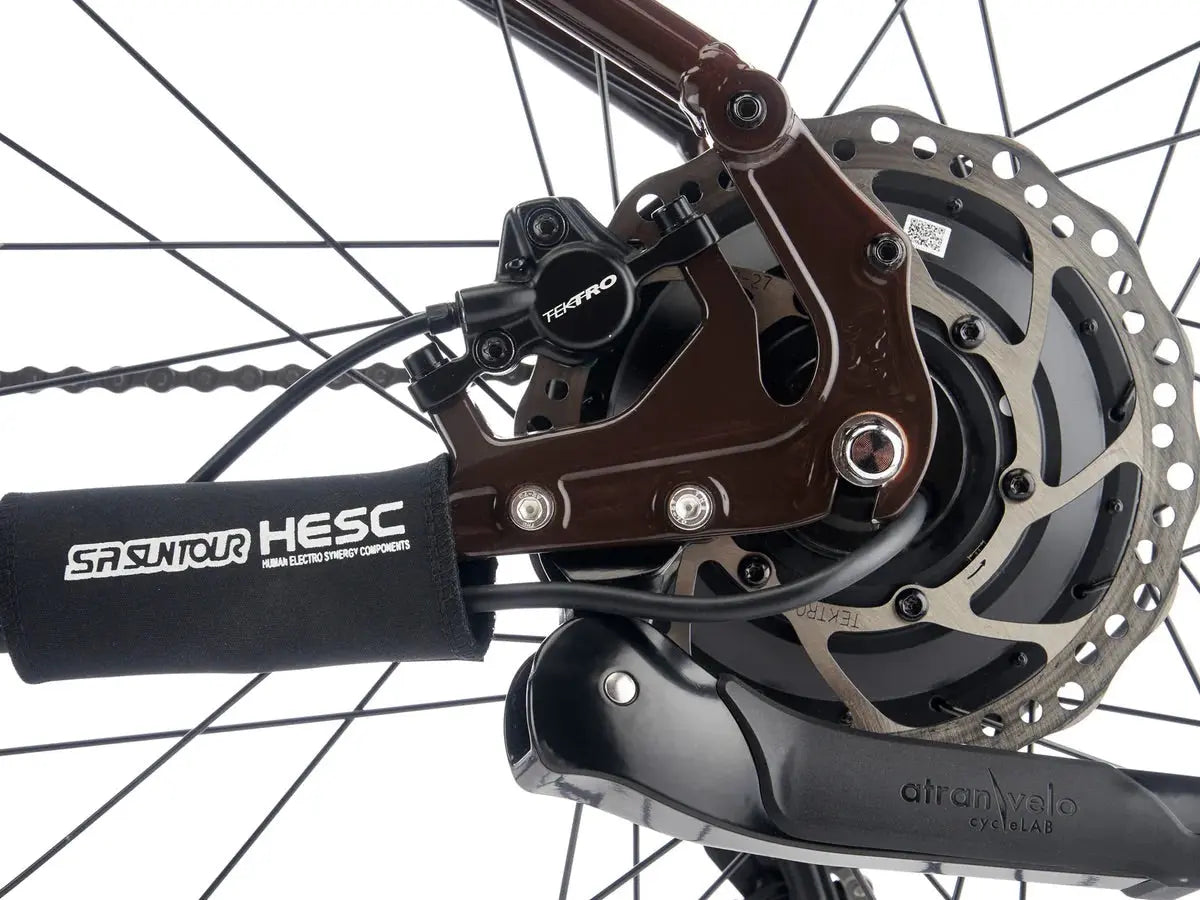

| REAR HUB | SR Suntour HD 20MPH |
| SPOKES | Stainless Black 14g/13g |
| RIMS | WTB SX19 |
| FRONT TIRE | WTB Horizon Comp 650x47c |
| REAR TIRE | WTB Horizon Comp 650x47c |
| DRIVEUNIT | SR Suntour HD 20MPH |
| BATTERY | Phylion 418Wh |

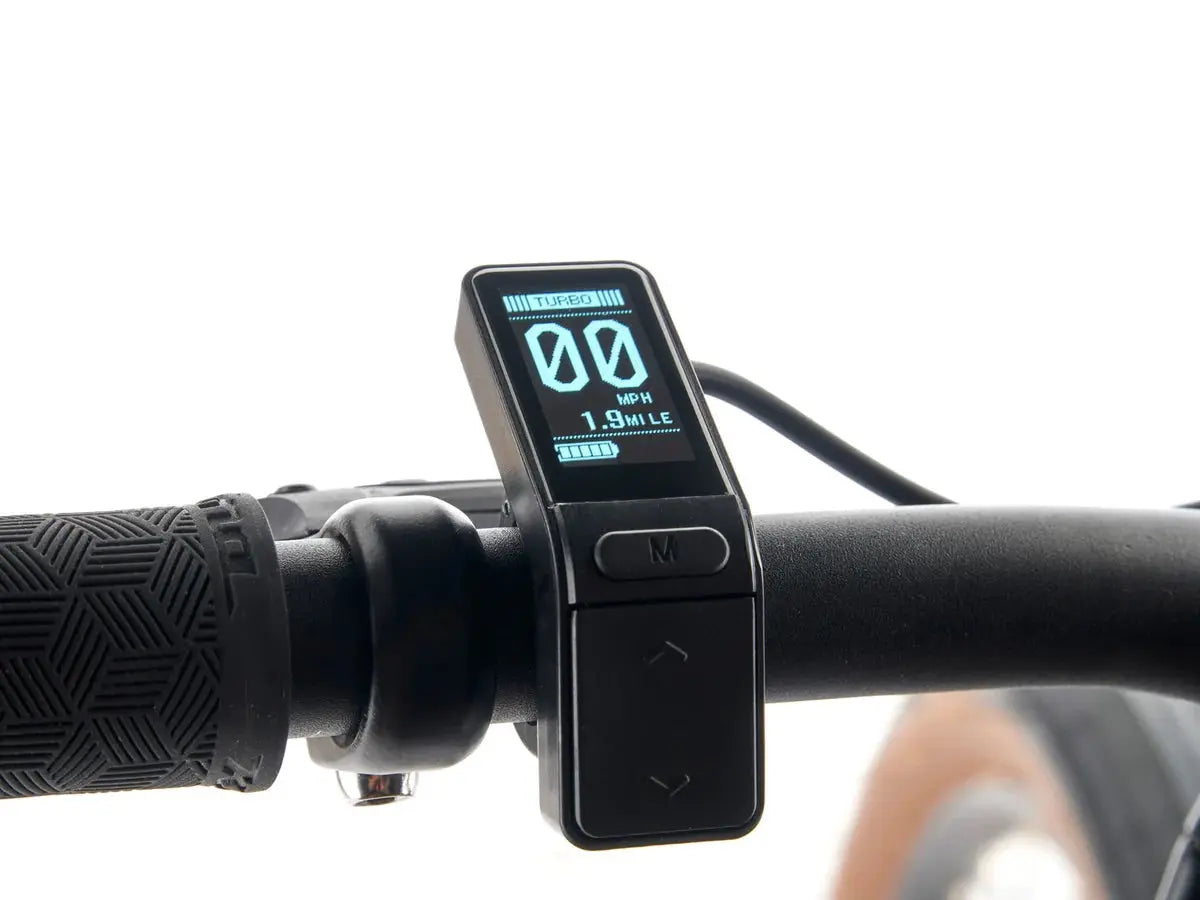

| DISPLAY | SR Suntour OLED Display |
| CHARGER | Phylion 2A |

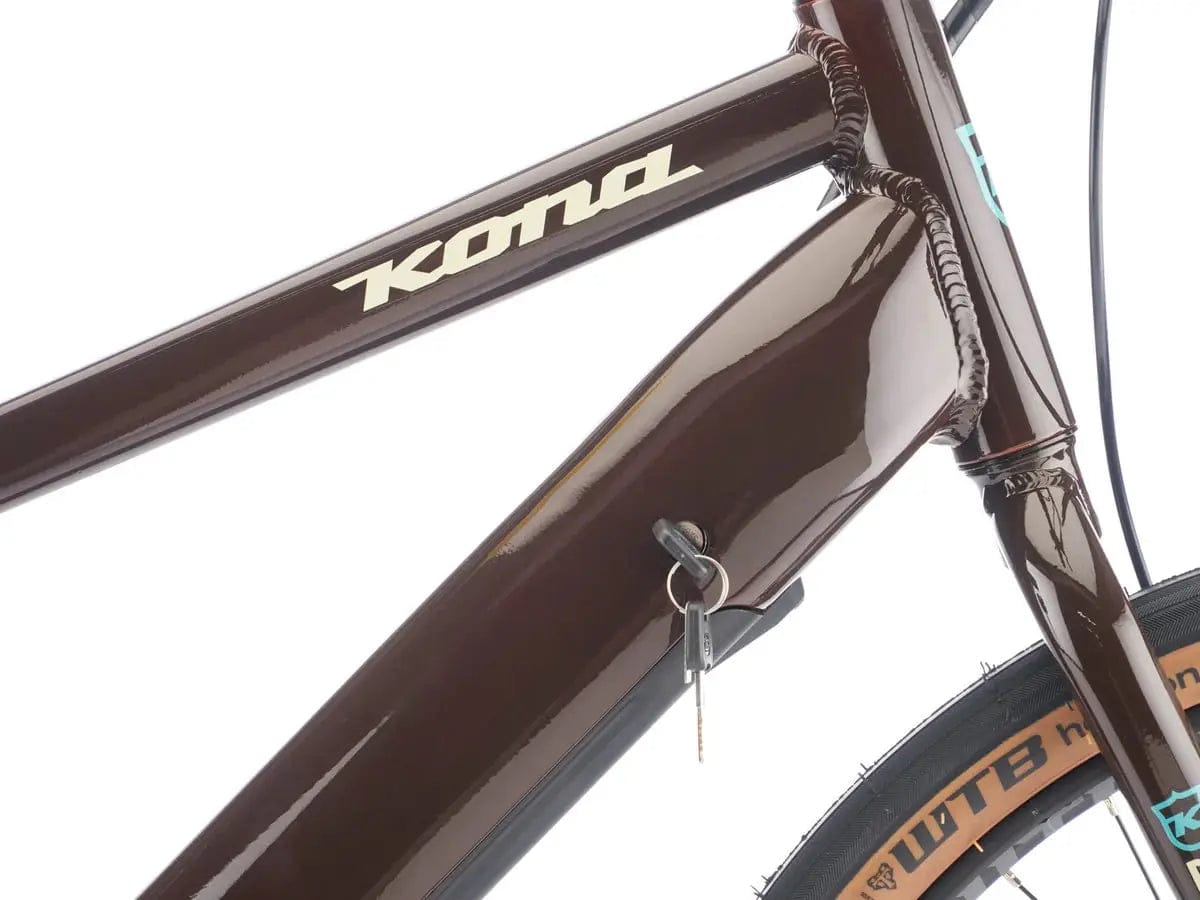

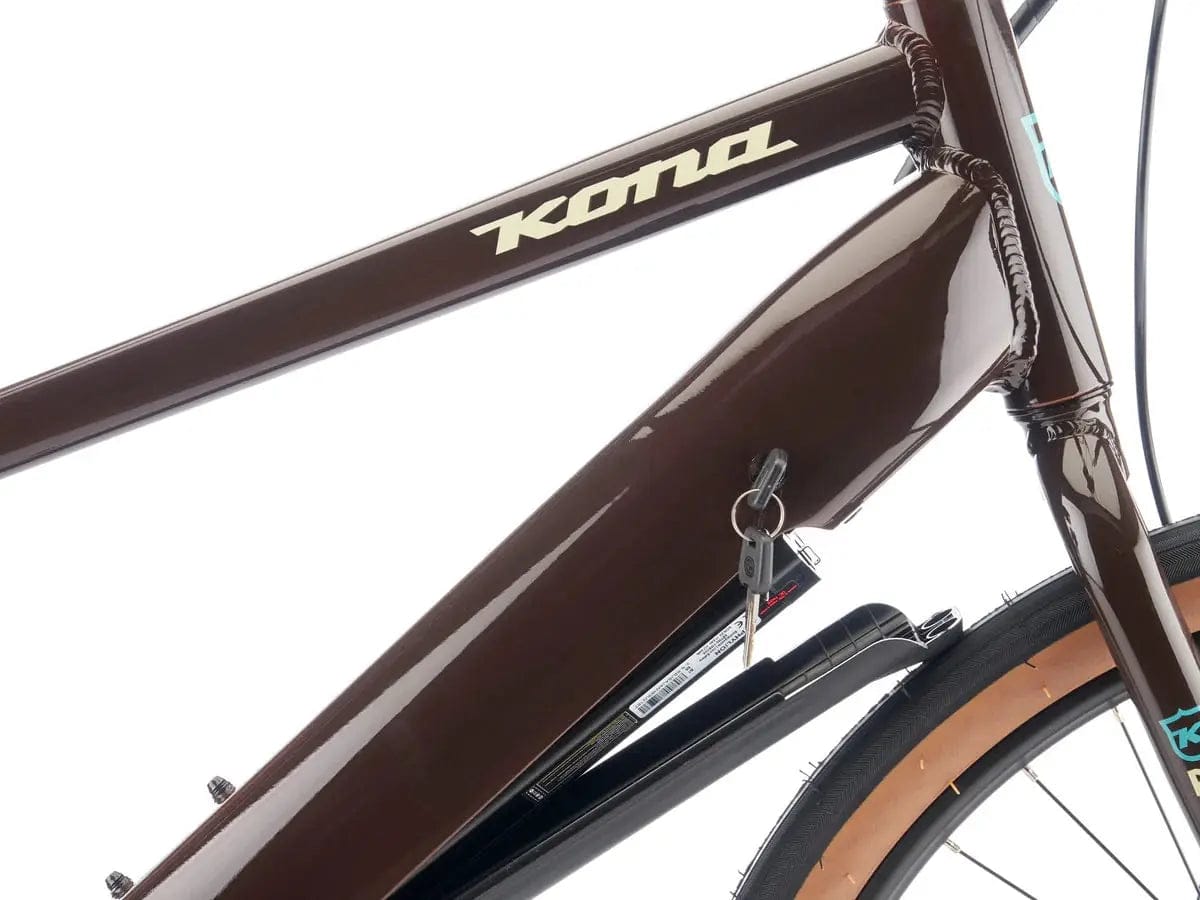

| BATTERYLOCK | SR Suntour |
| PAINT COLOR | Gloss Thunder w/ Sandal & Eris Decals |

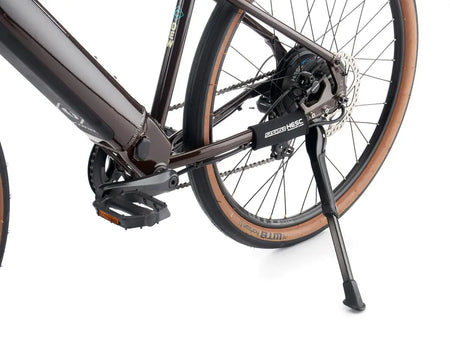

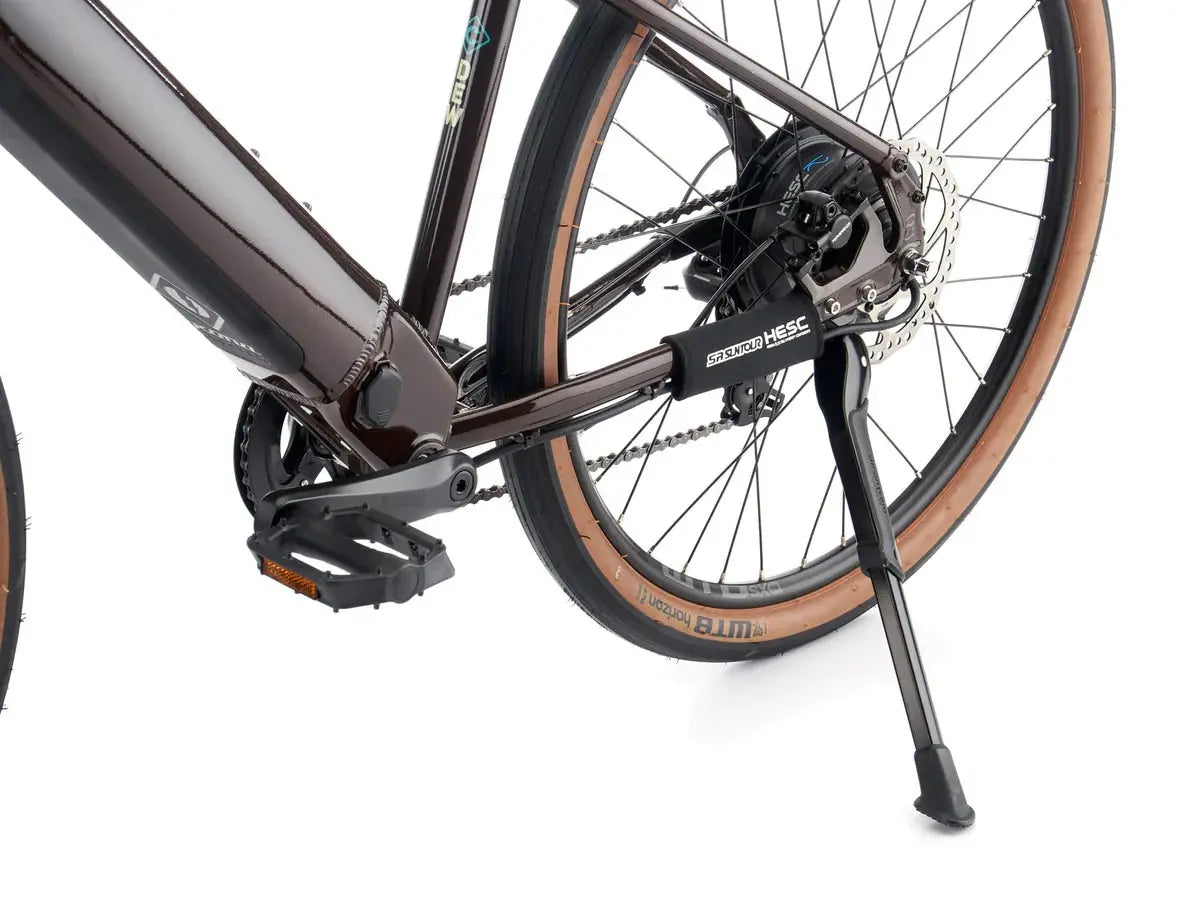

| EXTRAS | Kickstand |
All specifications are subject to change without notice
GEOMETRY
| SIZE | S | M | L | XL | |
| 1 | ST LENGTH | 420 | 470 | 520 | 580 |
| 2 | TT LENGTH | 550 | 597 | 636 | 686 |
| 3 | REACH | 398 | 423 | 439 | 465 |
| 4 | STACK | 568 | 606 | 643 | 681 |
| 5 | STANDOVER | 685 | 720 | 756 | 797 |
| 6 | HT ANGLE | 70.0 | 70.0 | 70.0 | 70.0 |
| 7 | HT LENGTH | 145 | 185 | 225 | 265 |
| 8 | ST ANGLE | 75.0 | 74.0 | 73.0 | 72.0 |
| 9 | CS LENGTH | 450 | 450 | 450 | 450 |
| 10 | BB DROP | 60 | 60 | 60 | 60 |
| 11 | BB HEIGHT | 282 | 282 | 282 | 282 |
| 12 | WHEELBASE | 1082 | 1121 | 1150 | 1190 |
| 13 | FRONT CENTER | 639 | 677 | 707 | 747 |
| 14 | FORK LENGTH | 409 | 409 | 409 | 409 |
| 15 | FORK OFFSET | 50 | 50 | 50 | 50 |
