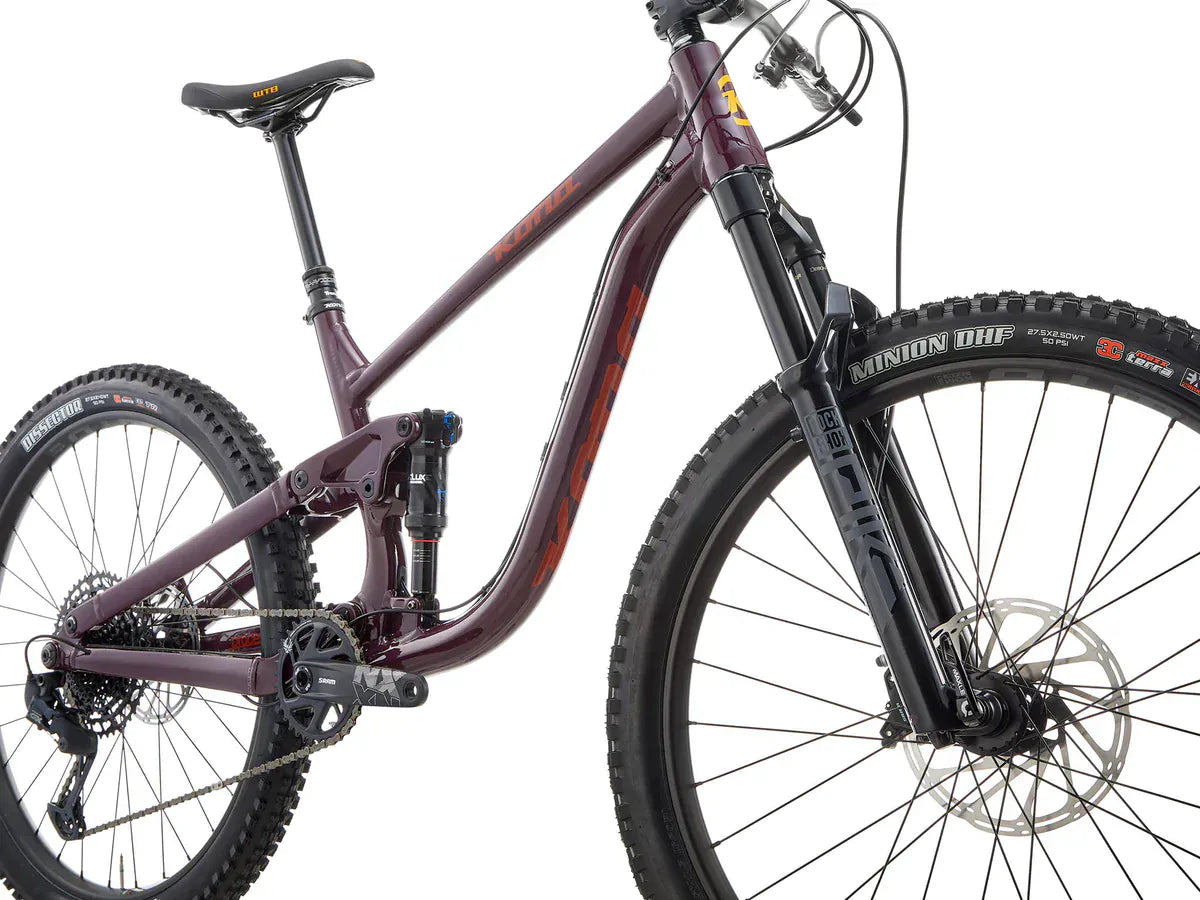

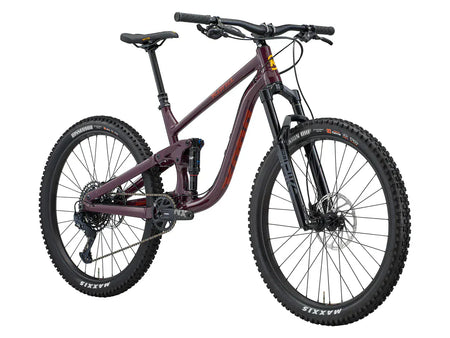

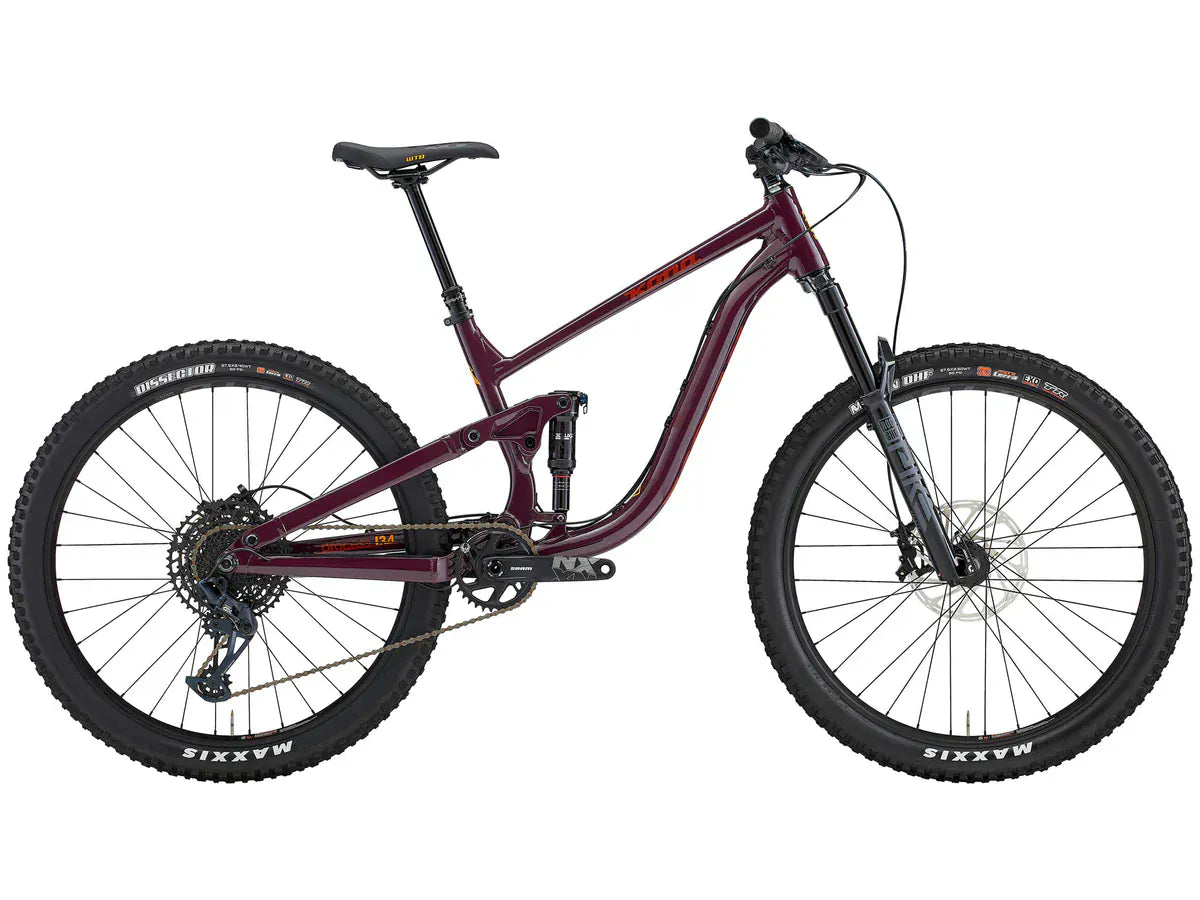

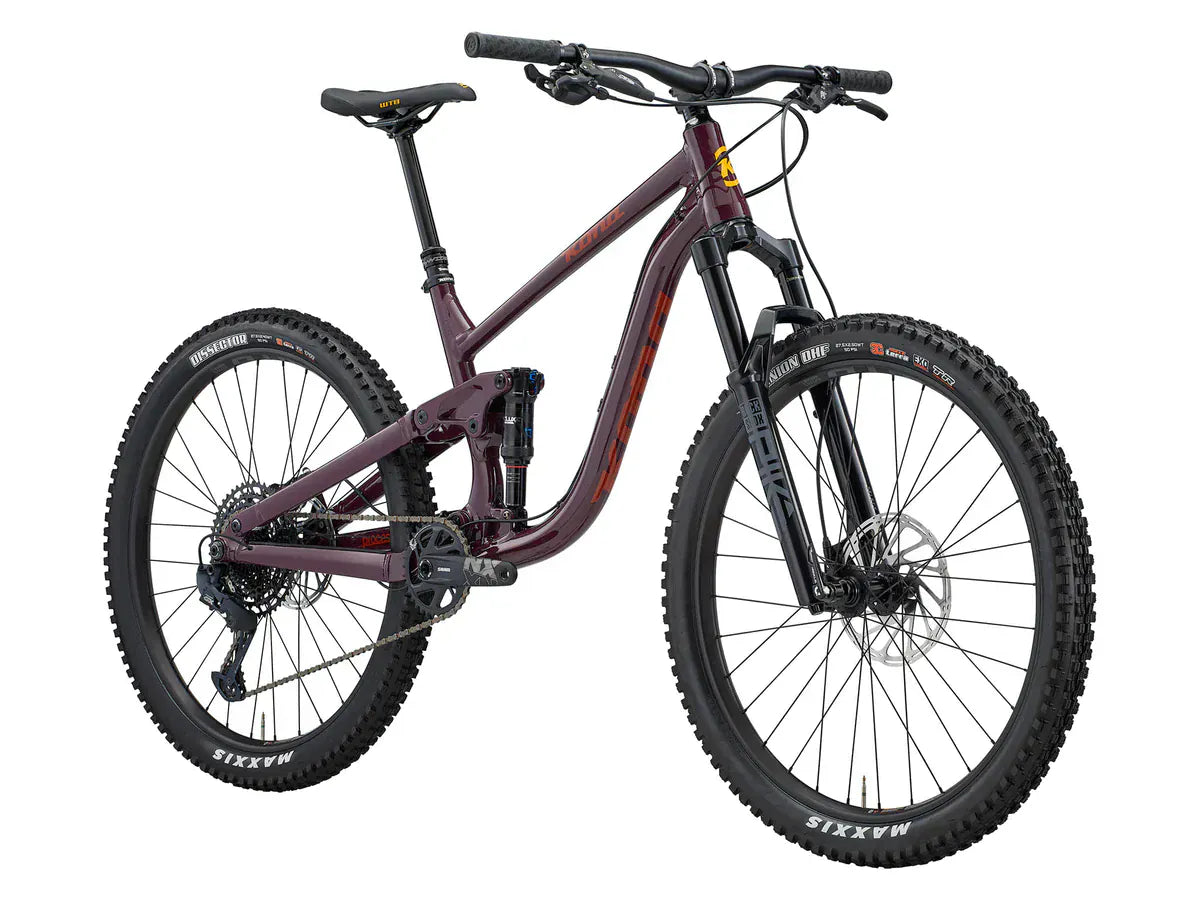

Kona Full Suspension Process 134 DL 27.5 - Full Suspension

Kona Process 134 DL 27.5 - Full Suspension

In stock

$3,076.00 inc. VAT

Product variants

You want a nice bike, but you’ve been hesitating to pull the trigger. What’s the right amount of travel? How can you be sure you’re getting great value? How do you know this bike is the only bike you’ll need? Because you gotta trust the Process, that’s why. The Process 134 DL 27.5 is thoughtfully put together to ensure every box is checked. It features a spec that puts the money where it matters: suspension, brakes, and drivetrain. It also comes in sizes XS-XL ensuring that no matter how tall or short you stand you’ll find a perfect fitting ride. It’s perfection in a bike.

SPECIFICATIONS

FRAME MATERIAL	Kona 6061 Aluminum Butted 134mm Travel
SIZES	XS, S, M, L, XL

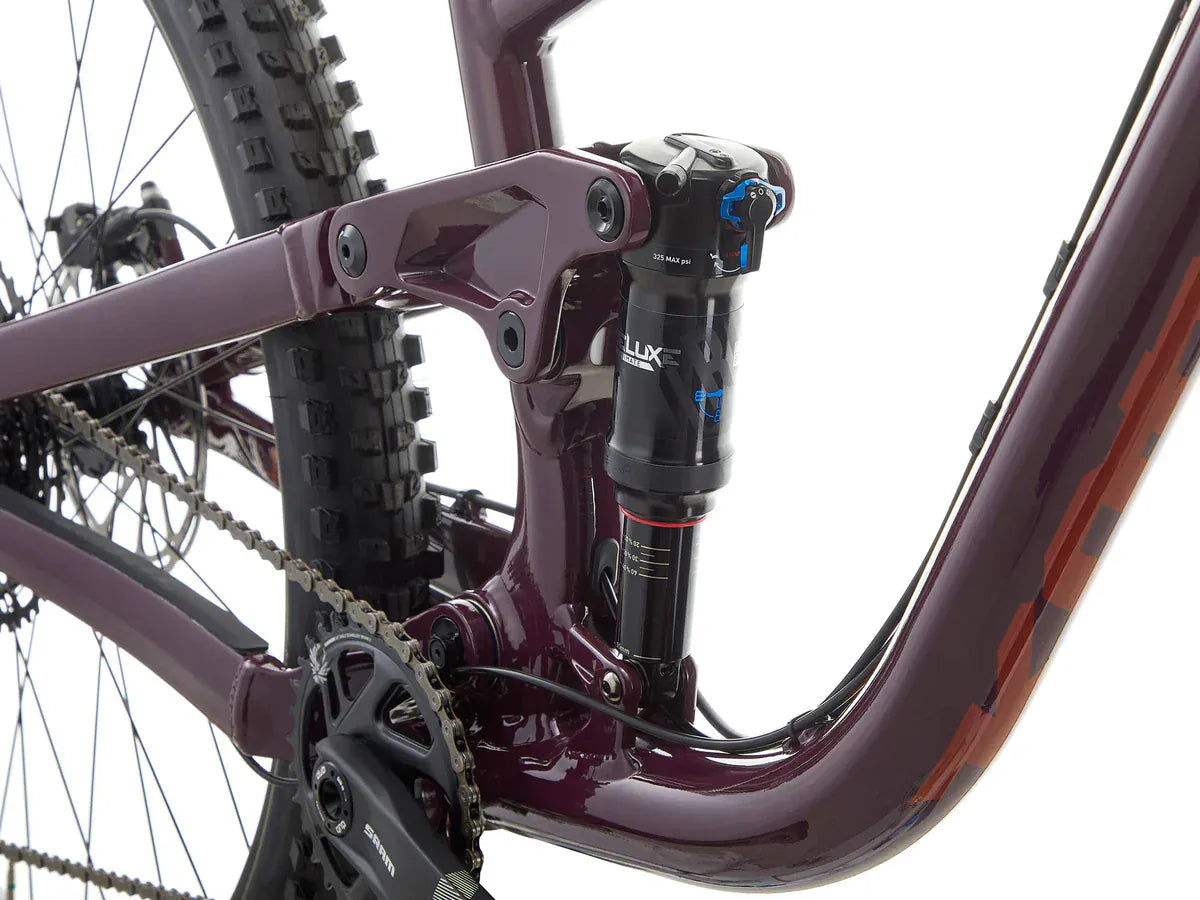

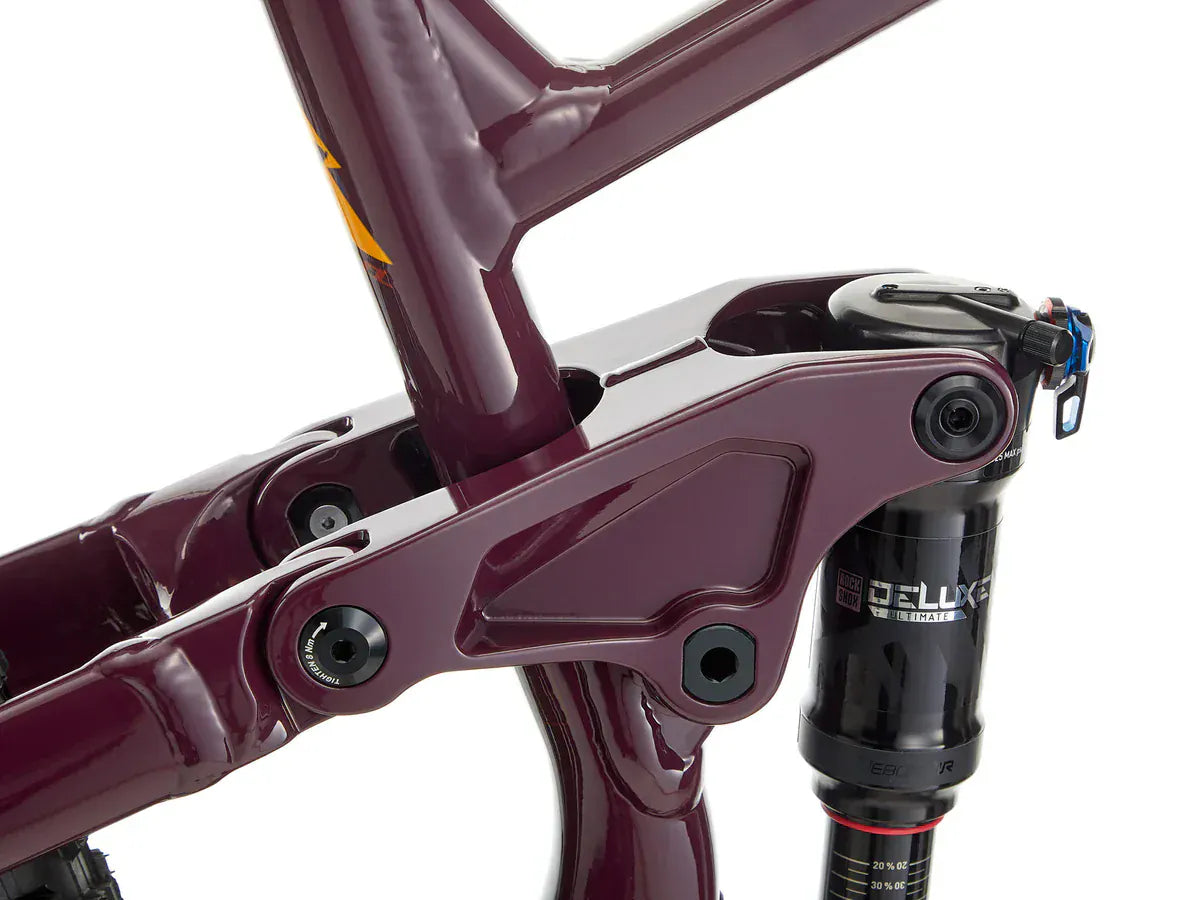

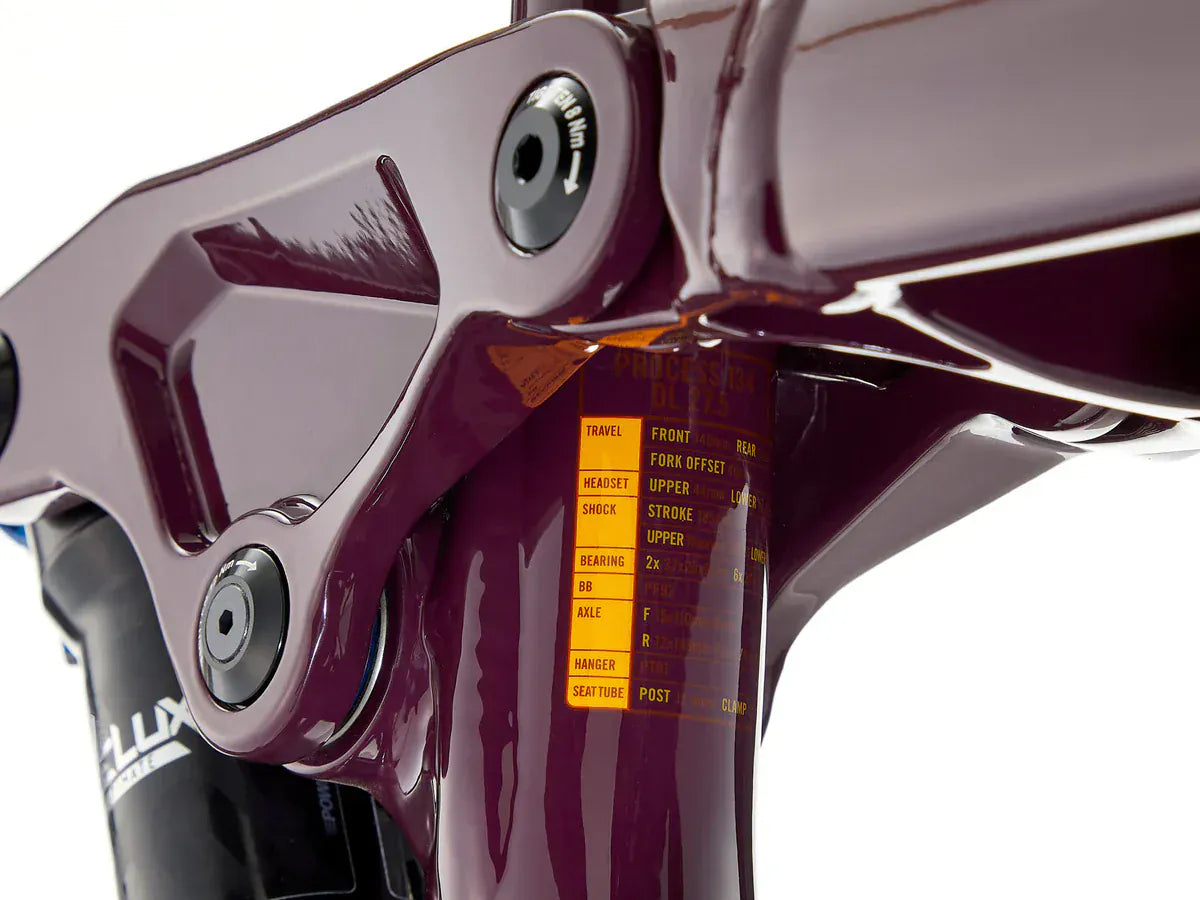

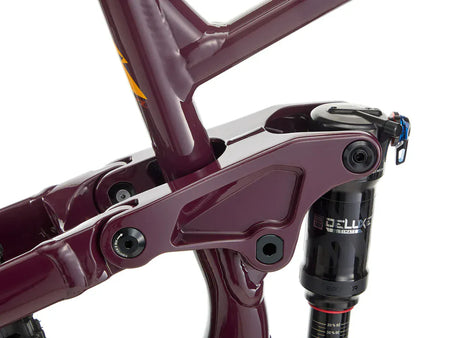

REAR SHOCK	RockShox Deluxe Ultimate Trunnion
FORK	RockShox Pike Select RC Charger DebonAir 140mm Tapered 110mm Spacing
CRANKARMS	SRAM NX Eagle DUB
CHAINRINGS	34t X-Sync Eagle
B/B	SRAM DUB PF92
PEDALS	n/a
CHAIN	SRAM SX-Eagle
CASSETTE	SRAM NX-Eagle 11-50t 12spd
CHAINGUIDE	n/a
F/D	n/a
R/D	SRAM GX-Eagle
SHIFTERS	SRAM NX-Eagle

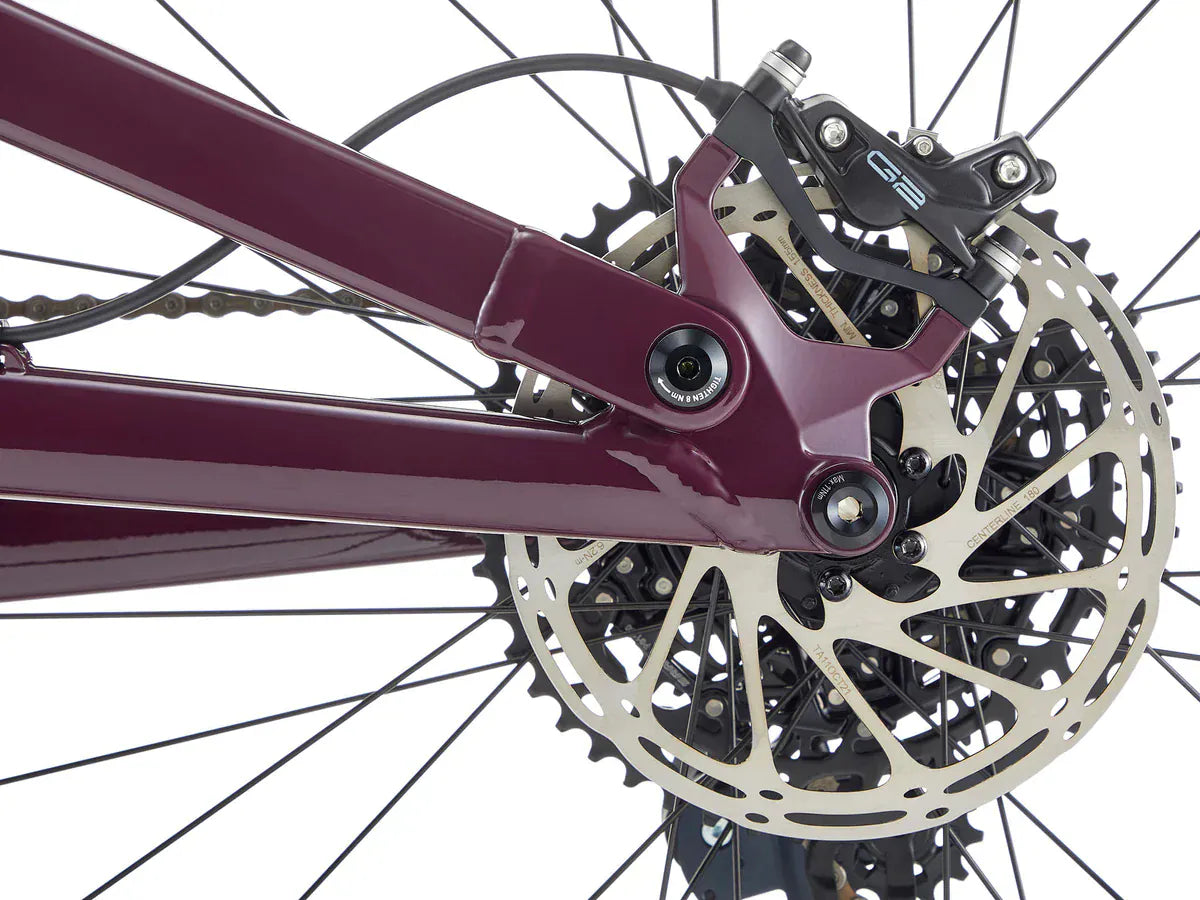

BRAKE CALIPERS	SRAM G2 RS
FRONT BRAKE ROTOR	SRAM Centerline 200mm
REAR BRAKE ROTOR	SRAM Centerline 180mm
BRAKE LEVERS	SRAM G2 RS

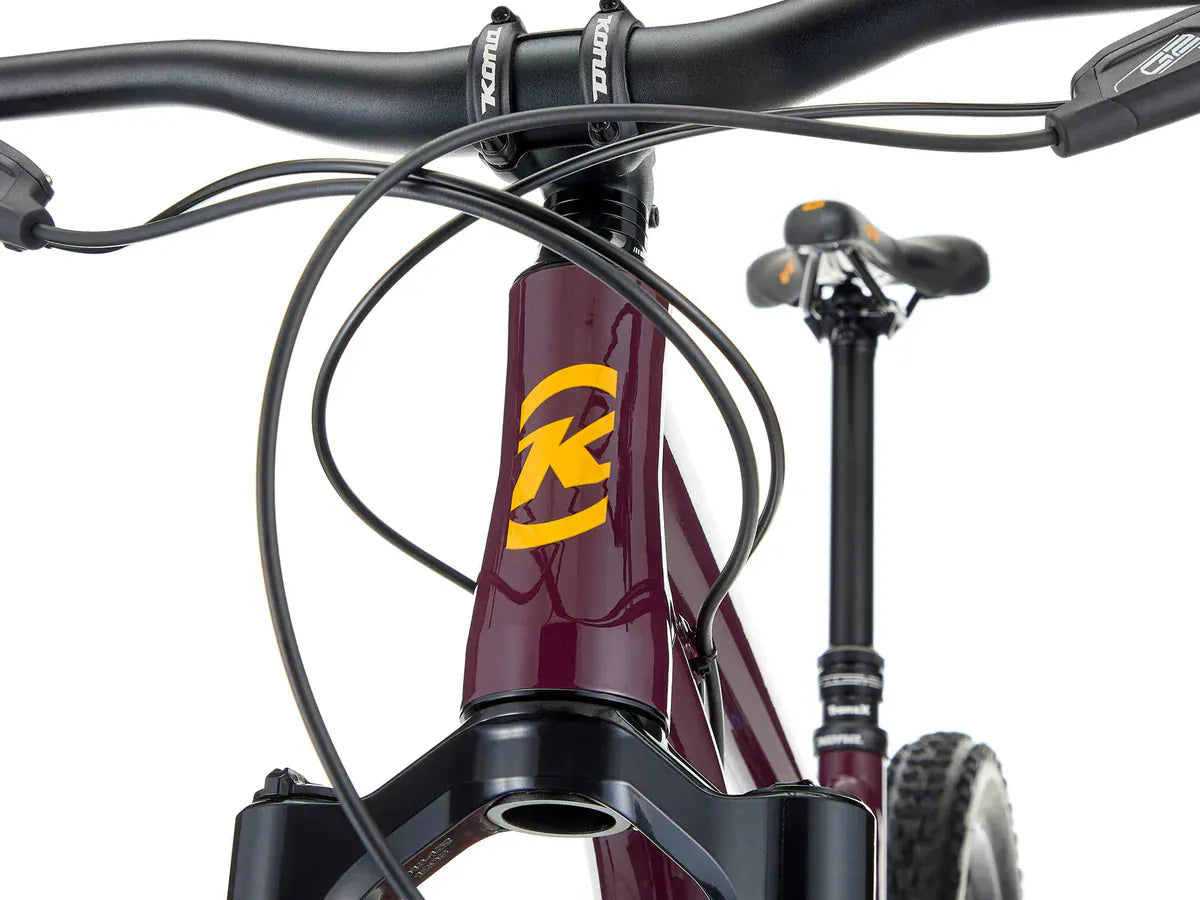

HEADSET	FSA Orbit 1.5 EP ZS
HANDLEBAR	Kona XC/BC 35
STEM	Kona XC/BC 35
SEATPOST	TranzX Dropper +RAD Internal 31.6mm
SEAT CLAMP	Kona Clamp
GRIPS	Kona Key Grip
SADDLE	WTB Volt
FRONT HUB	Formula 110x15mm
REAR HUB	Formula 148x12mm
SPOKES	Stainless Black 14g
RIMS	WTB KOM Team i30 TCS
FRONT TIRE	Maxxis Minion DHF EXO TR 3C 27.5x2.5" WT
REAR TIRE	Maxxis Dissector EXO TR 3C 27.5x2.4" WT
PAINT COLOR	Gloss Plum w/ Oxy Fire Decals
EXTRAS	n/a

All specifications are subject to change without notice

GEOMETRY

	SIZE	XS	S	M	L	XL
1	ST LENGTH	360	385	410	450	485
2	TT LENGTH	537	567	596	625	664
3	REACH	400	425	450	475	510
4	STACK	585	595	605	615	626
5	STANDOVER	674	687	712	712	711
6	HT ANGLE	66	66	66	66	66
7	HT LENGTH	116	127	138	149	160
8	ST ANGLE	76.8	76.6	76.5	76.3	76.2
9	CS LENGTH	425	425	425	425	425
10	BB DROP	12	12	12	12	12
11	BB HEIGHT	343	343	343	343	343
12	WHEELBASE	1131	1160	1190	1219	1259
13	FRONT CENTER	706	735	765	794	834
14	FORK LENGTH	532	532	532	532	532
15	FORK OFFSET	46	46	46	46	46
