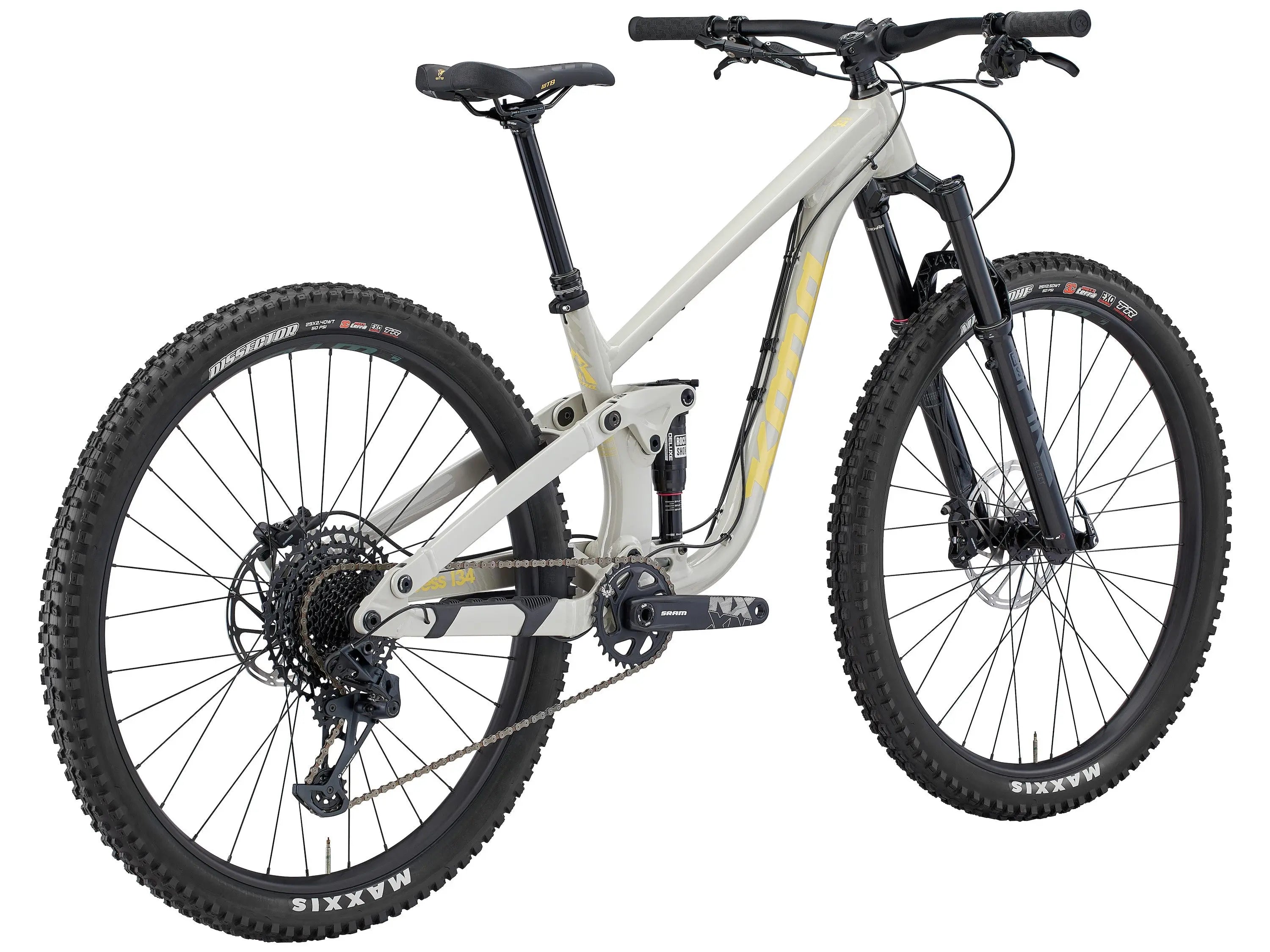

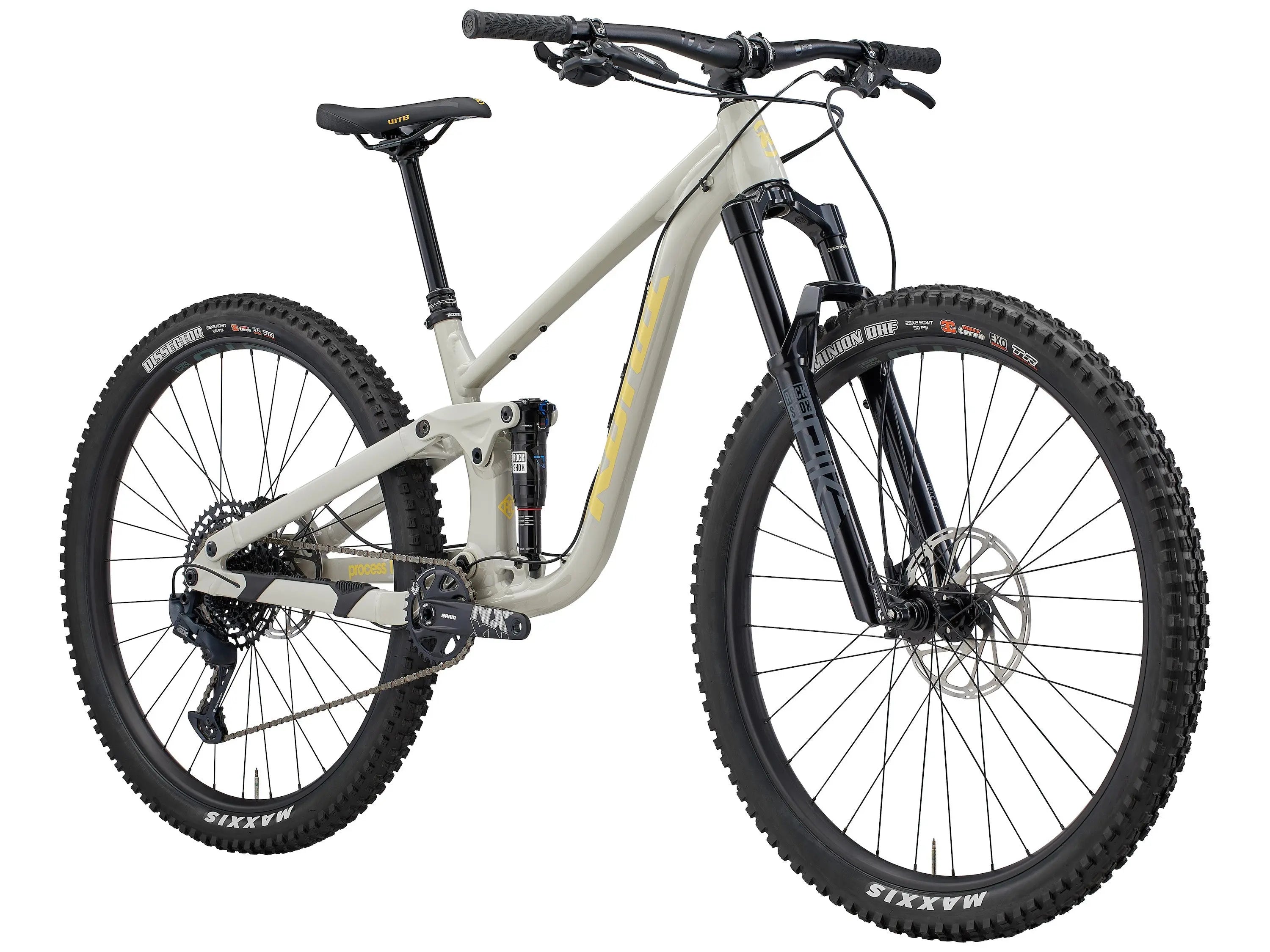

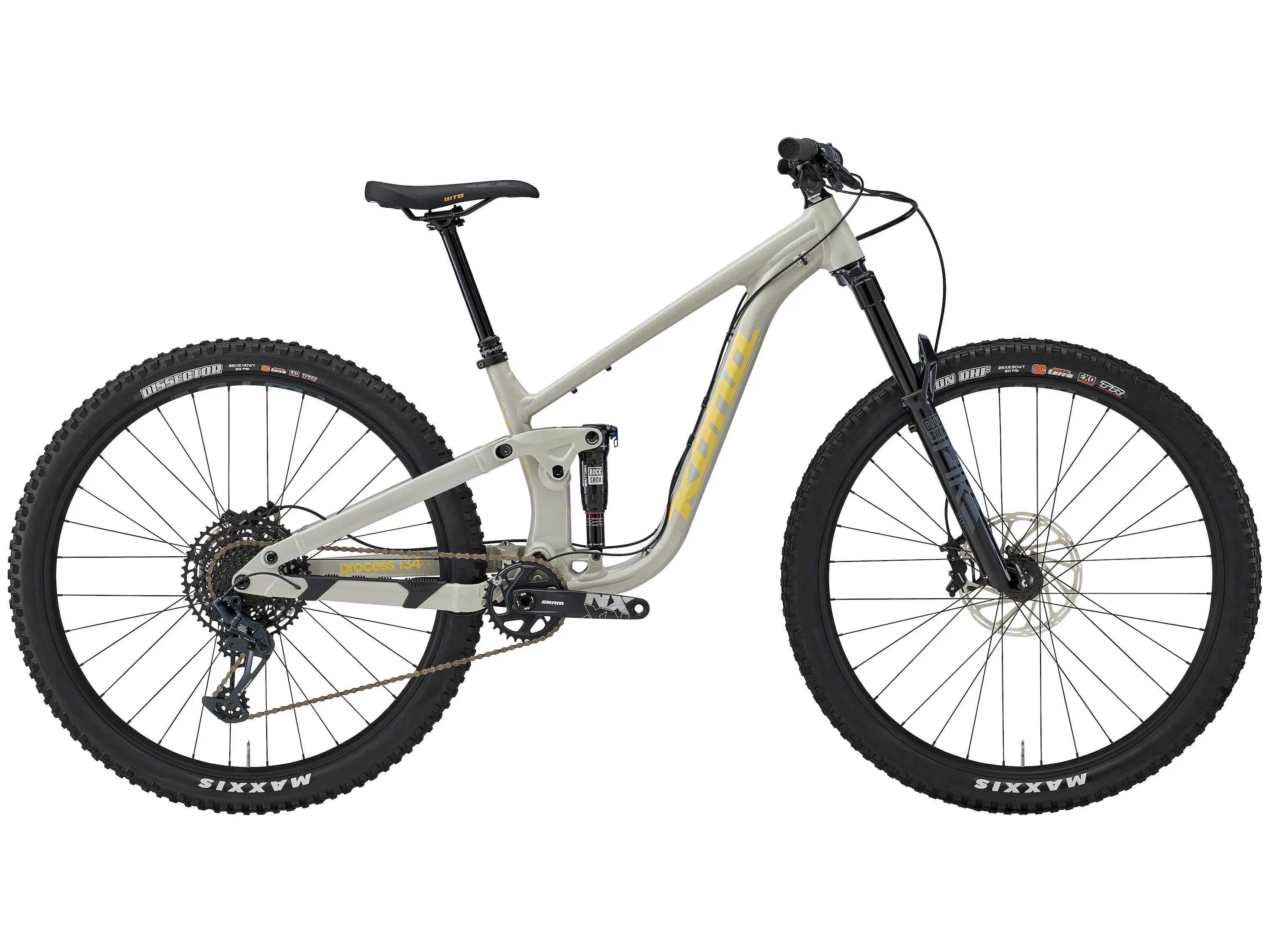

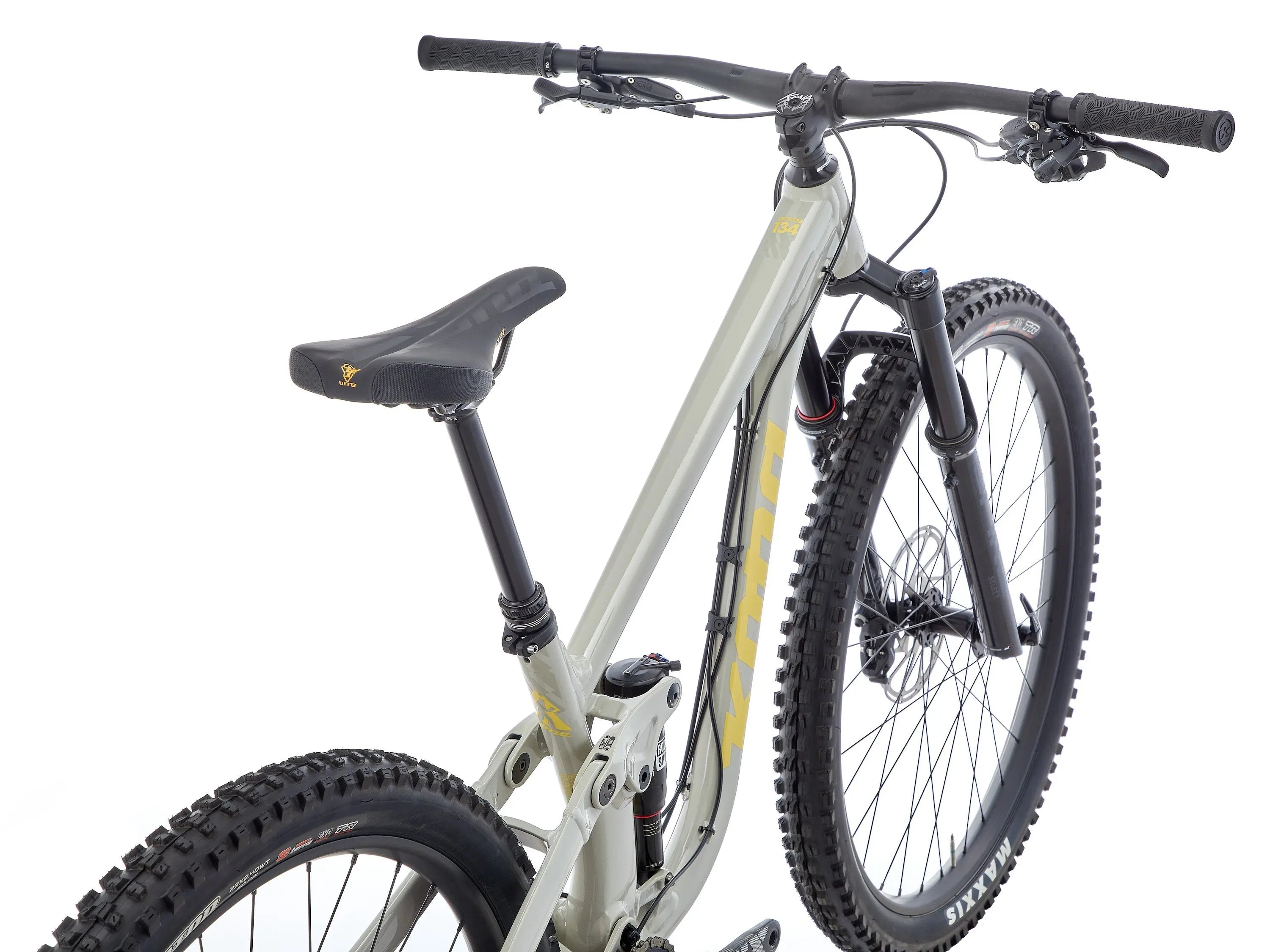

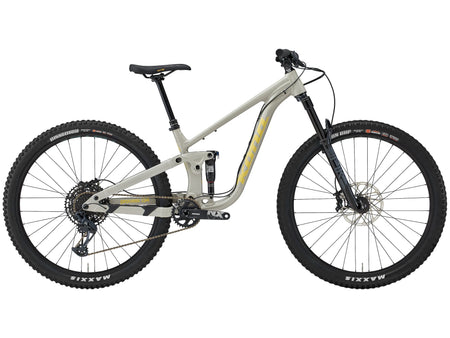

Process 134 DL G3 - Full Suspension
Why not ride every day? The Process 134 DL is the bike you want if you’re thinking of telling The Man where to stick his 401k contribution. Yeah, we already played this riff with the 153 DL, but the song remains the same, just with a touch less suspension travel but the exact same anti-establishment attitude. Mullet-capable, sweet handling geometry, rugged aluminum frame, apocalypse (or sustained unemployment) ready pivot hardware keep you rolling day in, day out. Durable, dependable, and so damn fun that you’ll want to ride every single day. Which was kinda the point of quitting the day job in the first place, right?
SPECS & GEOMETRY
SPECIFICATIONS
| Frame Material | Kona 6061 Aluminum Butted 134mm Travel |
| Sizes | S, M, L, XL |

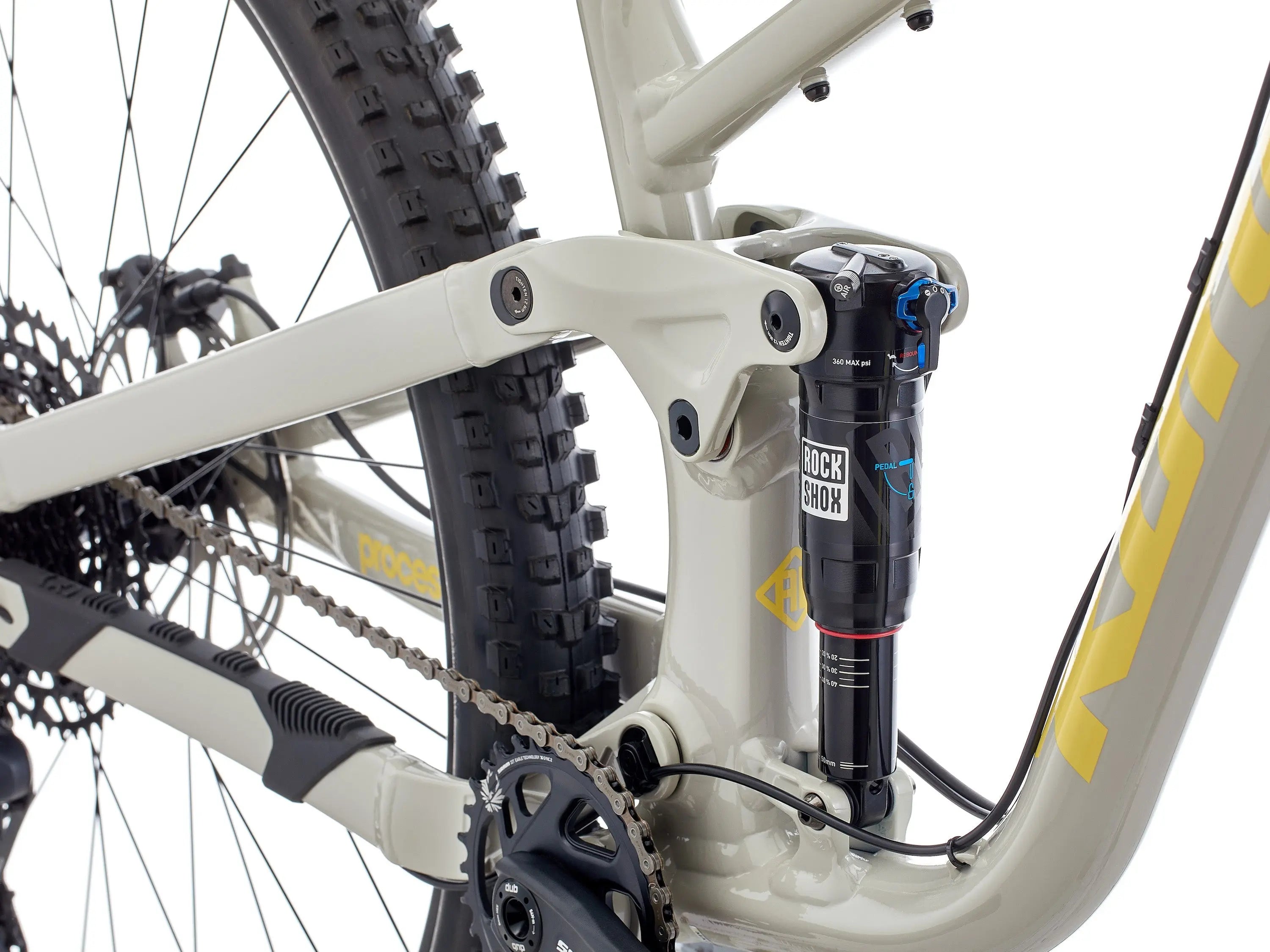

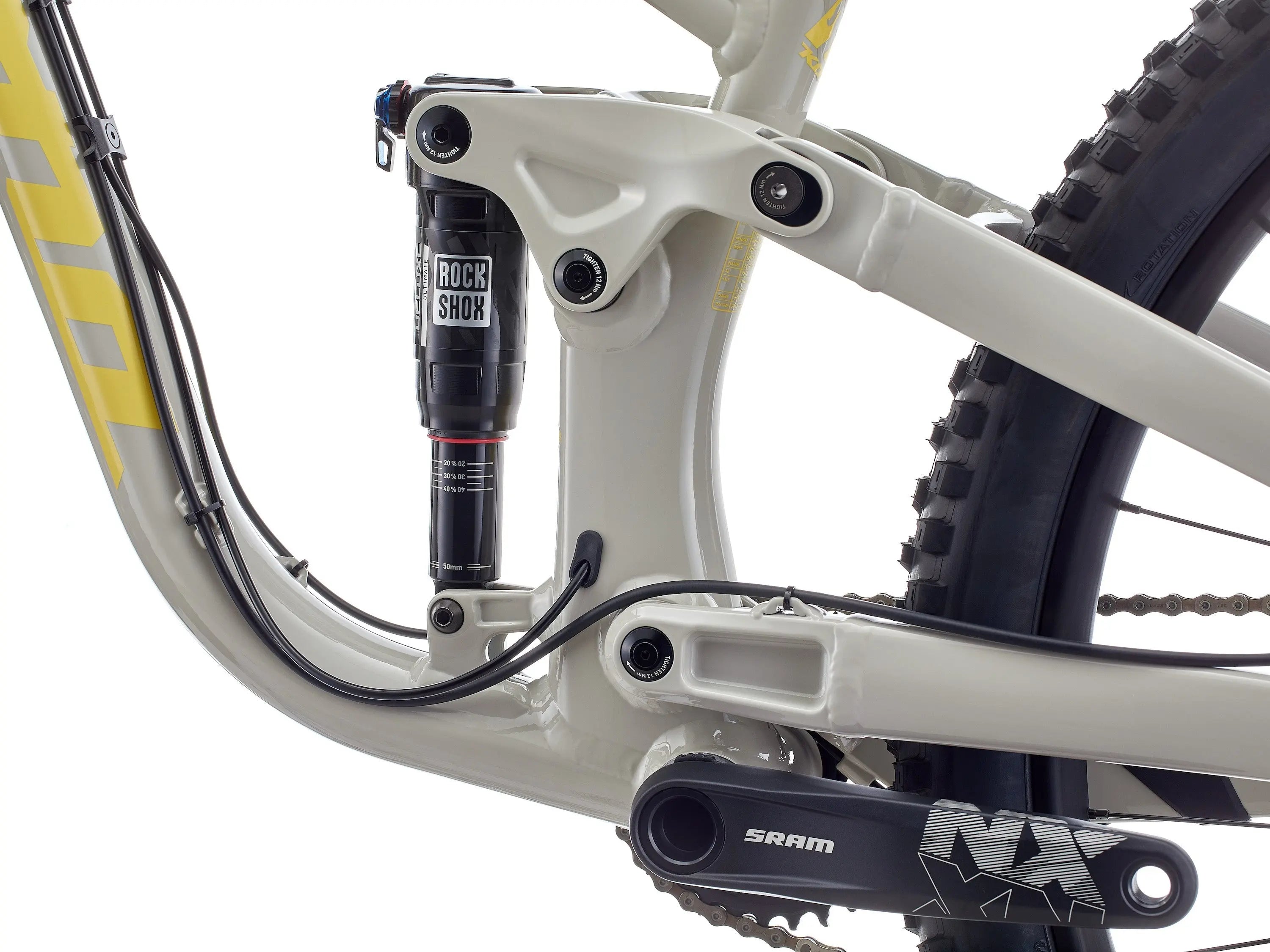

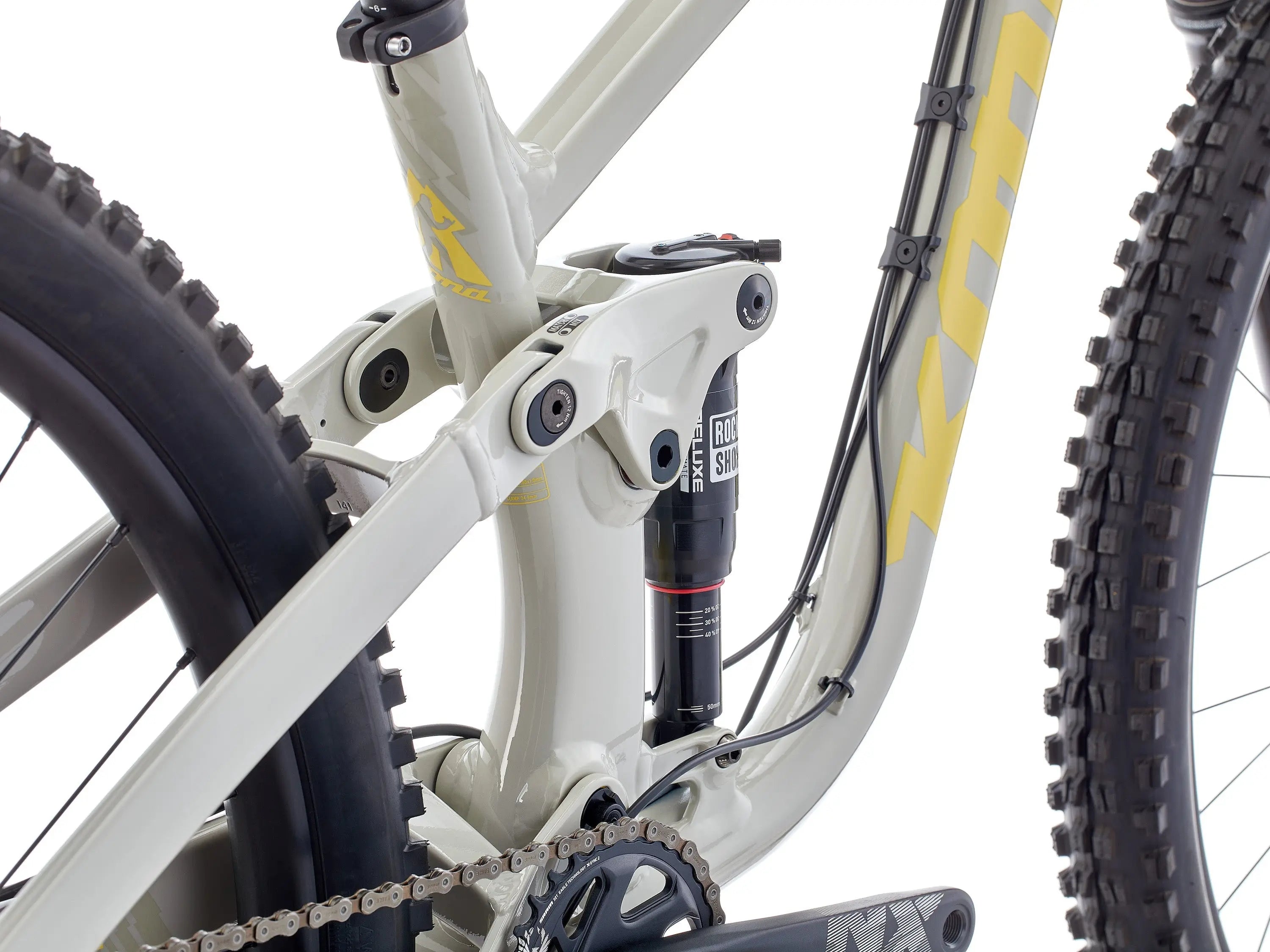

| Rear Shock | RockShox Deluxe Ultimate Trunnion |
| Fork | RockShox Pike Select RC Charger DebonAir 140mm Tapered 110mm Spacing |
| Crankarms | SRAM NX Eagle DUB |
| Chainrings | 32t X-Sync Eagle |
| B/B | SRAM DUB PF92 |
| Pedals | n/a |
| Chain | SRAM SX-Eagle |
| Cassette | SRAM NX-Eagle 11-50t 12spd |
| Chainguide | n/a |
| F/D | n/a |
| R/D | SRAM GX-Eagle |
| Shifters | SRAM NX-Eagle |
| Brake Calipers | SRAM G2 RS |
| Front Brake Rotor | SRAM Centerline 200mm |
| Rear Brake Rotor | SRAM Centerline 180mm |
| Brake Levers | SRAM G2 RS |
| Headset | FSA Orbit 1.5 EP ZS |

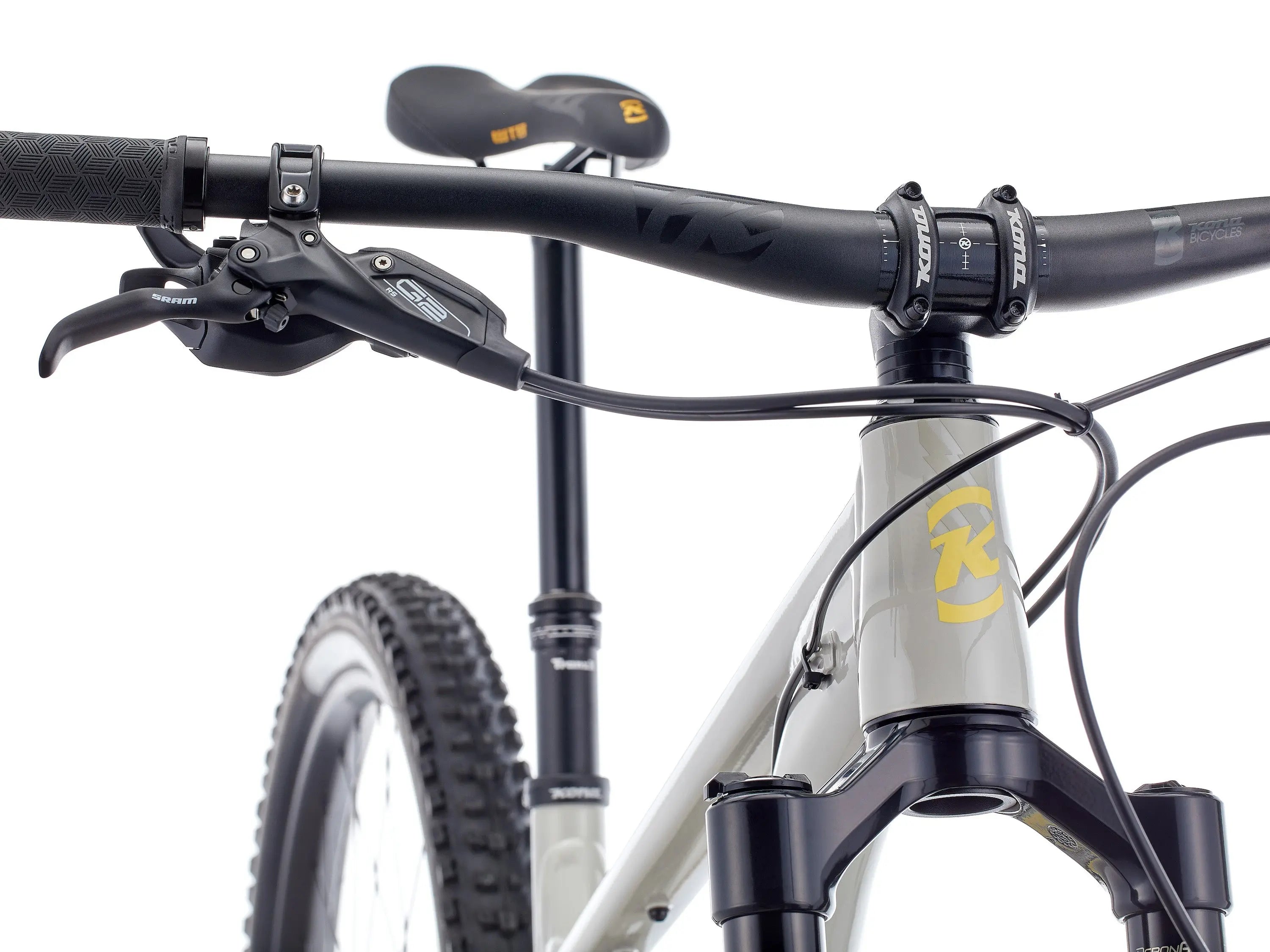

| Handlebar | Kona XC/BC 35 |
| Stem | Kona XC/BC 35 |
| Seatpost | TranzX Dropper +RAD Internal 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip |
| Saddle | WTB Volt |
| Front Hub | Formula 110x15mm |
| Rear Hub | Formula 148x12mm |
| Spokes | Stainless Black 14g |
| Rims | WTB KOM Team i30 TCS |
| Front Tire | Maxxis Minion DHF EXO TR 3C 29x2.5" WT |
| Rear Tire | Maxxis Dissector EXO TR 3C 29x2.4" WT (27.5x2.4" WT size S) |
| Paint Color | Gloss Concrete w/ Honeycomb Decals |
| Extras | n/a |
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 380 | 380 | 420 | 450 |
| 2 | TT Length | 572 | 599 | 628 | 666 |
| 3 | Reach | 430 | 455 | 480 | 515 |
| 4 | Stack | 611 | 615 | 625 | 635 |
| 5 | Standover | 700 | 700 | 710 | 720 |
| 6 | HT Angle | 65.5 | 65.5 | 65.5 | 65.5 |
| 7 | HT Length | 100 | 105 | 116 | 127 |
| 8 | ST Angle | 76.9 | 76.9 | 76.7 | 76.6 |
| 9 | CS Length | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 23 | 33 | 33 | 33 |
| 11 | BB Height | 342 | 342 | 342 | 342 |
| 12 | Wheelbase | 1171 | 1200 | 1230 | 1269 |
| 13 | Front Center | 740 | 767 | 797 | 836 |
| 14 | Fork Length | 551 | 551 | 551 | 551 |
| 15 | Fork Offset | 44 | 44 | 44 | 44 |
| B36134D01 |
| B36134D03 |
| B36134D05 |
| B36134D06 |
