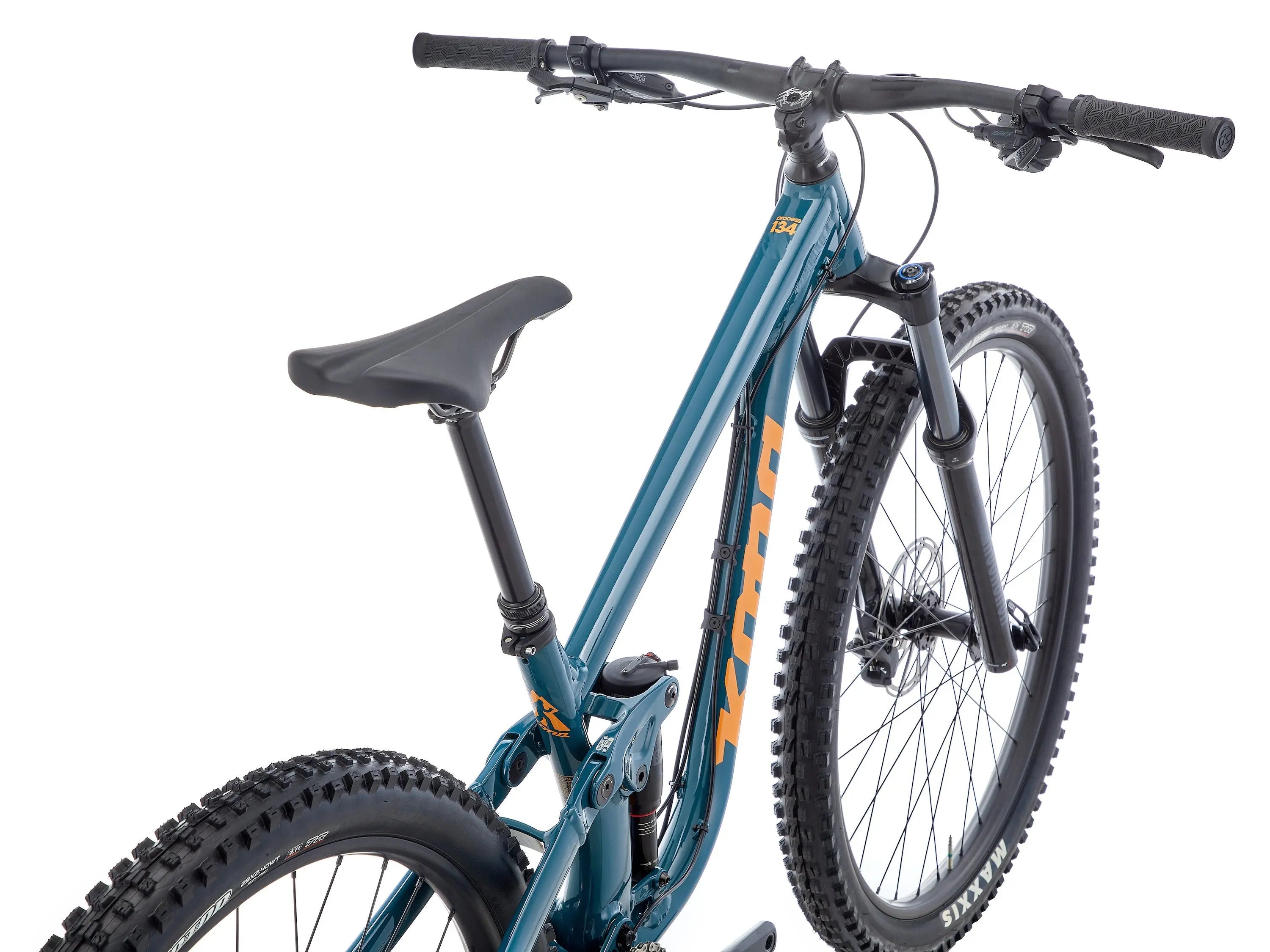

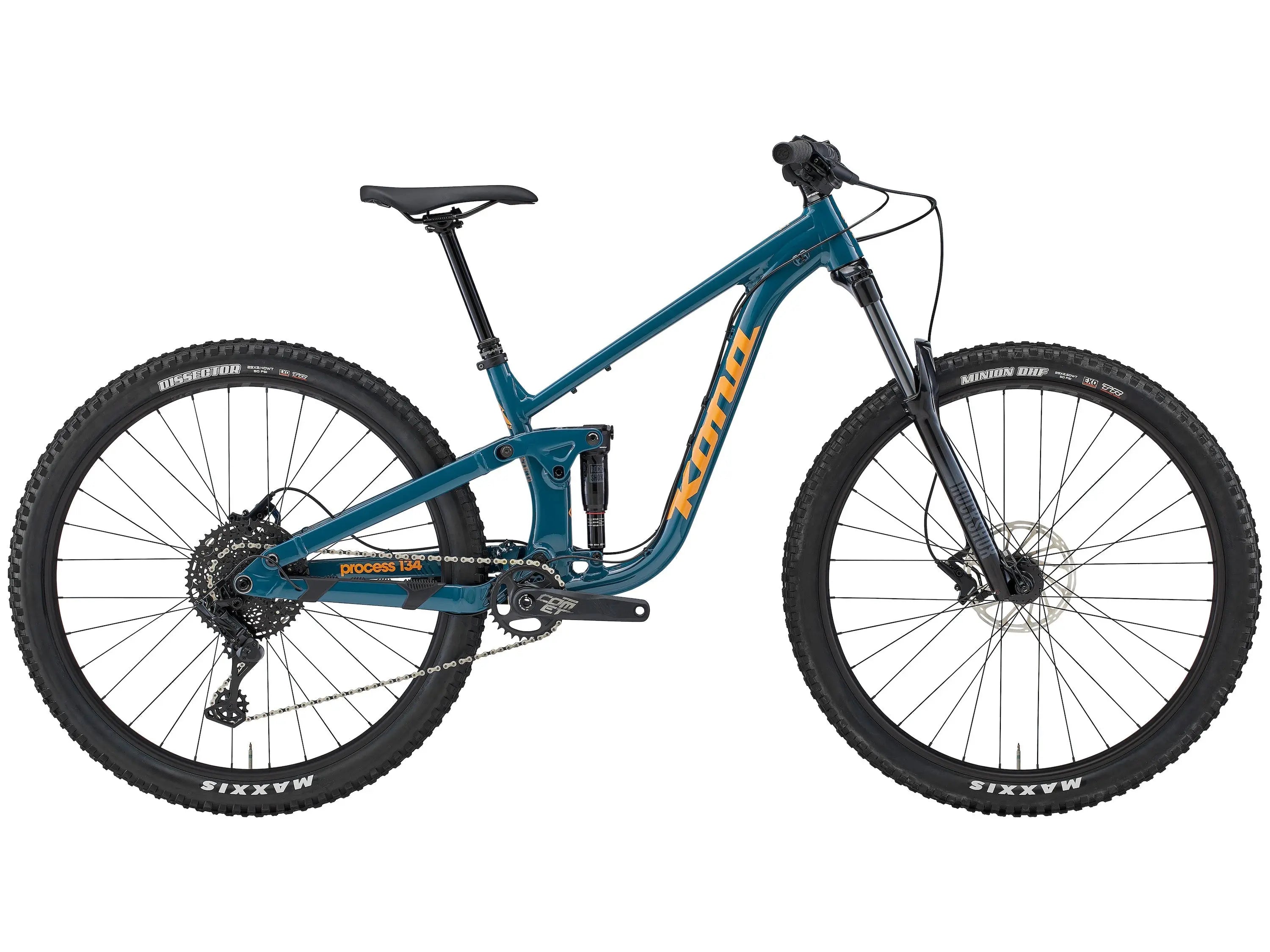

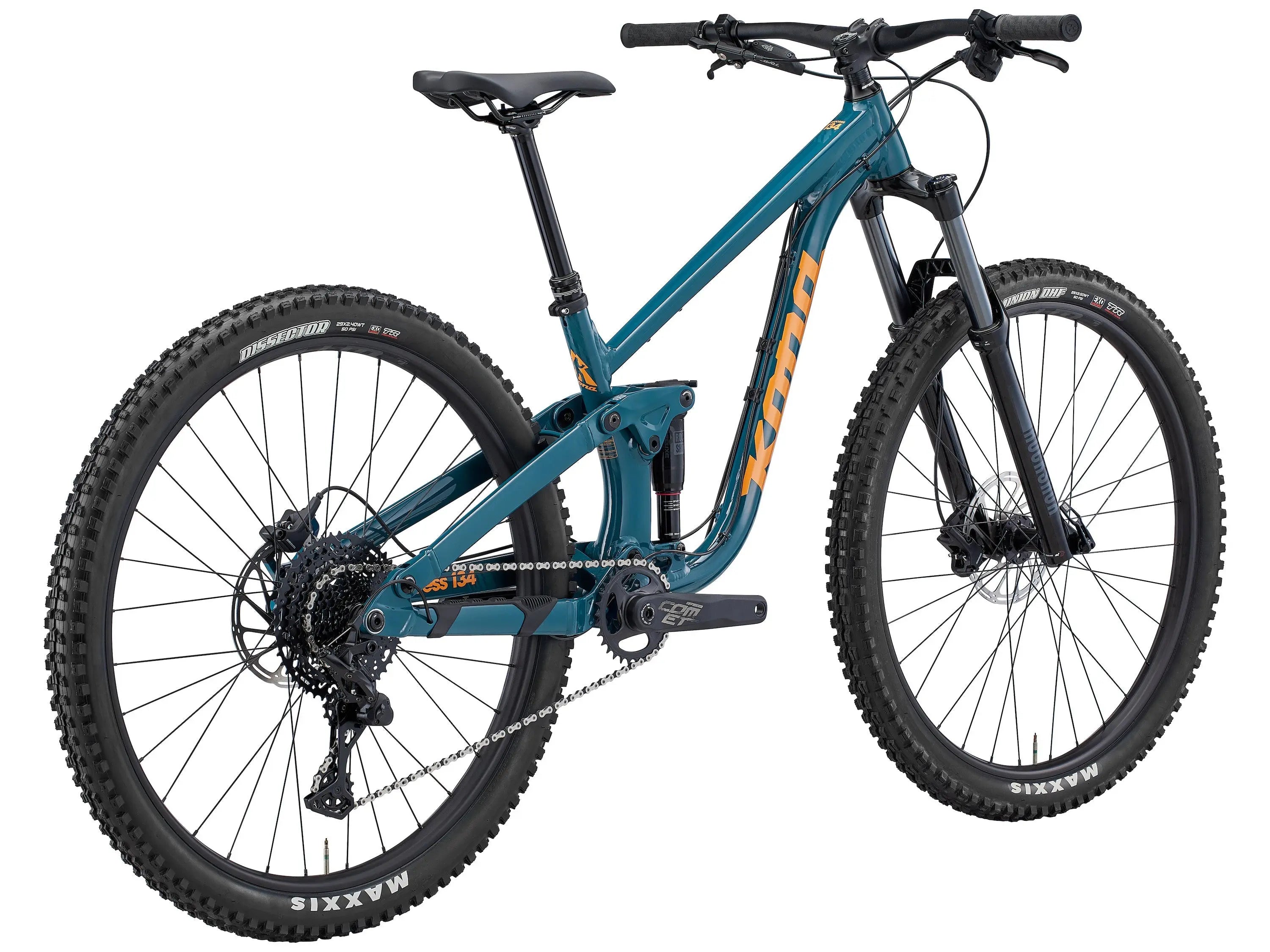

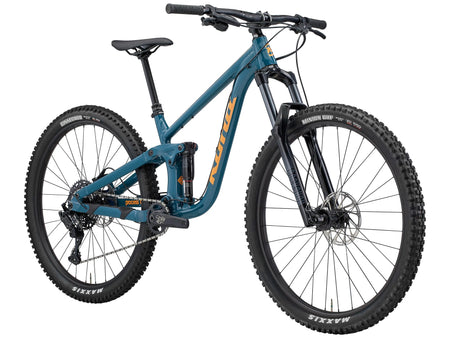

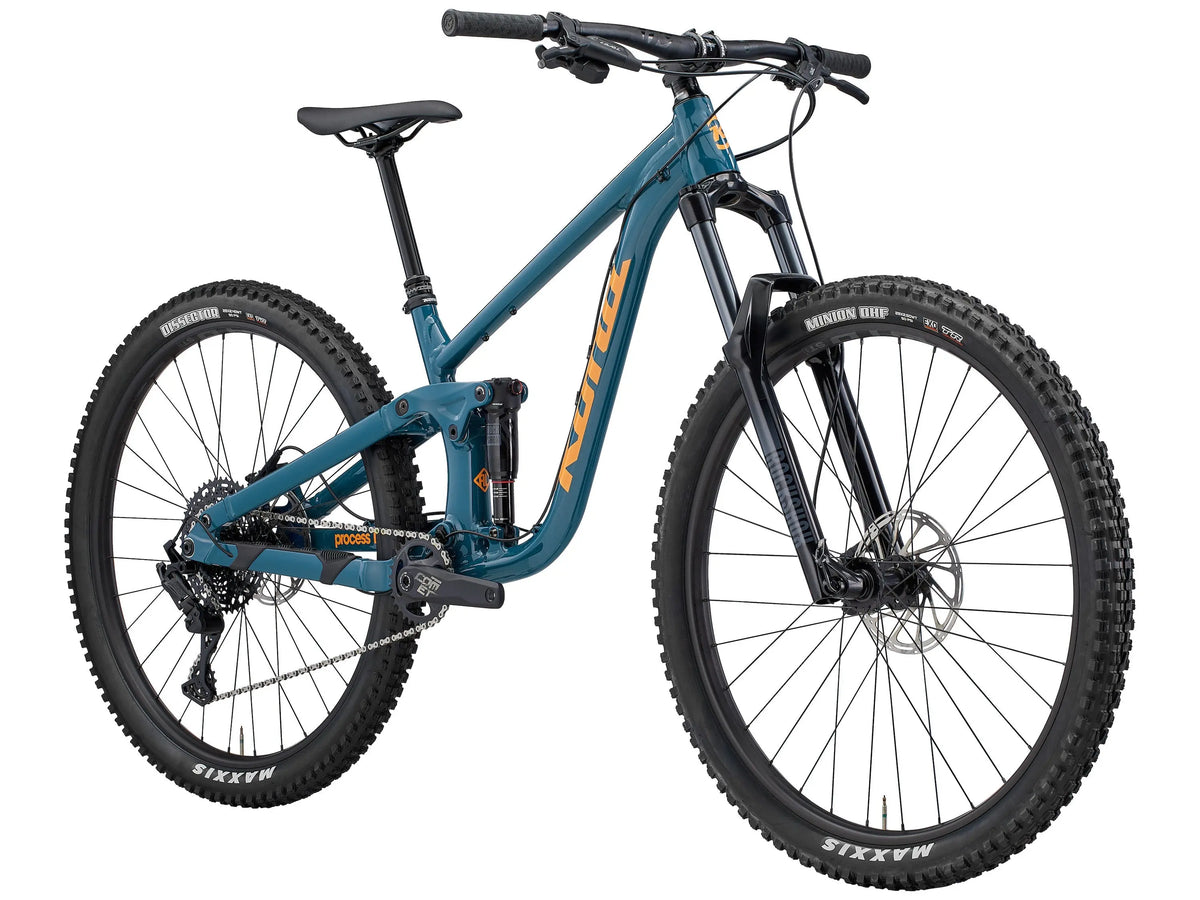

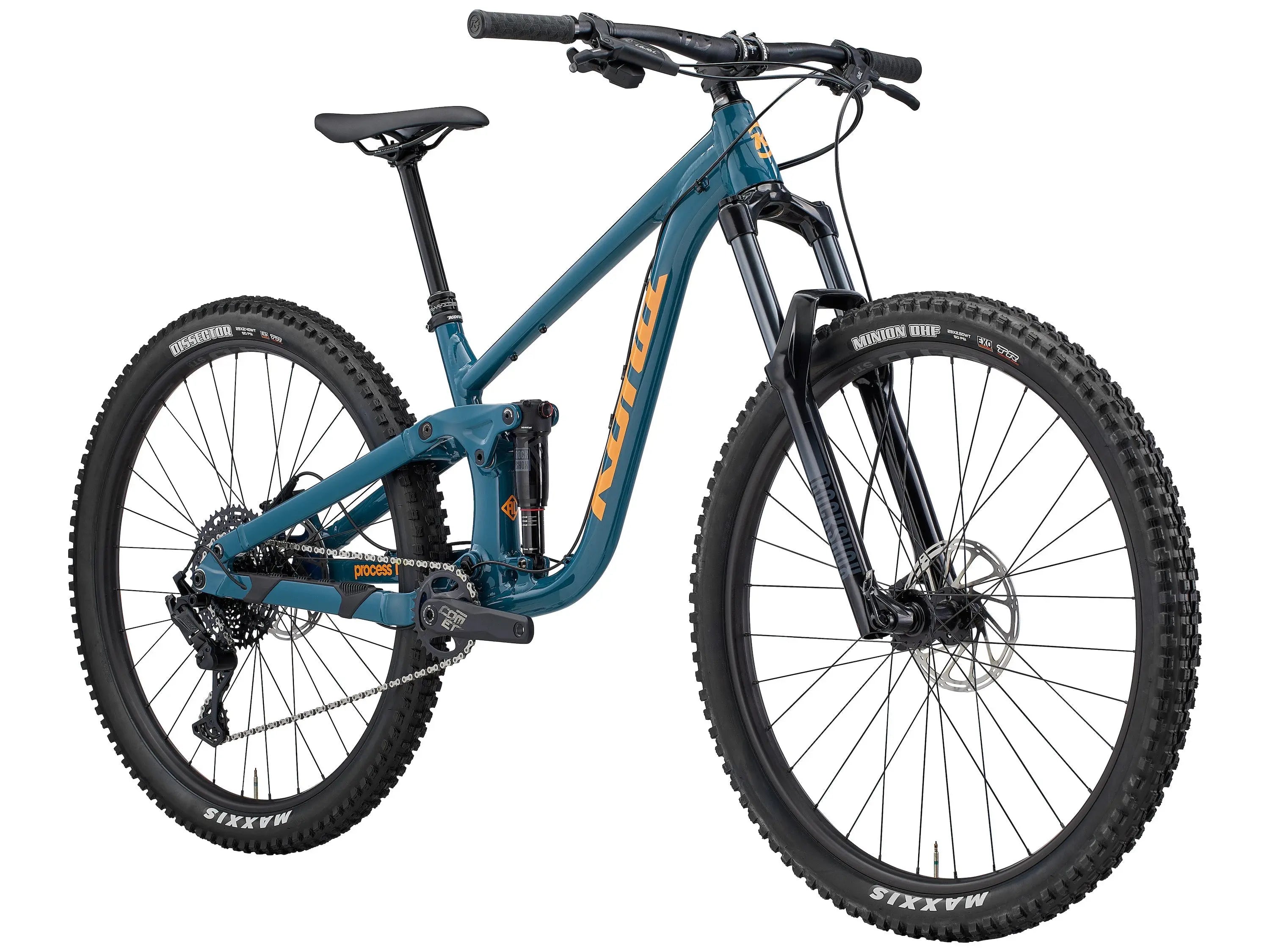

Process 134 G3 - Full Suspension

In stock

Key Features

Looking for that totally dependable singletrack sidekick with solid kung fu skills? Look no further. The Process 134 is ready for any kind of riding you want to explore, from the sublime to the sketchy. Refined progressive geometry never sets a wheel wrong, and new suspension kinematics that are perfect out of the box not only keep the wheels railing smooth but can smoothly incorporate any amount of upgrade you want to throw in down the line. Smart spec ensures ripping good times and peace of mind. The Process 134 offers all the legendary durability, flip-chip versatility and jib-friendly behavior of its bigger siblings at an unbeatable price.

SPECS & GEOMETRY

SPECIFICATIONS

Frame Material	Kona 6061 Aluminum Butted 134mm Travel
Sizes	S, M, L, XL

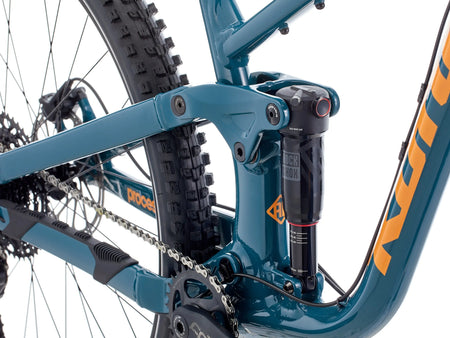

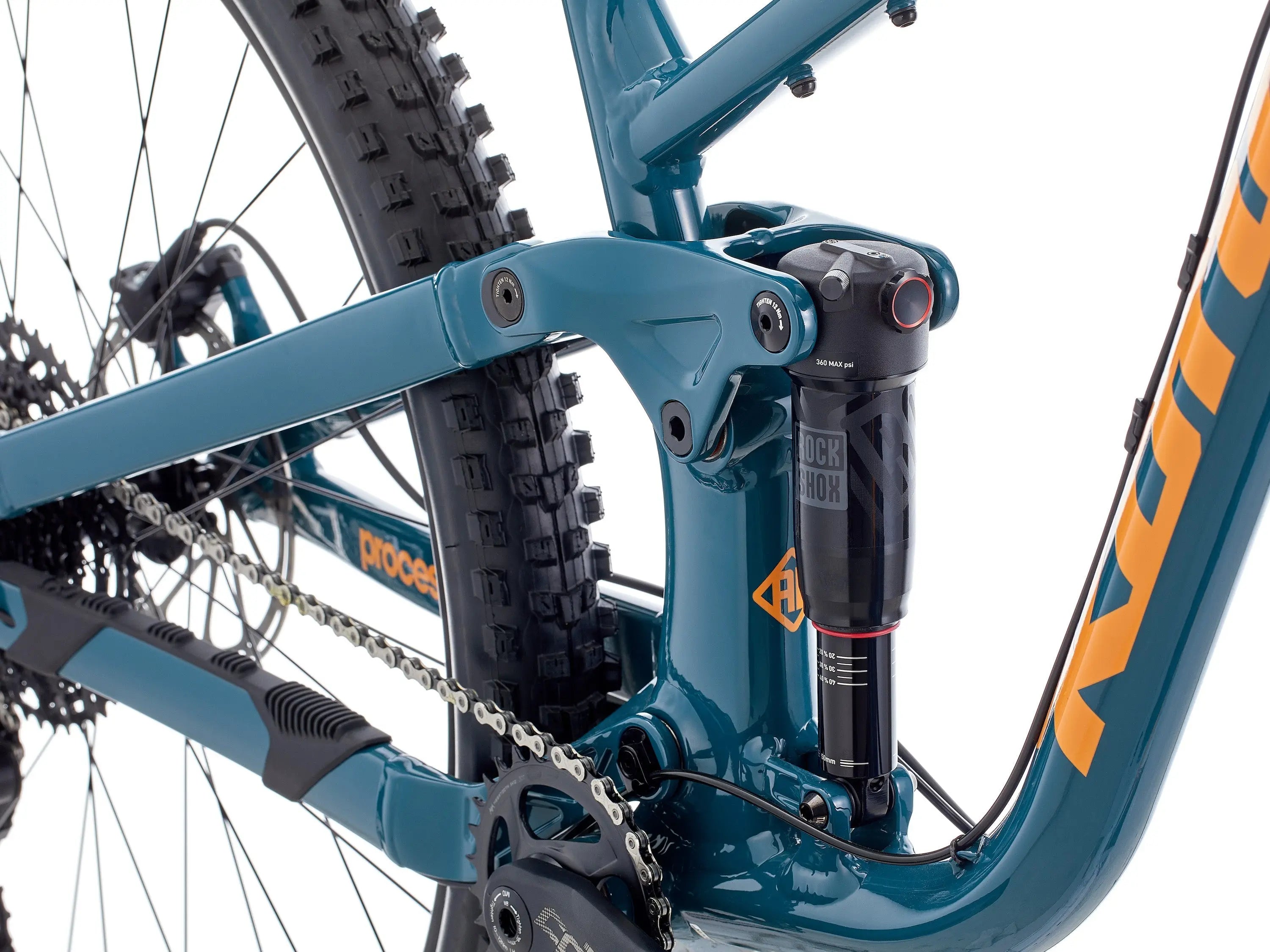

Rear Shock	RockShox Deluxe Select Trunnion
Fork	RockShox Recon RL Motion Control Solo Air 140mm Tapered 110mm Spacing
Crankarms	FSA Comet
Chainrings	30t
B/B	FSA PF92
Pedals	n/a
Chain	KMC X10
Cassette	Microshift Advent X 11-48t 10spd
Chainguide	n/a
F/D	n/a
R/D	Microshift Advent X
Shifters	Microshift Advent X
Brake Calipers	SRAM Level
Front Brake Rotor	SRAM Centerline 180mm
Rear Brake Rotor	SRAM Centerline 180mm

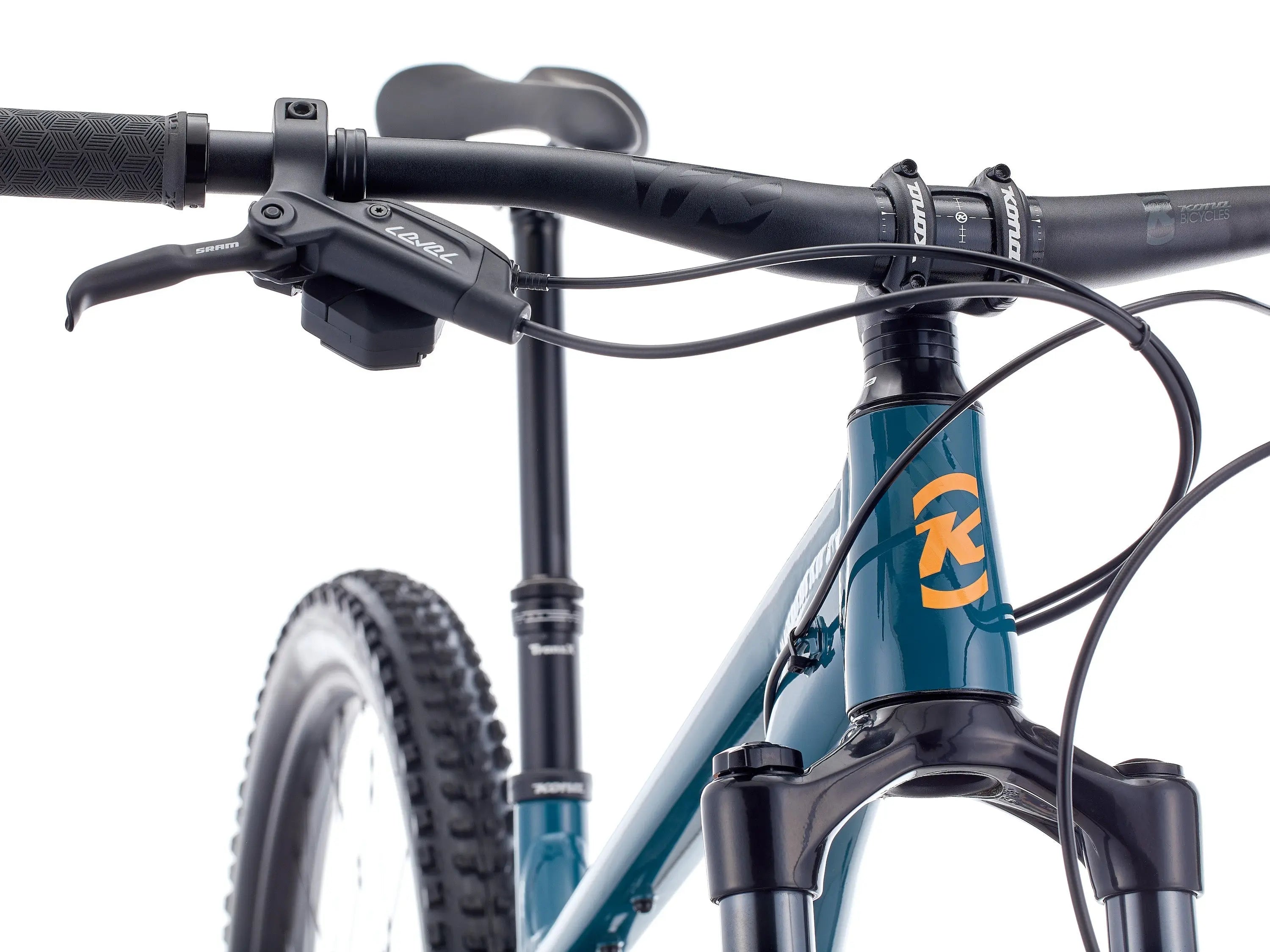

Brake Levers	SRAM Level
Headset	FSA No.57B
Handlebar	Kona XC/BC 35
Stem	Kona XC/BC 35
Seatpost	TranzX Dropper +RAD Internal 31.6mm
Seat Clamp	Kona Clamp
Grips	Kona Key Grip
Saddle	Kona Trail
Front Hub	Formula 110x15mm
Rear Hub	Formula 148x12mm
Spokes	Stainless Black 14g
Rims	WTB ST i30 TCS 2.0
Front Tire	Maxxis Minion DHF EXO TR DUAL 29x2.5" WT
Rear Tire	Maxxis Dissector EXO TR DUAL 29x2.4" WT (27.5x2.4" WT size S)
Paint Color	Gloss Storm Blue w/ Persimmon Decals
Extras	n/a

All specifications are subject to change without notice.

GEOMETRY

	Size	S	M	L	XL
1	ST Length	380	380	420	450
2	TT Length	572	599	628	666
3	Reach	430	455	480	515
4	Stack	611	615	625	635
5	Standover	700	700	710	720
6	HT Angle	65.5	65.5	65.5	65.5
7	HT Length	100	105	116	127
8	ST Angle	76.9	76.9	76.7	76.6
9	CS Length	435	435	435	435
10	BB Drop	23	33	33	33
11	BB Height	342	342	342	342
12	Wheelbase	1171	1200	1230	1269
13	Front Center	740	767	797	836
14	Fork Length	551	551	551	551
15	Fork Offset	44	44	44	44

B3613401

B3613403

B3613405

B3613406

$3,003.00 inc. VAT
