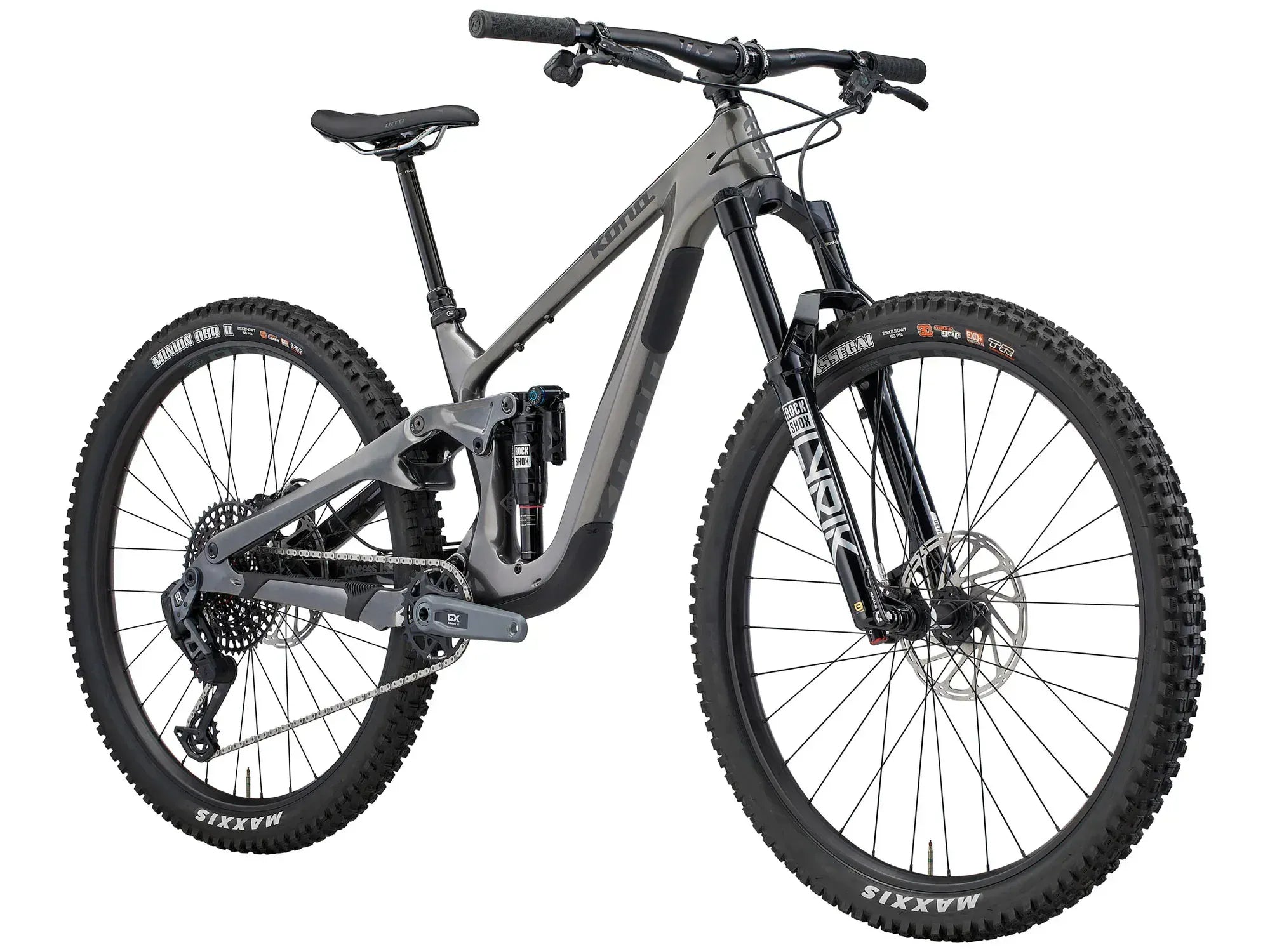

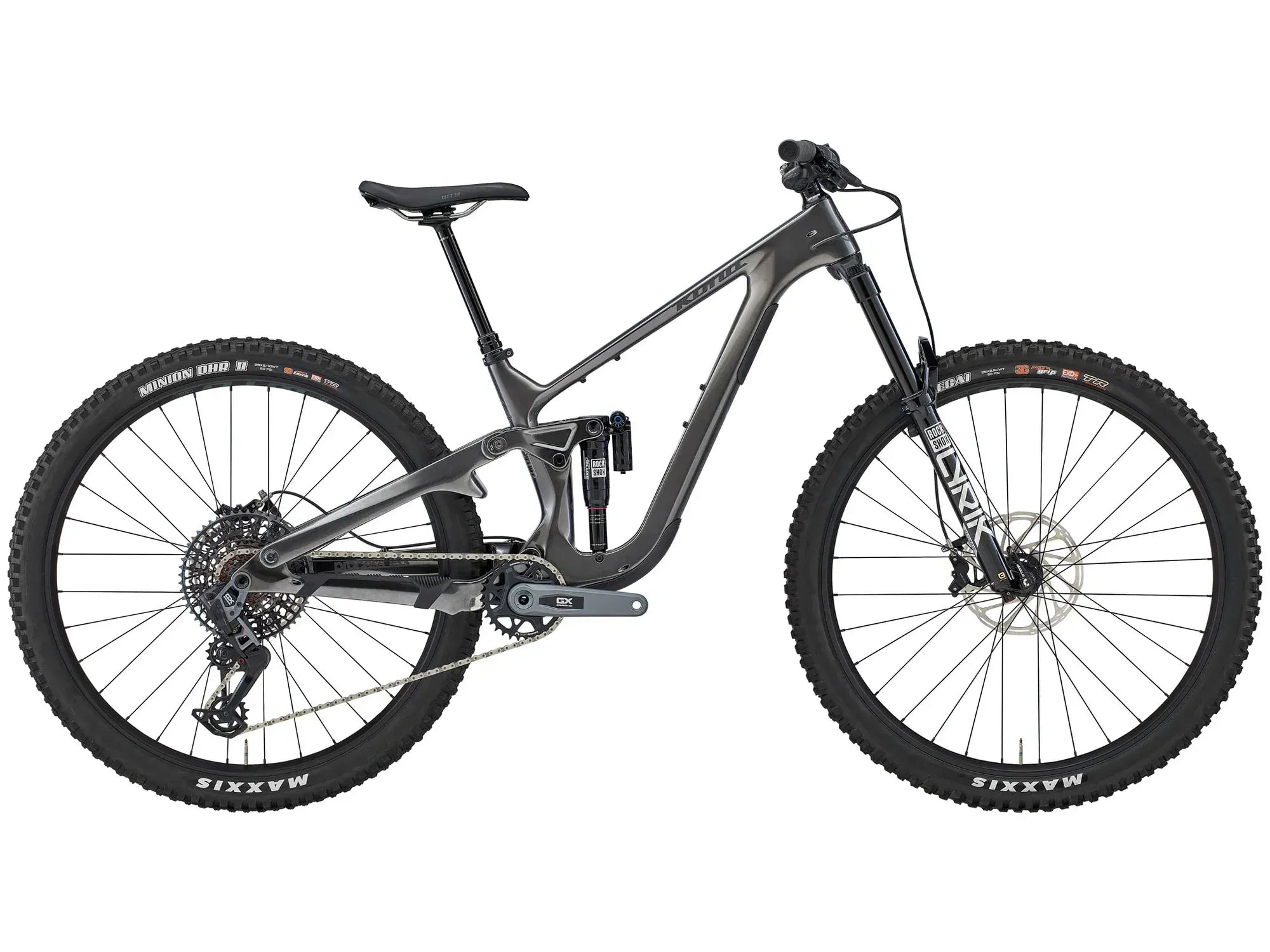

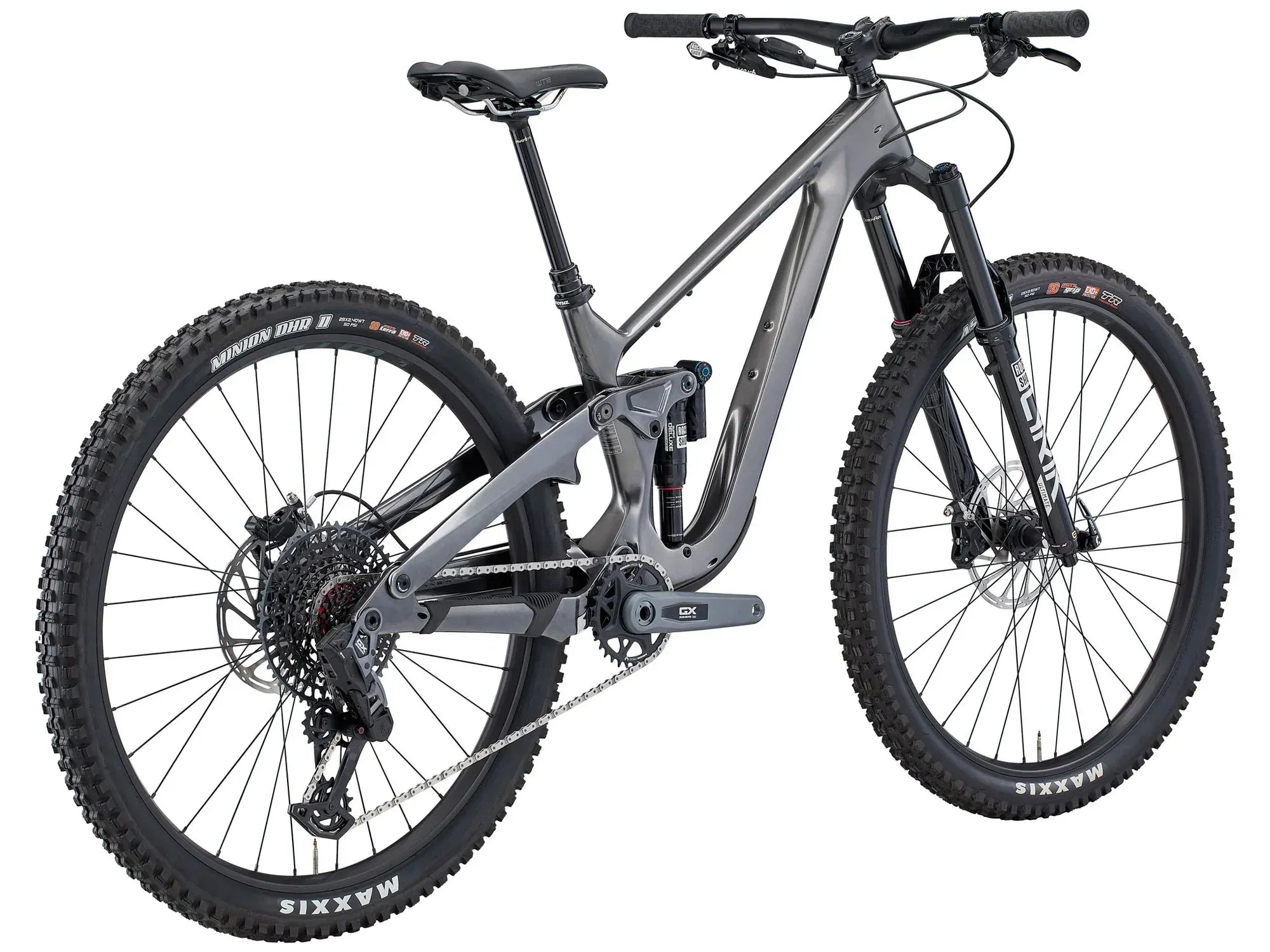

Kona Full Suspension Process 153 CR/DL G3 - Full Suspension

Process 153 CR/DL G3 - Full Suspension

Out of stock

$8,204.00 inc. VAT

Size SM MD LG XL

Product variants

Combining uncompromising performance with legendary toughness, this is the bike that the likes of Caleb Holonko rely on to define the edge of what’s possible. Top tier, super-tunable RockShox suspension is paired with the uncluttered precision of SRAM’s T-Type AXS drivetrain for a surefooted magic carpet ride regardless of terrain or conditions. DT Swiss hubs keep the wheels rolling smooth for the long haul. Flip-chip convenience lets you choose whether those smooth rolling wheels are 29ers or a mullet setup. Bombproof carbon fiber construction ensures peace of mind and provides deep dropper extension for maximum steezability. Find your limits. Then demolish them.

B36153CD01

B36153CD03

B36153CD05

B36153CD06

SPECIFICATIONS

FRAME MATERIAL	Kona DH Carbon 153mm Travel
SIZES	S, M, L, XL
REAR SHOCK	RockShox Super Deluxe Ultimate Trunnion
FORK	RockShox Lyrik Ultimate RC2 Charger 3 DebonAir+ w/ButterCups 160mm Tapered 110mm Spacing
CRANKARMS	SRAM GX Eagle Transmission
CHAINRINGS	32t
B/B	SRAM DUB PF92 Wide
PEDALS	n/a
CHAIN	SRAM GX Eagle Transmission
CASSETTE	SRAM GX Eagle Transmission 10-52t 12spd
CHAINGUIDE	n/a
F/D	n/a
R/D	SRAM GX Eagle Transmission
SHIFTERS	SRAM AXS Pod Controller
BRAKE CALIPERS	SRAM G2 RSC
FRONT BRAKE ROTOR	SRAM Centerline 200mm
REAR BRAKE ROTOR	SRAM Centerline 200mm
BRAKE LEVERS	SRAM G2 RSC
HEADSET	FSA Orbit 1.5 E ZS
HANDLEBAR	Kona XC/BC 35
STEM	Kona XC/BC 35
SEATPOST	Rock Shox Reverb w/1x Remote Lever 31.6mm
SEAT CLAMP	Kona Clamp
GRIPS	Kona Key Grip
SADDLE	WTB Volt
FRONT HUB	DT Swiss 350 110x15mm
REAR HUB	DT Swiss 350 148x12mm
SPOKES	Stainless Black 14g
RIMS	WTB KOM Trail i30 TCS
FRONT TIRE	Maxxis Assegai EXO+ TR 3C 29x2.5" WT
REAR TIRE	Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT (27.5x2.4" WT size S)
PAINT COLOR	Gloss Faux Dark Chrome w/ Satin Lead Decals
EXTRAS	n/a

GEOMETRY

	SIZE	S	M	L	XL
1	ST LENGTH	380	380	420	450
2	TT LENGTH	574	599	628	667
3	REACH	430	455	480	515
4	STACK	615	615	625	635
5	STANDOVER	690	700	710	720
6	HT ANGLE	64.5	64.5	64.5	64.5
7	HT LENGTH	94	94	105	116
8	ST ANGLE	76.9	76.9	76.7	76.6
9	CS LENGTH	435	435	435	435
10	BB DROP	20	30	30	30
11	BB HEIGHT	345	345	345	345
12	WHEELBASE	1190	1215	1244	1284
13	FRONT CENTER	756	781	811	851
14	FORK LENGTH	571	571	571	571
15	FORK OFFSET	44	44	44
