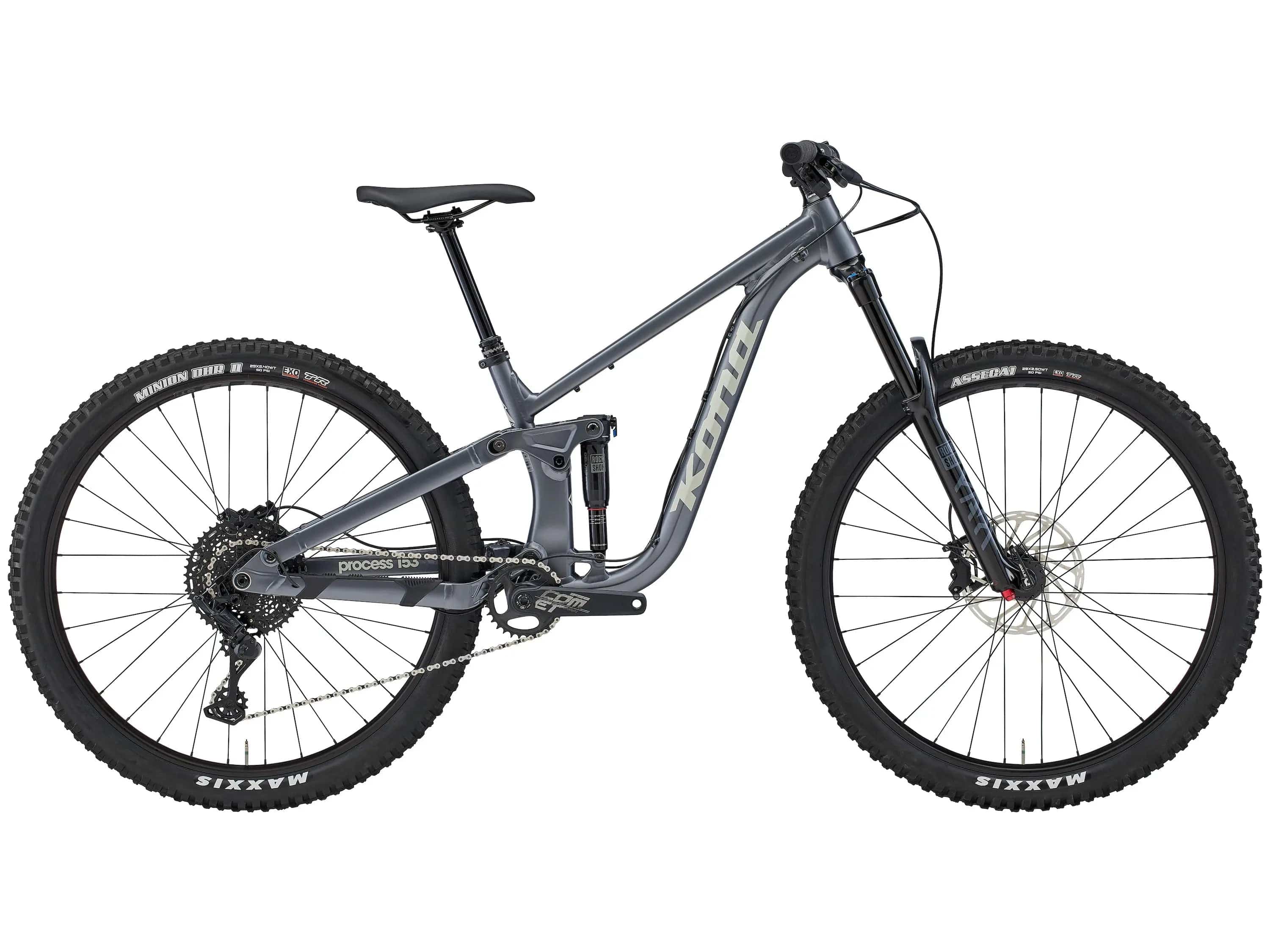

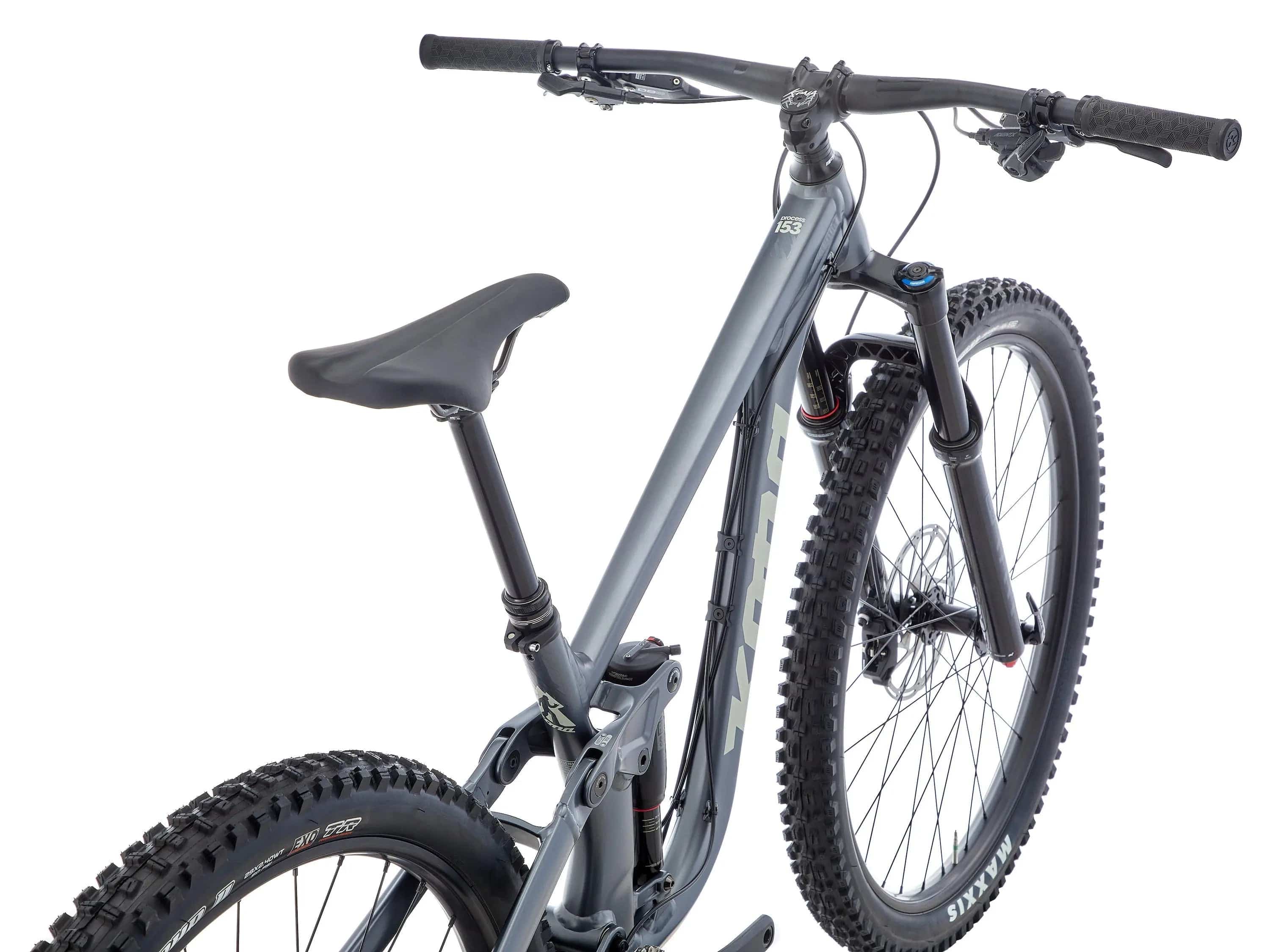

Process 153 G3 - Full Suspension

Out of stock

Key Features

Your weekends never saw this coming. The base 153 is like a best friend and trusty pickup truck rolled into one – a rugged aluminum shred machine built to slay every adventure you put in front of it and still leave room in your life for things like food and rent. It runs the same telepathically awesome geometry as all the other Process 153 models, but utilizes carefully thought out components that get the job done without any bragging and without breaking the bank. Fully featured like its big siblings with flip-chip mullet compatibility, the 153 is your ticket to ride. Entry level? More like gateway drug…

SPECS & GEOMETRY

SPECIFICATIONS

Frame Material	Kona 6061 Aluminum Butted 153mm Travel
Sizes	S, M, L, XL
Rear Shock	RockShox Deluxe Select Plus Trunnion
Fork	RockShox Yari RC Motion Control DebonAir 160mm Tapered 110mm Spacing
Crankarms	FSA Comet Heavy Duty
Chainrings	30t
B/B	FSA PF92
Pedals	n/a
Chain	KMC X10
Cassette	Microshift Advent X 11-48t 10spd
Chainguide	n/a
F/D	n/a
R/D	Microshift Advent X
Shifters	Microshift Advent X
Brake Calipers	SRAM DB8
Front Brake Rotor	SRAM Centerline 200mm
Rear Brake Rotor	SRAM Centerline 180mm
Brake Levers	SRAM DB8
Headset	FSA No.57B
Handlebar	Kona XC/BC 35
Stem	Kona XC/BC 35
Seatpost	TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm
Seat Clamp	Kona Clamp
Grips	Kona Key Grip
Saddle	Kona Trail
Front Hub	Formula 110x15mm
Rear Hub	Formula 148x12mm
Spokes	Stainless Black 14g
Rims	WTB ST i30 TCS 2.0
Front Tire	Maxxis Assegai EXO TR DUAL 29x2.5" WT
Rear Tire	Maxxis Minion DHR II EXO TR DUAL 29x2.4" WT (27.5x2.4" WT size S)
Paint Color	Satin Metallic Charcoal w/ Concrete Decals
Extras	n/a

All specifications are subject to change without notice.

GEOMETRY

	Size	S	M	L	XL
1	ST Length	380	380	420	450
2	TT Length	576	601	628	667
3	Reach	430	455	480	515
4	Stack	620	620	625	635
5	Standover	700	700	710	720
6	HT Angle	64.5	64.5	64.5	64.5
7	HT Length	100	100	105	116
8	ST Angle	76.9	76.9	76.7	76.6
9	CS Length	435	435	435	435
10	BB Drop	20	30	30	30
11	BB Height	345	345	345	345
12	Wheelbase	1190	1215	1244	1284
13	Front Center	756	781	811	851
14	Fork Length	571	571	571	571
15	Fork Offset	44	44	44	44

B3615301

B3615303

B3615305

B3615306

$3,959.00 inc. VAT
