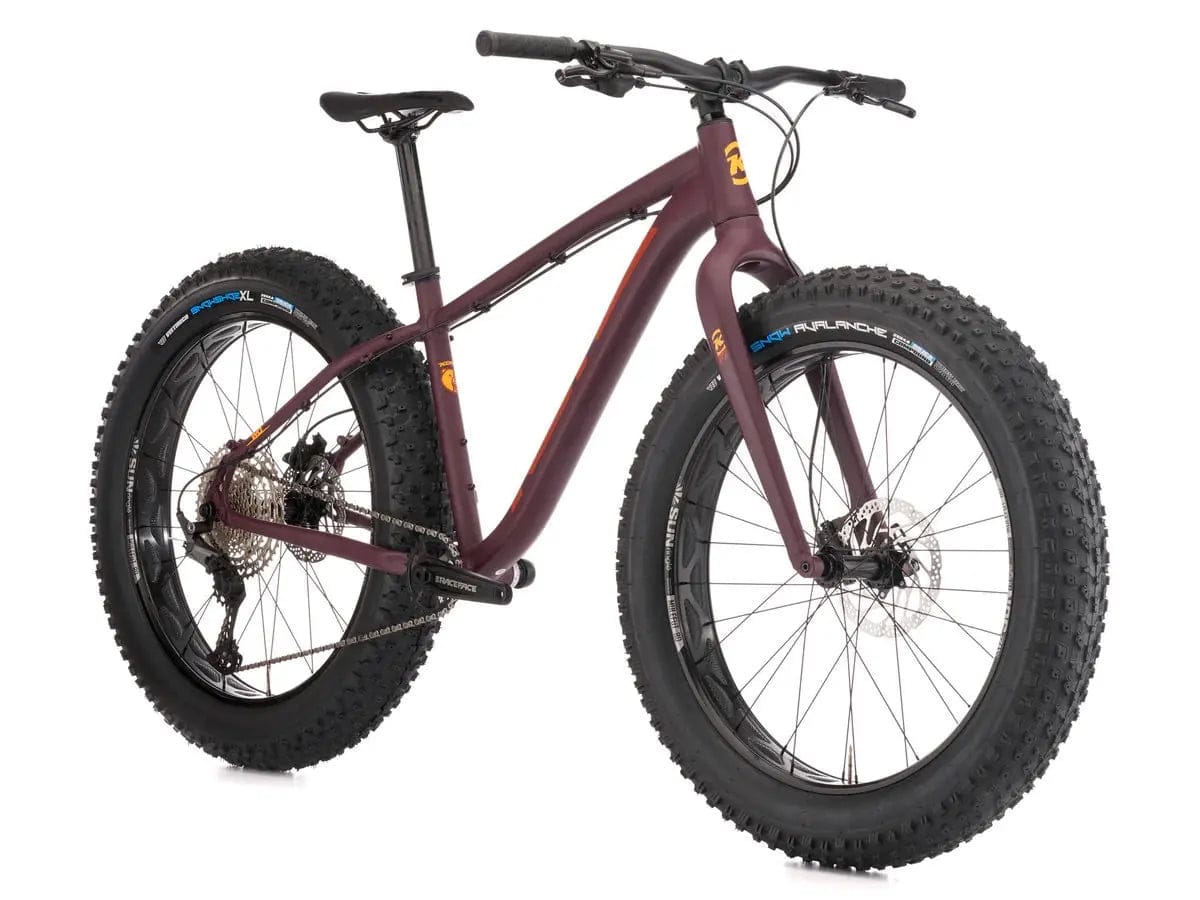

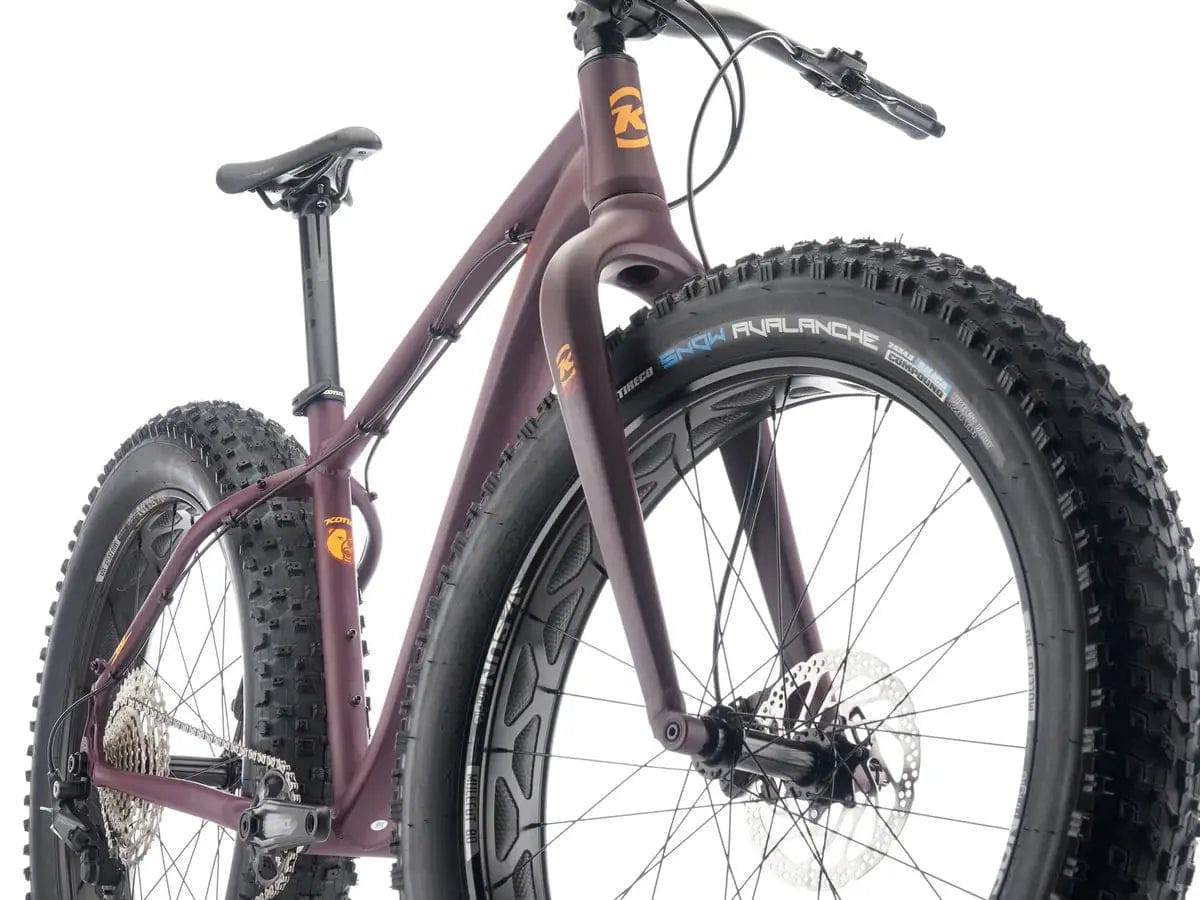

Wo - MTB Hardtail

In stock

Key Features

The Wo has been a staple in our fat bike lineup for a few years now. Its simple, dependable design has made it a favourite for fat bike aficionados everywhere. Running a wide range 11-speed drivetrain, durable cranks, and big ol’ 4.8” tires on tubeless-ready rims, the Wo gets you where you need to go with ease.

B36WO01

B36WO03

B36WO05

B36WO06

SPECS & GEOMETRY

SPECIFICATIONS

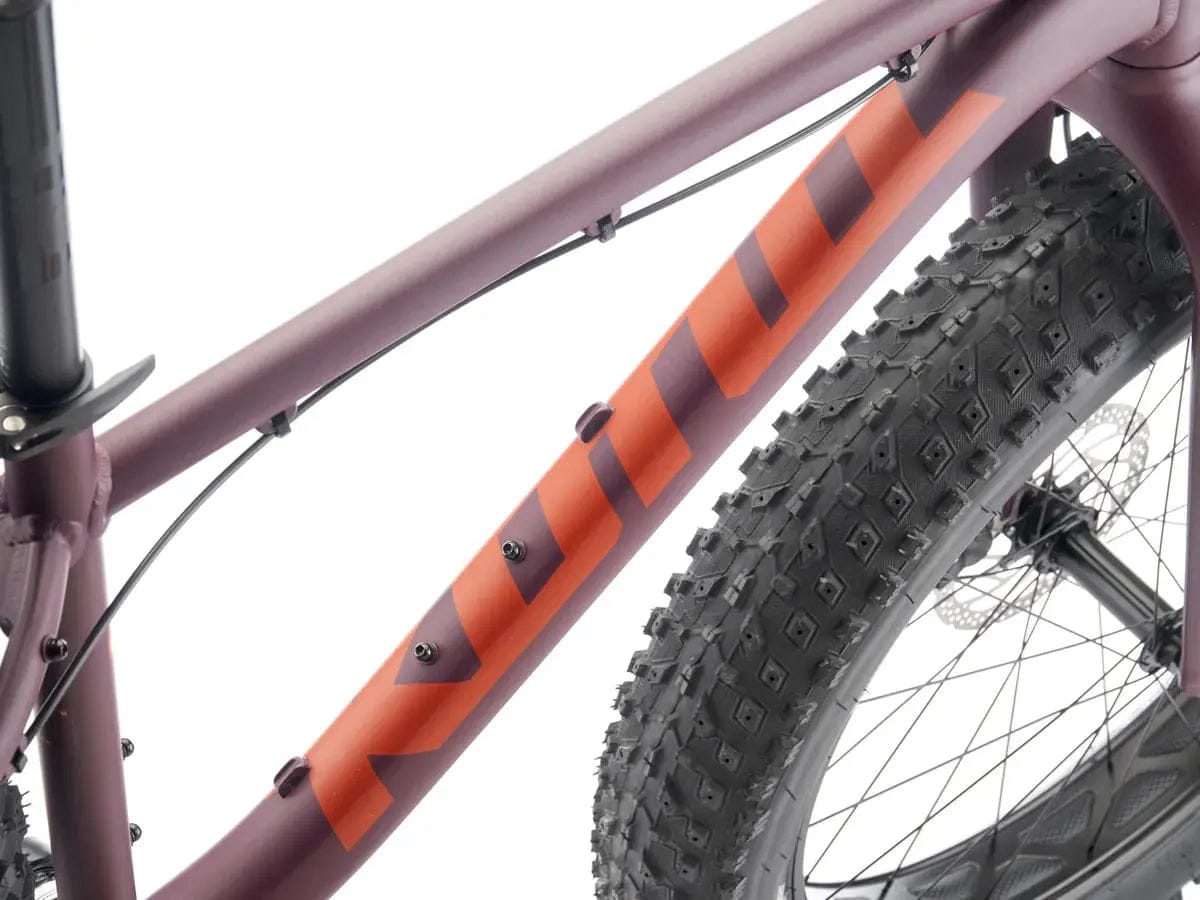

FRAME MATERIAL	Kona Fat 6061 Aluminum Butted
SIZES	S, M, L, XL
REAR SHOCK	n/a
FORK	Kona Wo Fat Disc

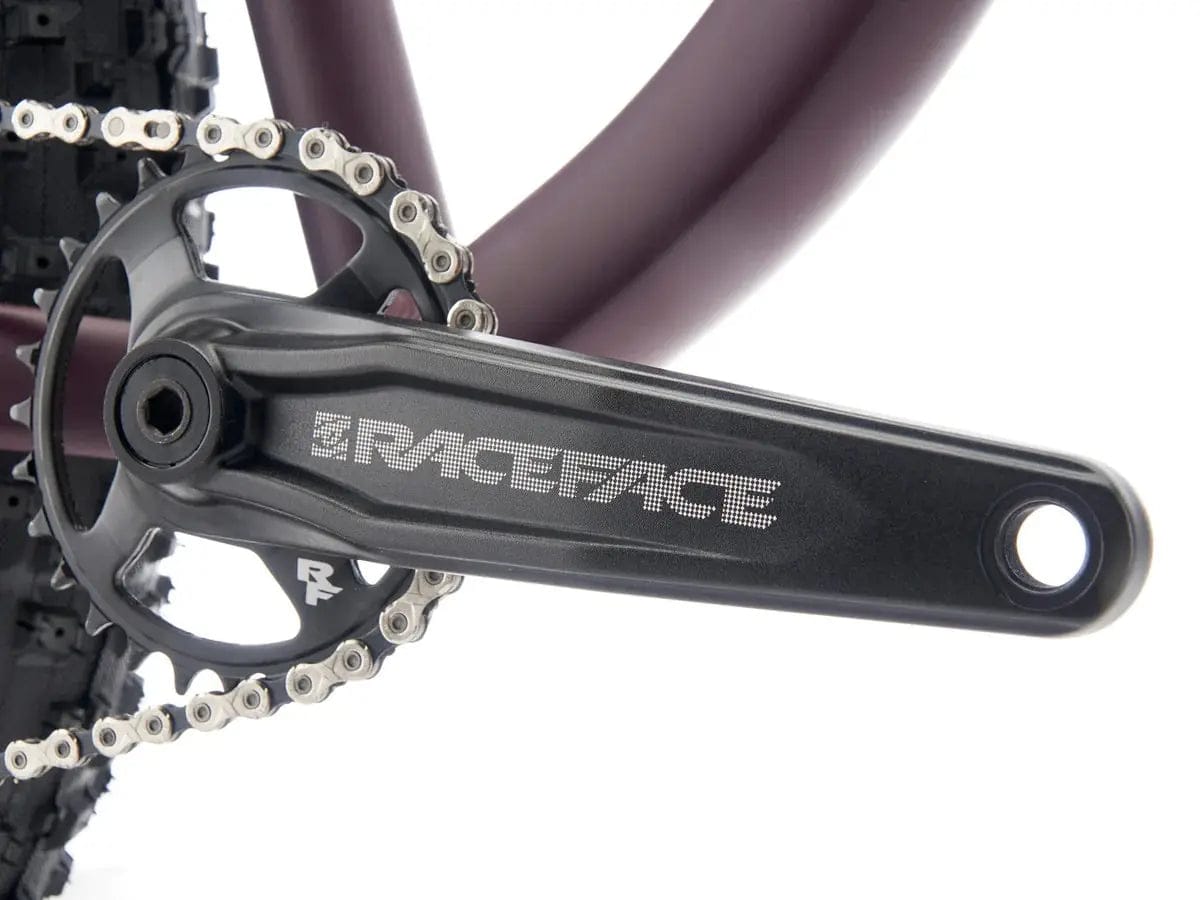

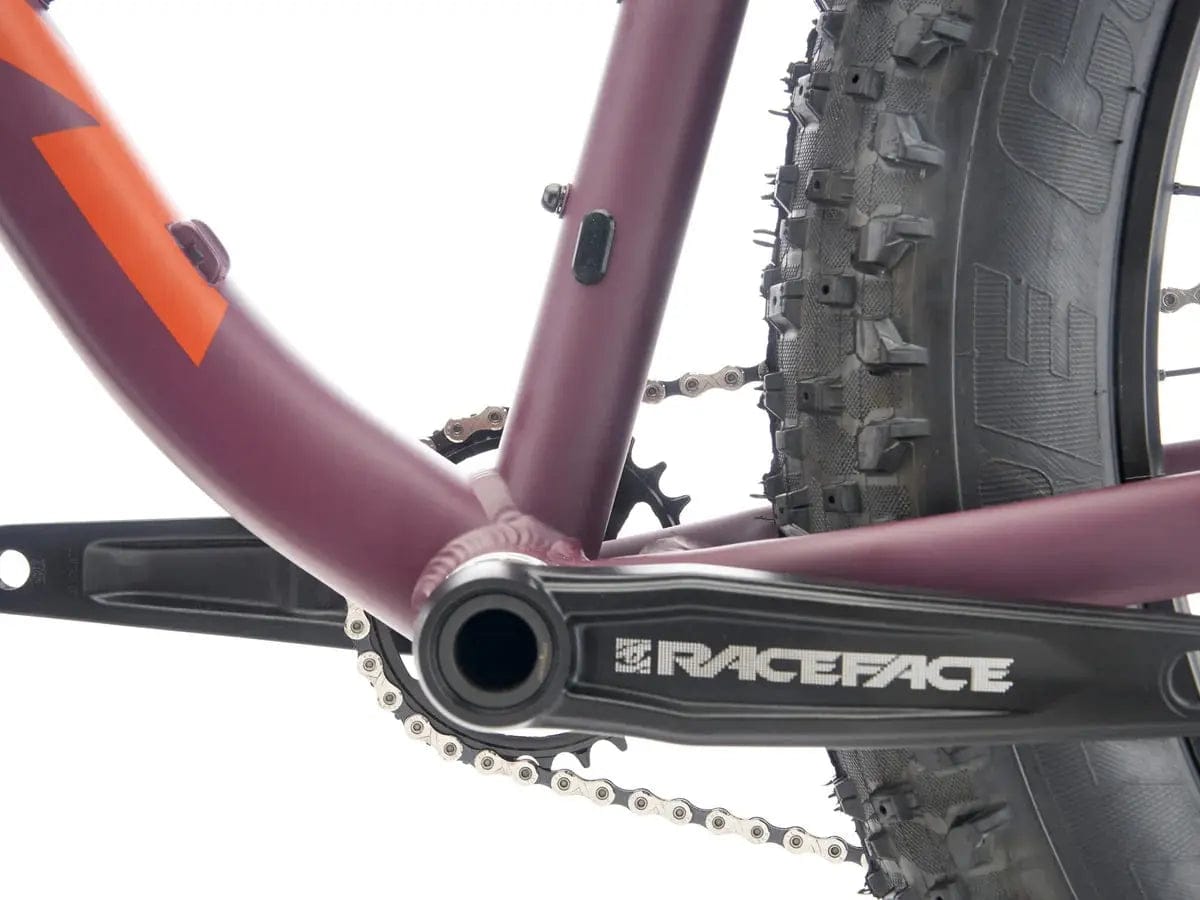

CRANKARMS	Race Face Ride Fat
CHAINRINGS	28t Wide/Narrow
B/B	Race Face 100mm
PEDALS	n/a
CHAIN	KMC X10
CASSETTE	Microshift Advent X 11-48t 10spd
CHAINGUIDE	n/a
F/D	n/a

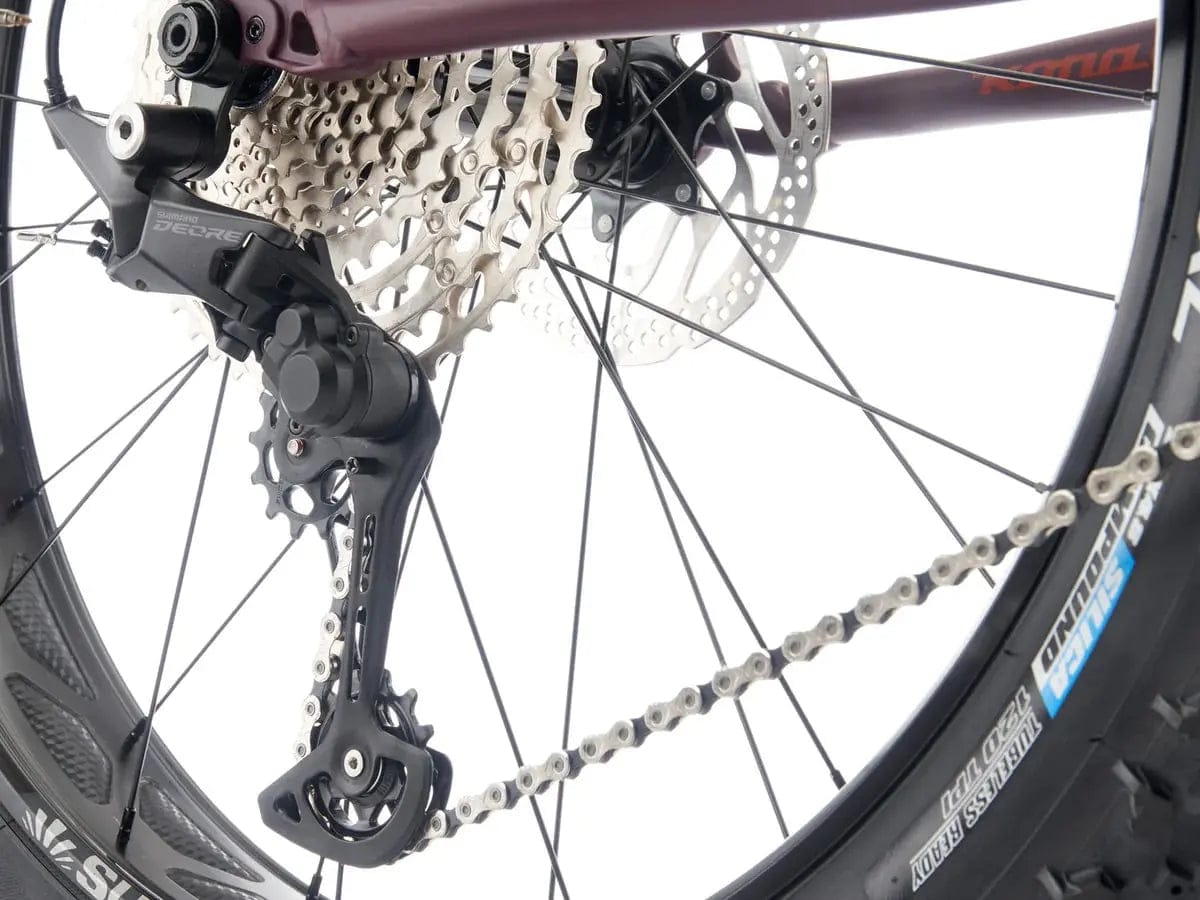

R/D	Microshift Advent X

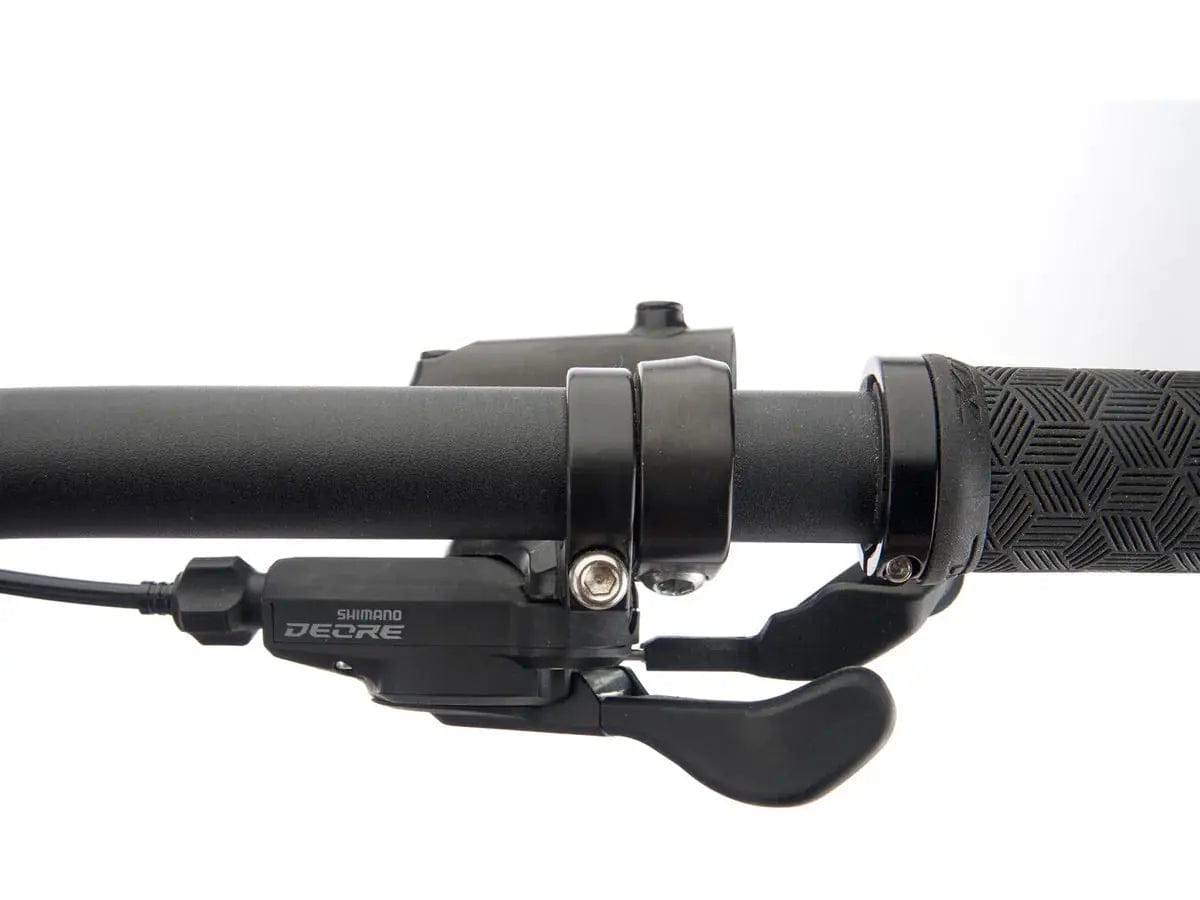

SHIFTERS	Microshift Advent X

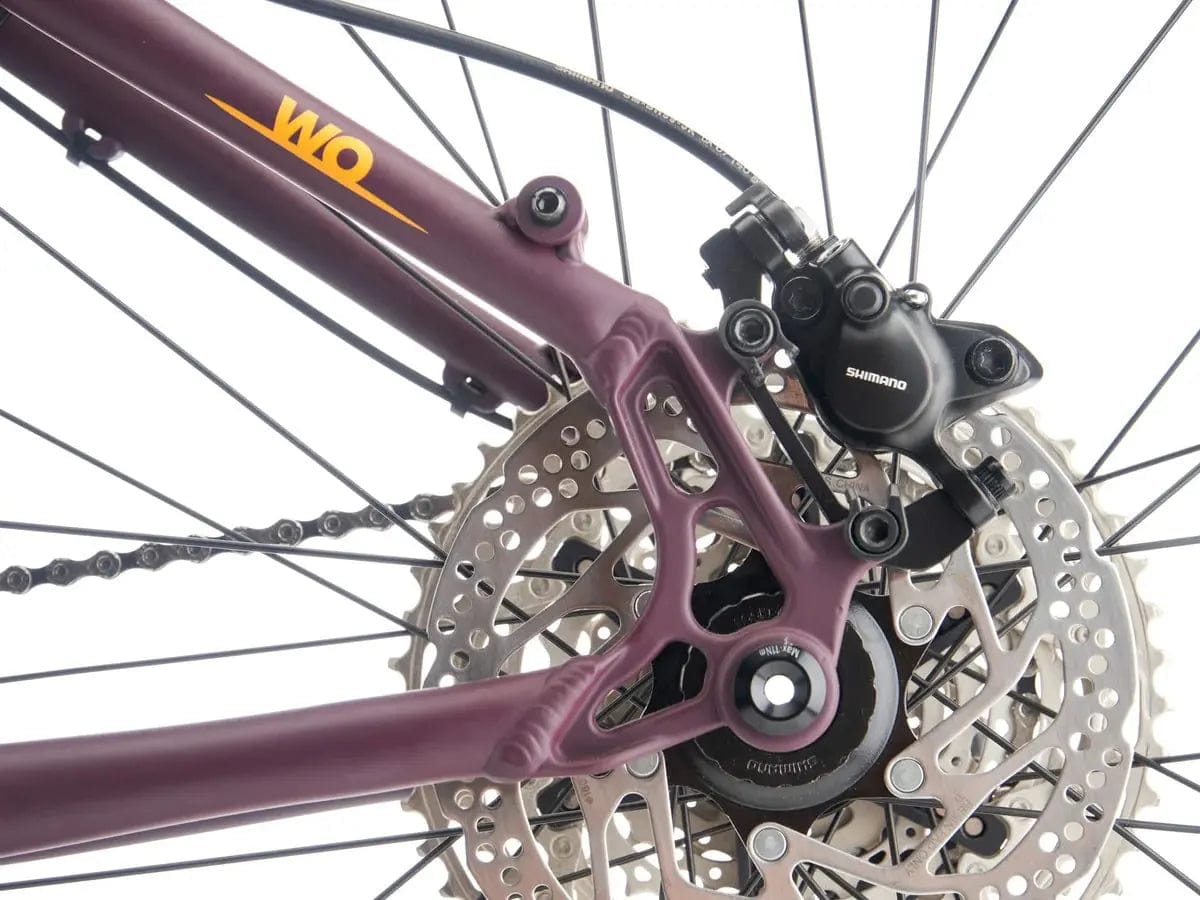

BRAKE CALIPERS	Tektro M280 Hydraulic
FRONT BRAKE ROTOR	Tektro 180mm
REAR BRAKE ROTOR	Tektro 160mm

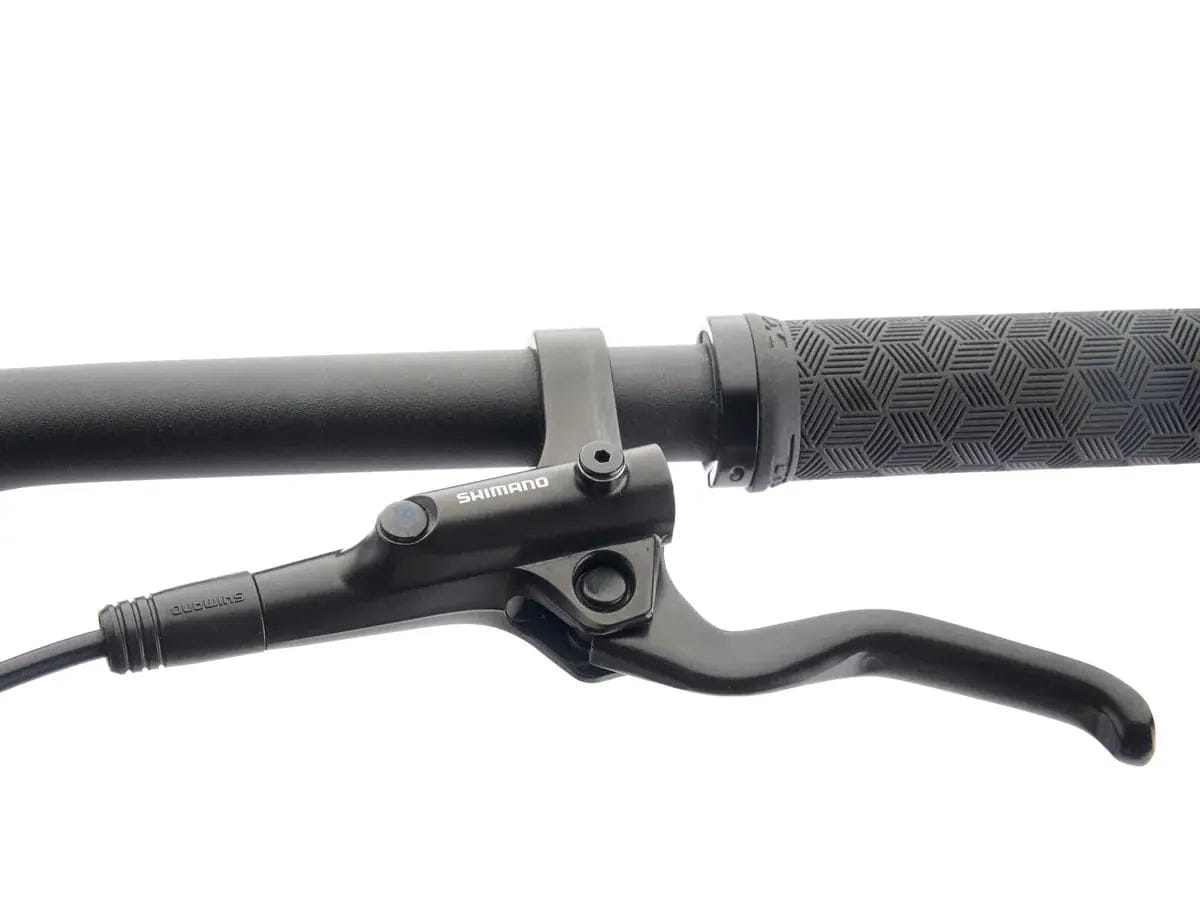

BRAKE LEVERS	Tektro M280 Hydraulic
HEADSET	Feimin FP-H868B

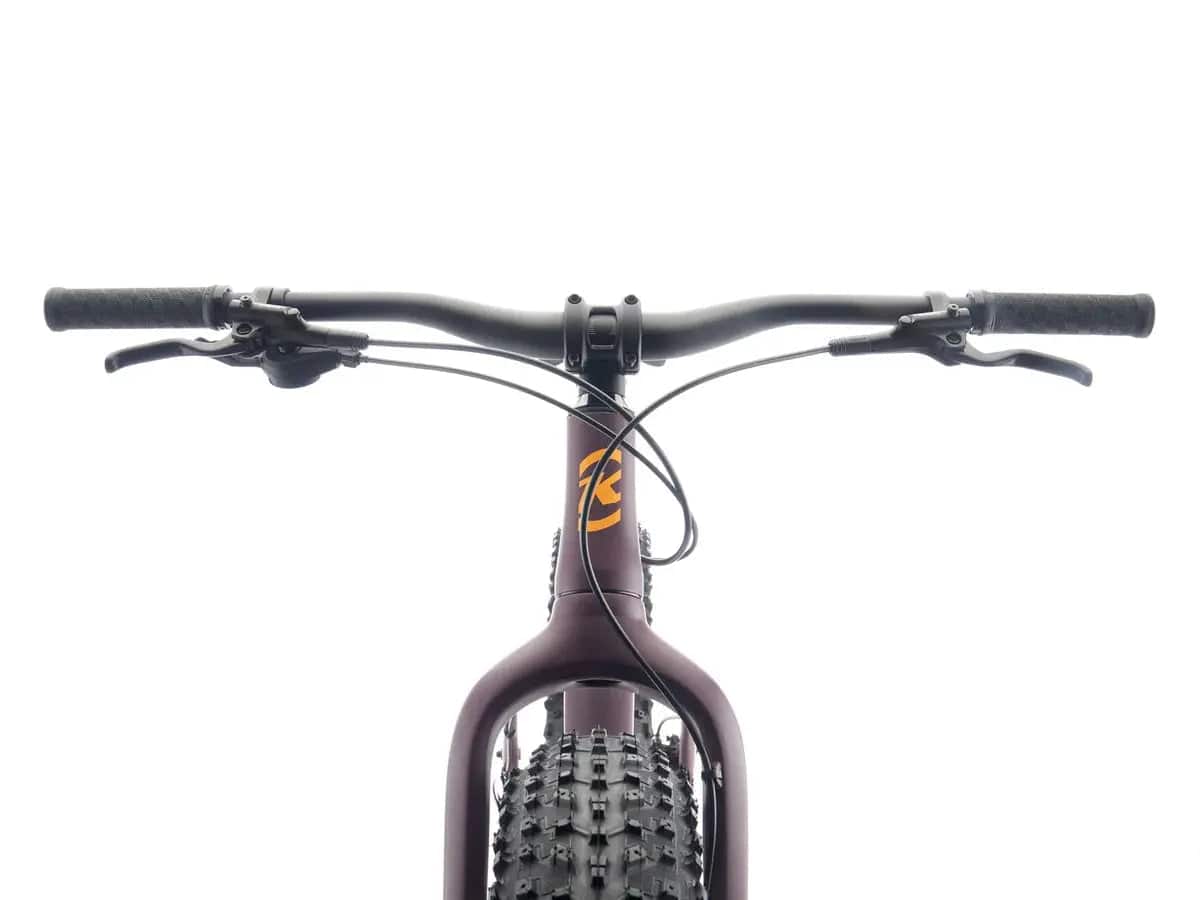

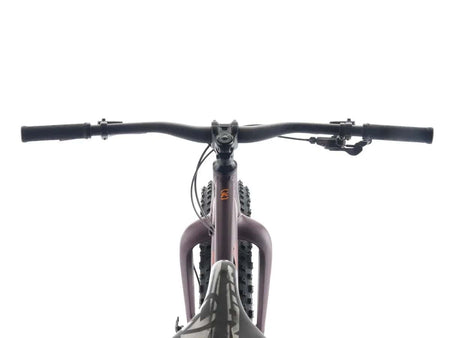

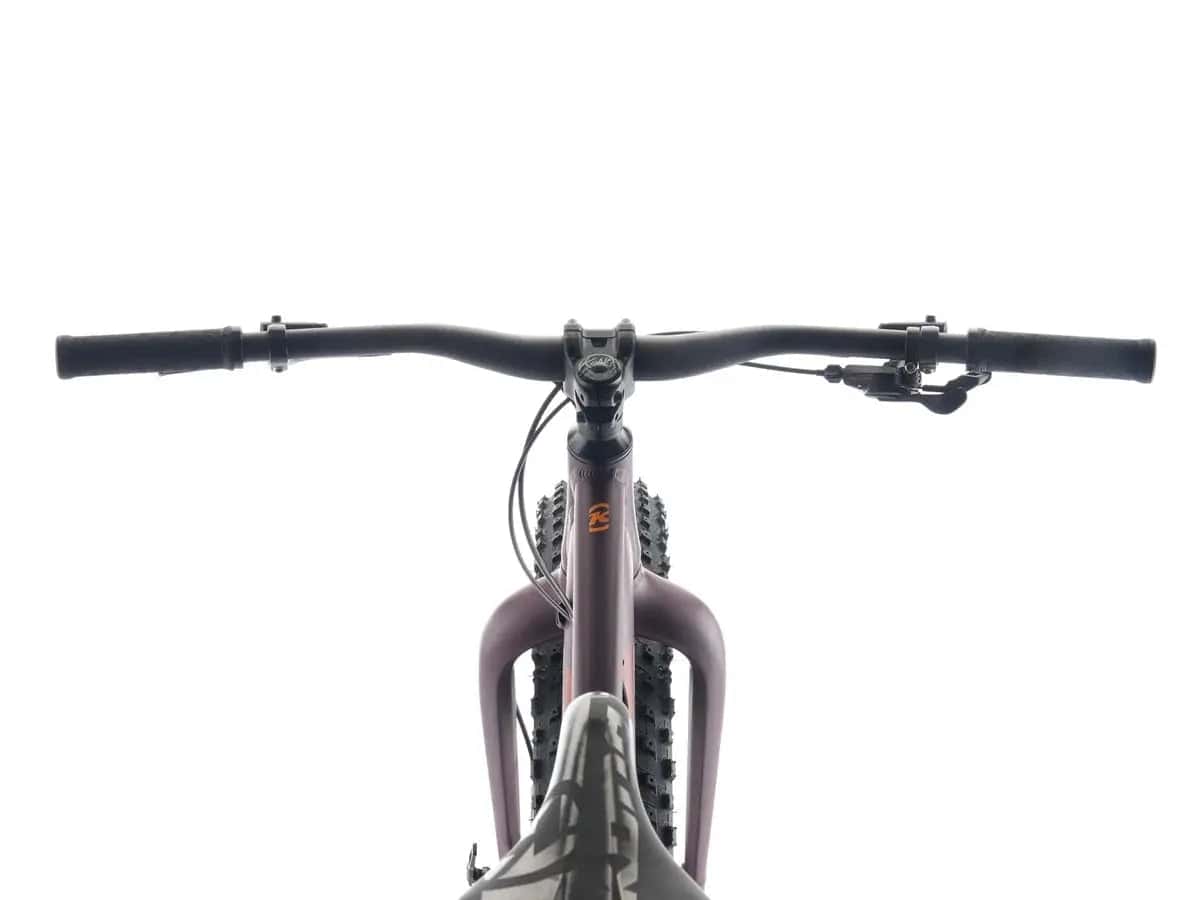

HANDLEBAR	Kona XC/BC 35
STEM	Kona XC/BC 35
SEATPOST	Kona XC/BC 31.6mm
SEAT CLAMP	Kona QR
GRIPS	Kona Key Grip
SADDLE	Kona Fat
FRONT HUB	KT 150x15mm
REAR HUB	KT 197x12mm
SPOKES	Stainless Black 14g

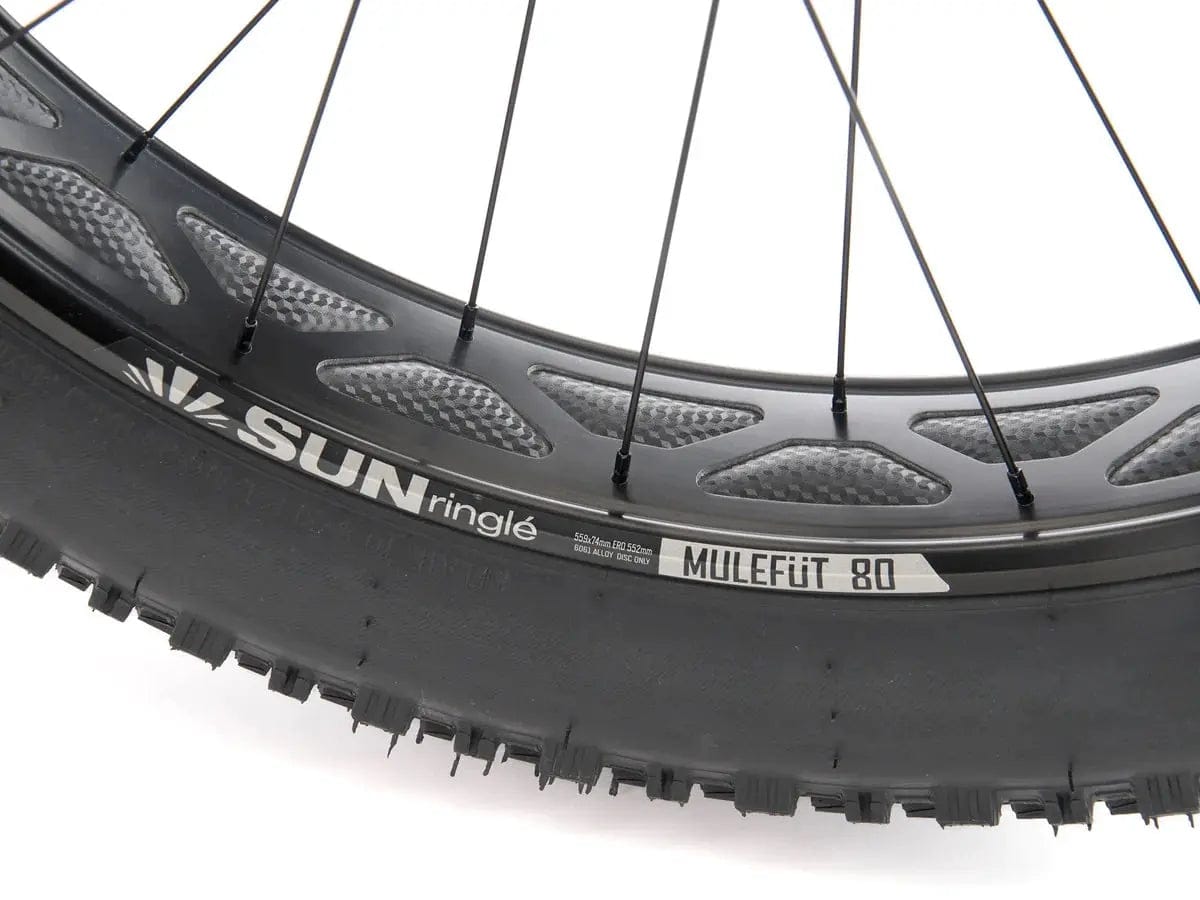

RIMS	Sun Ringle Mulefut 80 Tubeless Ready
FRONT TIRE	Schwalbe Jumbo Jim TR 26x4.8"
REAR TIRE	Schwalbe Jumbo Jim TR 26x4.8"
PAINT COLOR	Matte Plum w/ Oxy Fire Decals
EXTRAS	n/a

All specifications are subject to change without notice

GEOMETRY

	SIZE	S	M	L	XL
1	ST LENGTH	381	432	483	533
2	TT LENGTH	591	619	647	679
3	REACH	405	430	455	485
4	STACK	608	617	627	636
5	STANDOVER	739	768	792	802
6	HT ANGLE	69.0	69.0	69.0	69.0
7	HT LENGTH	120	130	140	150
8	ST ANGLE	73.0	73.0	73.0	73.0
9	CS LENGTH	455	455	455	455
10	BB DROP	60	60	60	60
11	BB HEIGHT	324	324	324	324
12	WHEELBASE	1125	1154	1182	1216
13	FRONT CENTER	677	705	694	767
14	FORK LENGTH	485	485	485	485
15	FORK OFFSET	55	55	55	55

$2,047.00 inc. VAT
