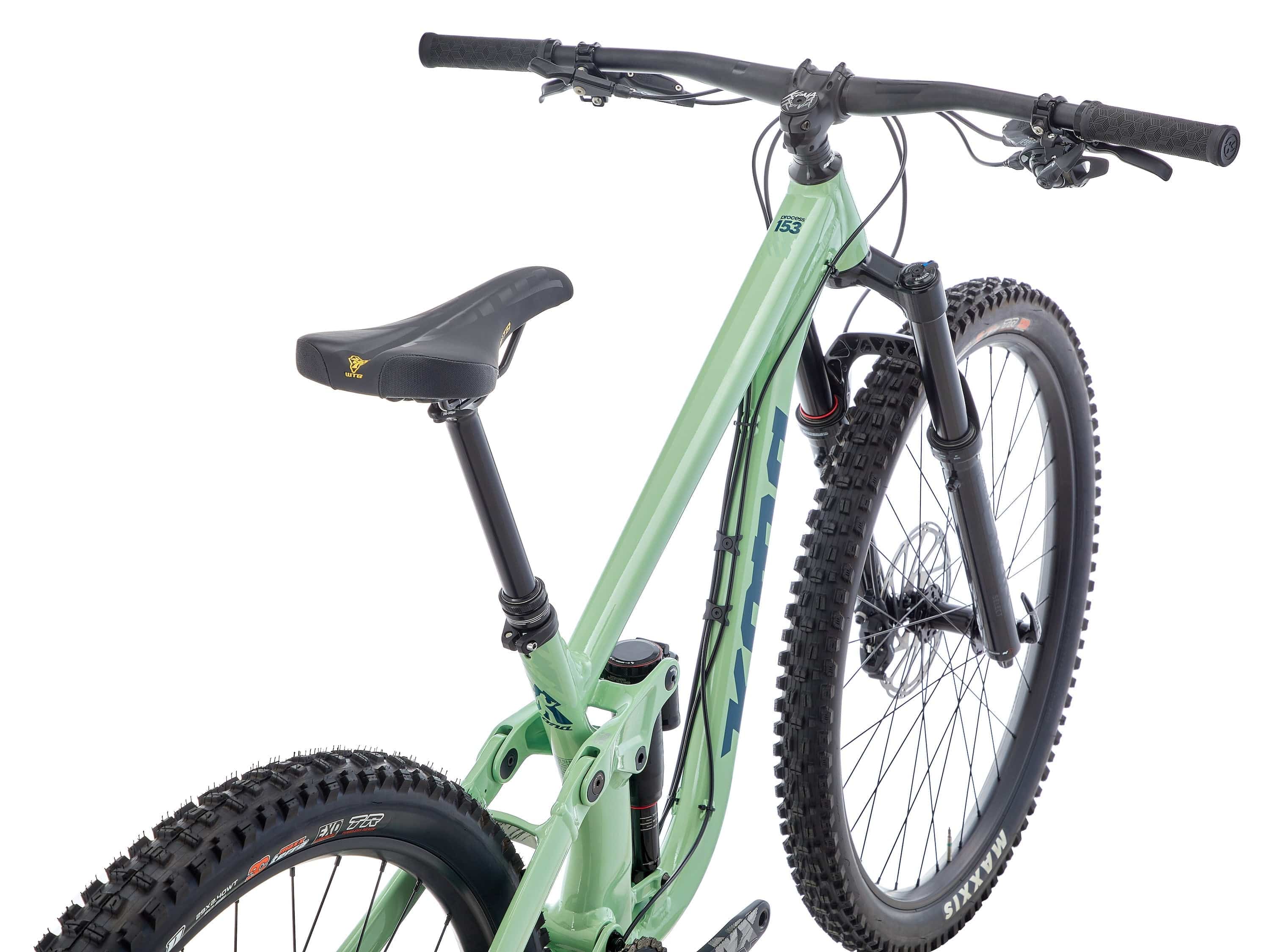

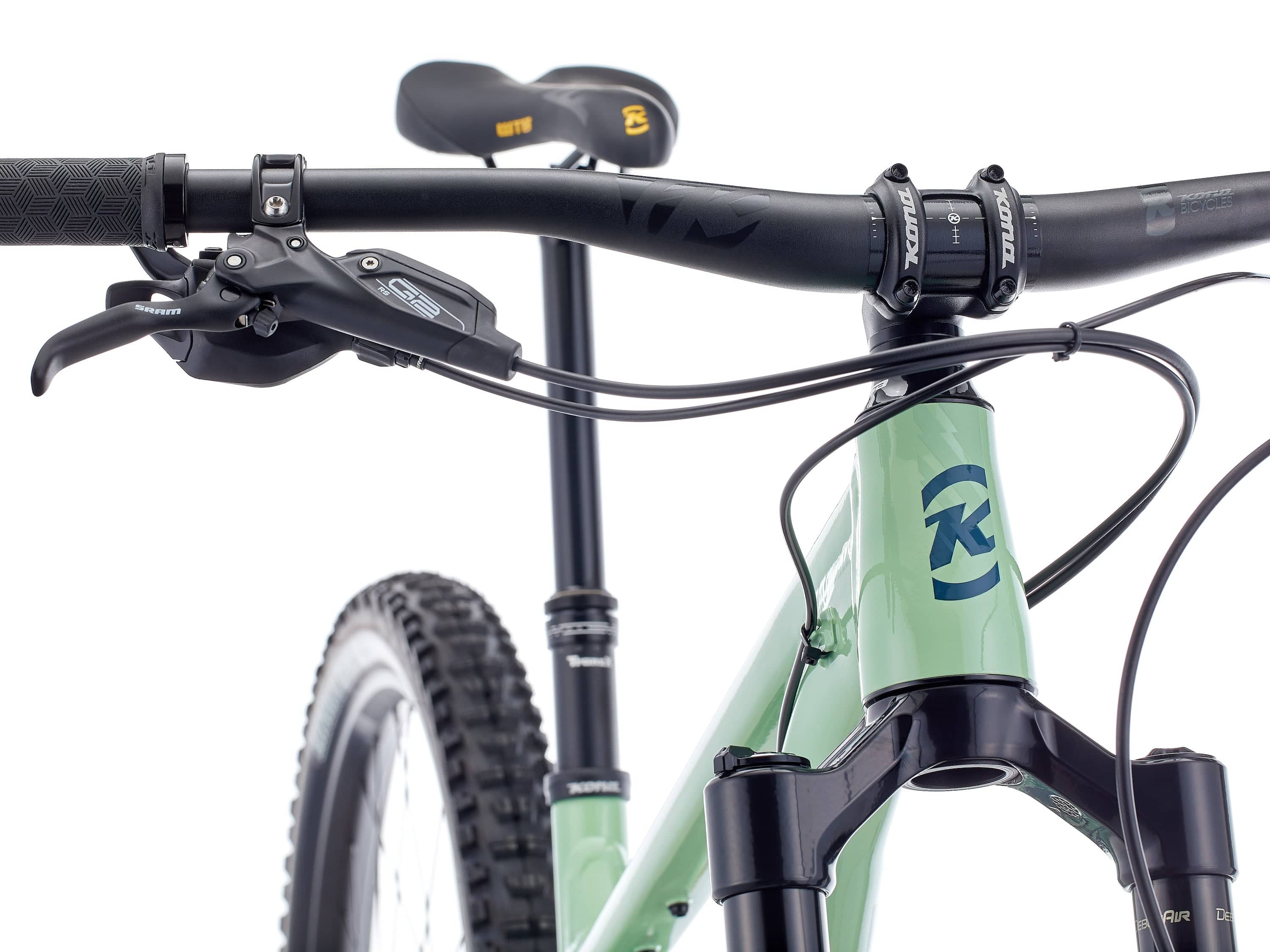

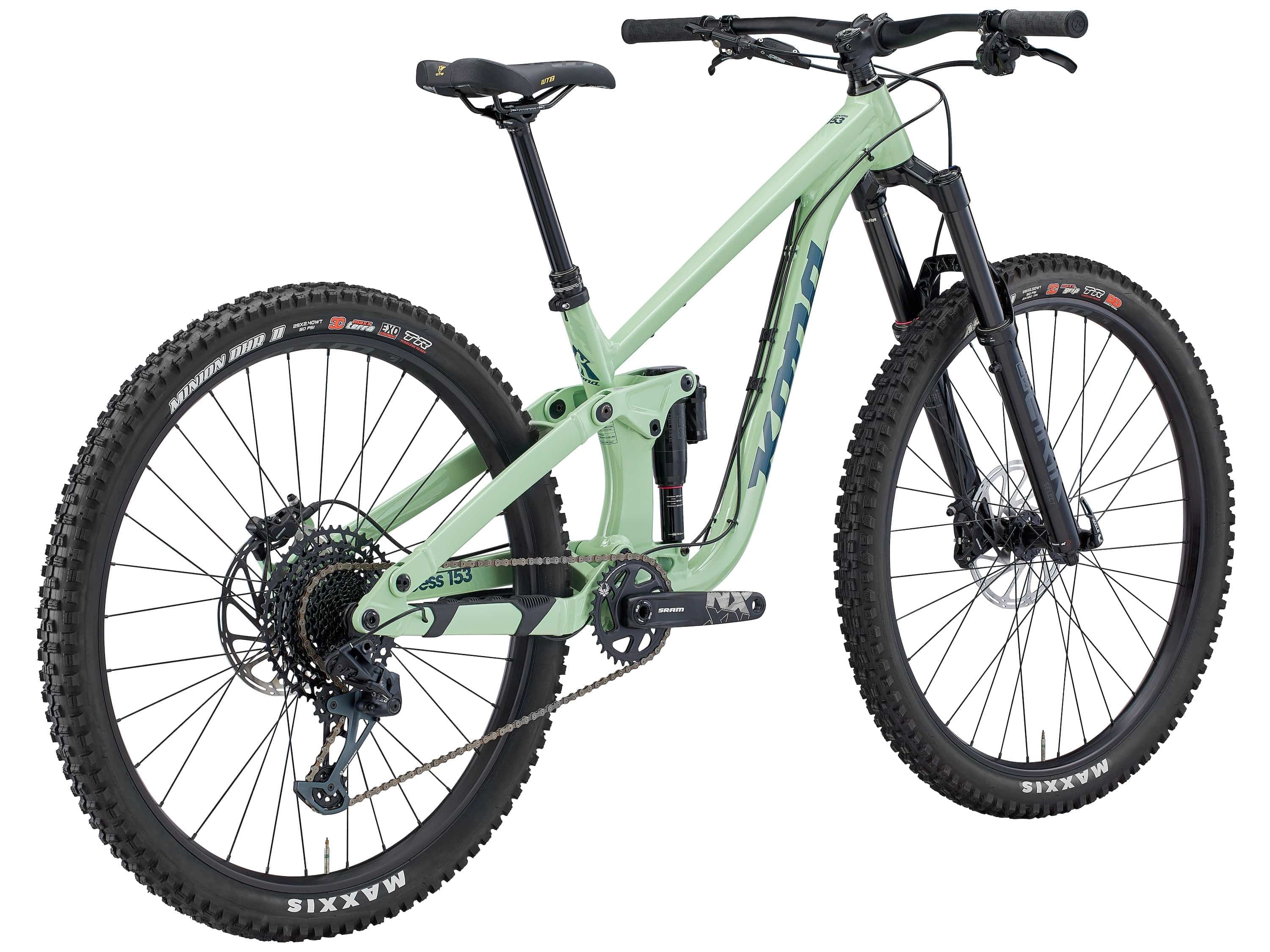

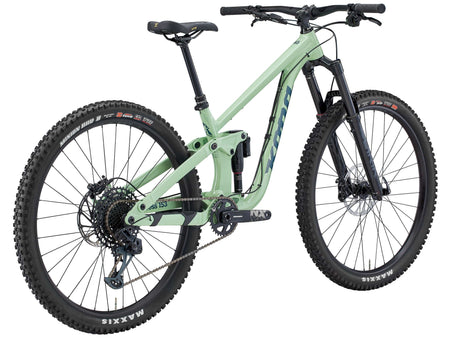

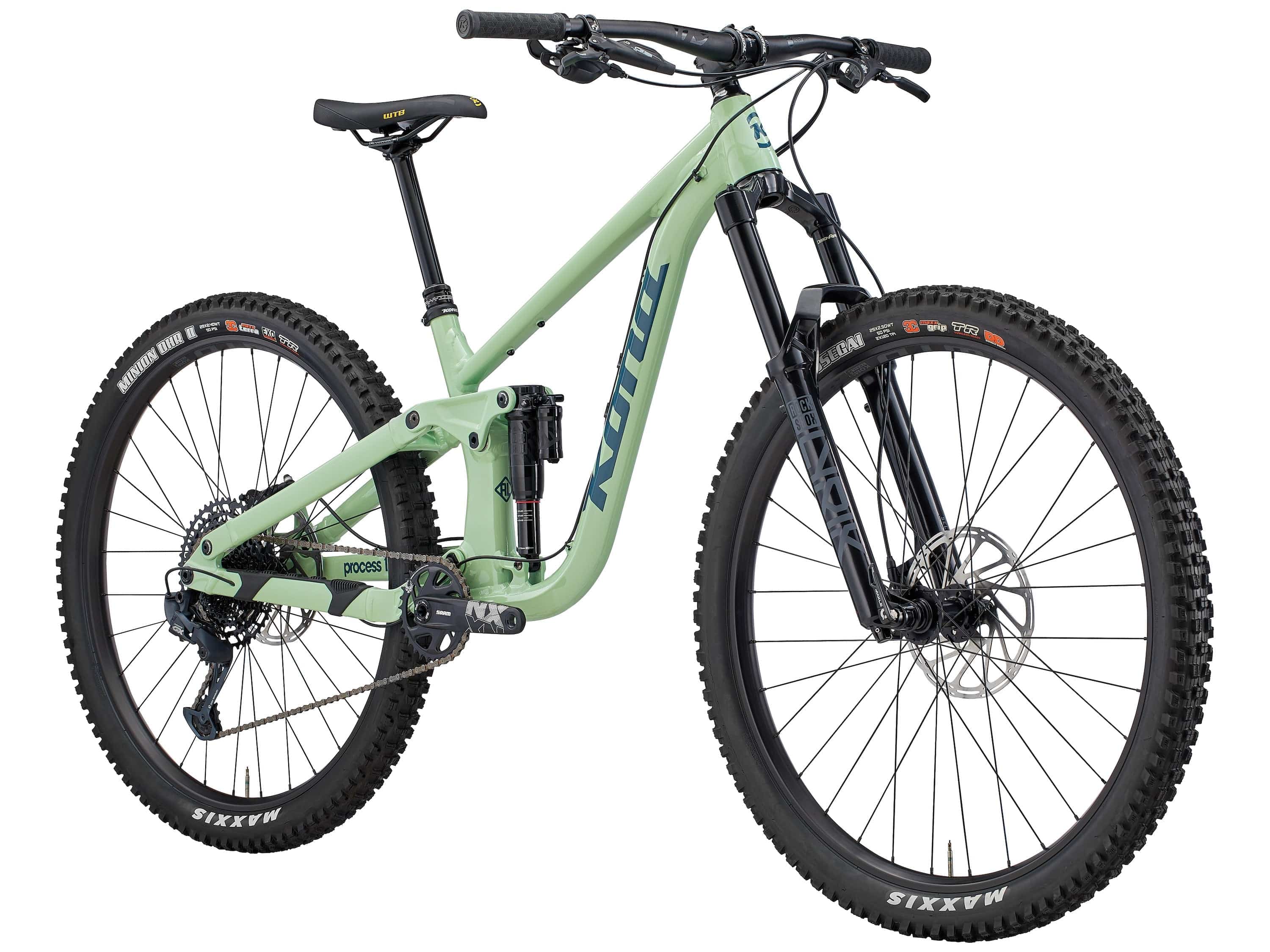

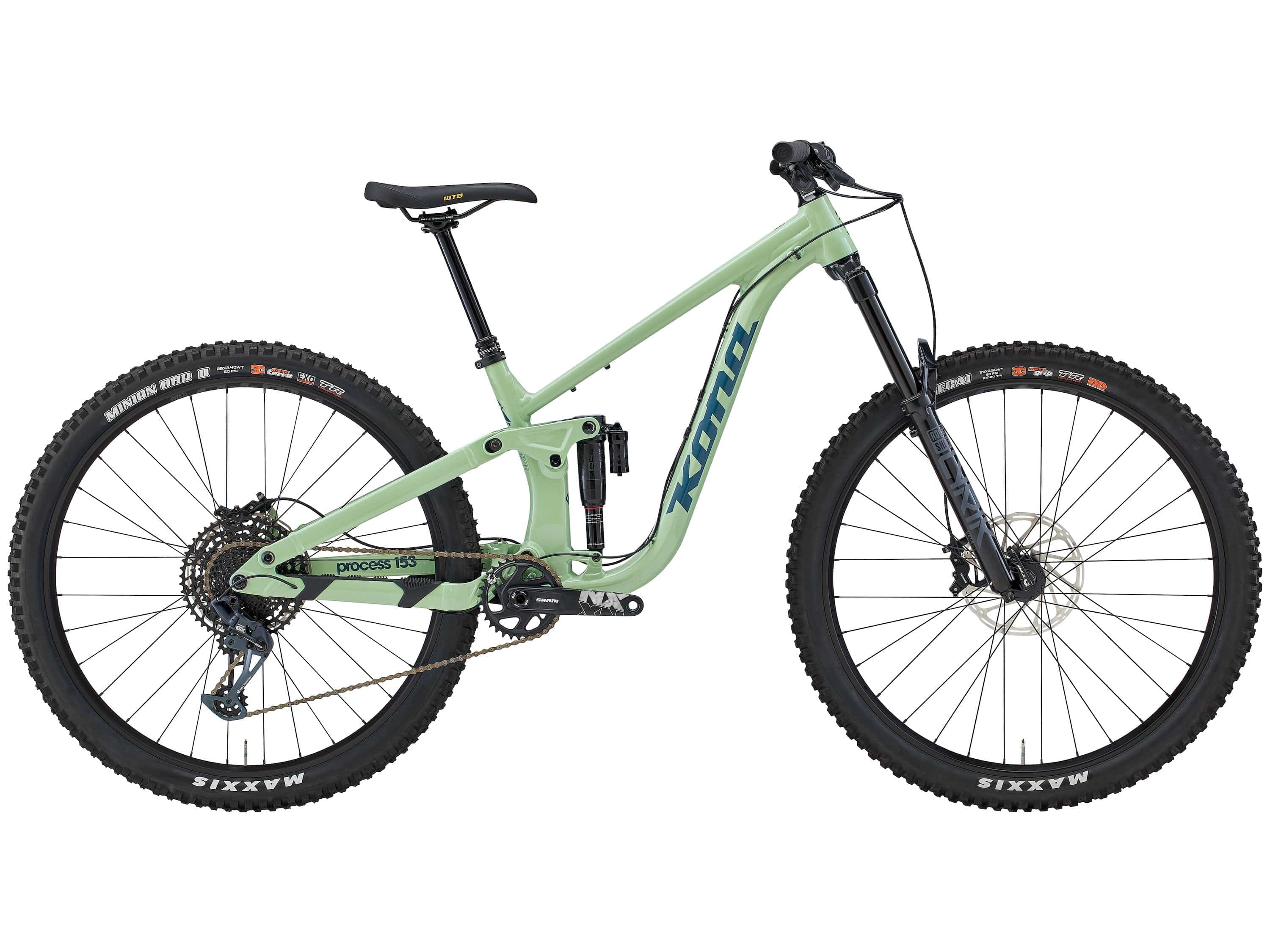

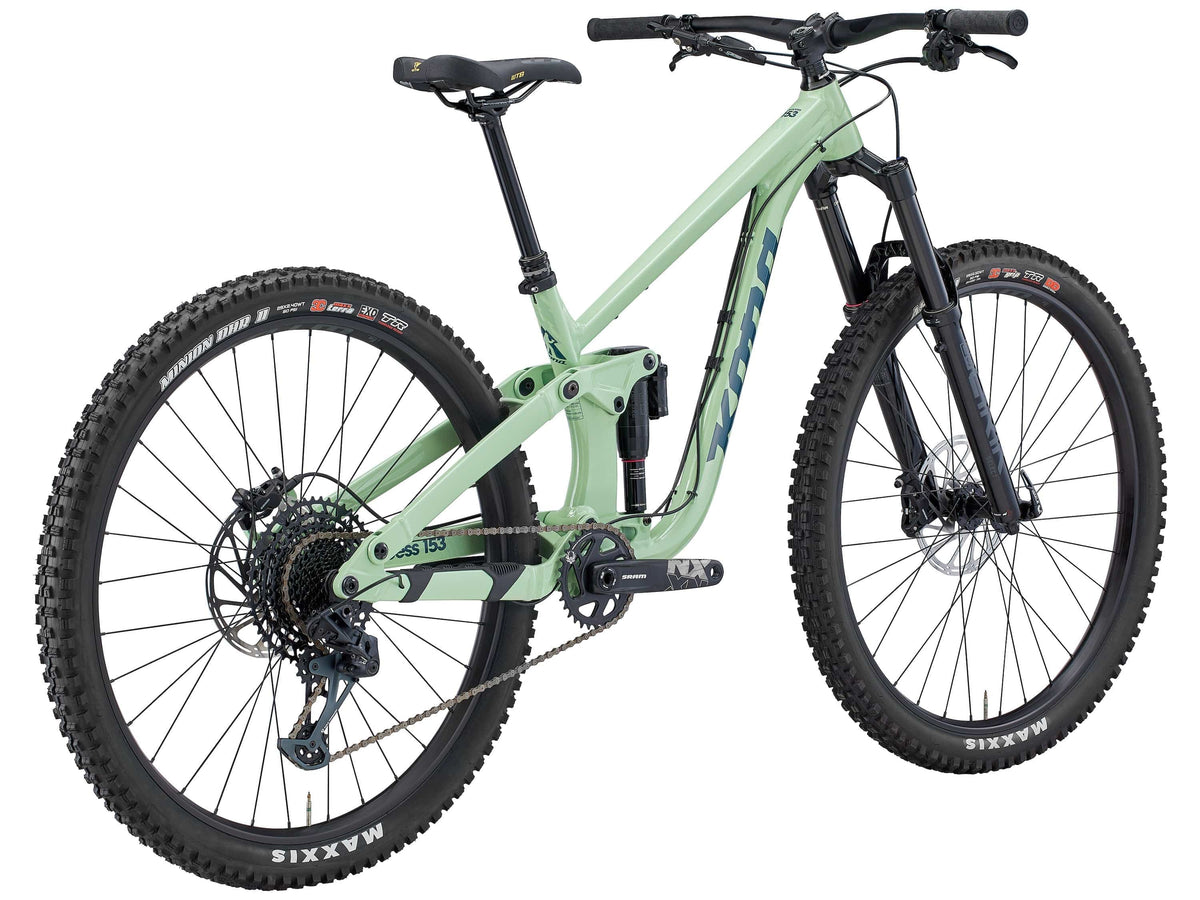

Kona Full Suspension Process 153 DL G3 - Full Suspension

Process 153 DL G3 - Full Suspension

Out of stock

£3,699.00 inc. VAT

Size SM MD LG XL

Product variants

We’re not telling you to quit your job and ride every day… but if we did, we’d advise you to pick up a Process 153 DL on your way out the door. You’re gonna need longevity and dependability as much as you need ripping handling and terrain eating versatility in your new Every Day Is Ride Day life. Mullet-capable geometry, rugged aluminum frame, apocalypse (or sustained unemployment) ready pivot hardware keep you rolling day in, day out. Weekend, weekday, who cares? Seriously, quit your job. Hang a sign when you leave – Gone Shreddin’.

SPECS & GEOMETRY

SPECIFICATIONS

Frame Material	Kona 6061 Aluminum Butted 153mm Travel
Sizes	S, M, L, XL

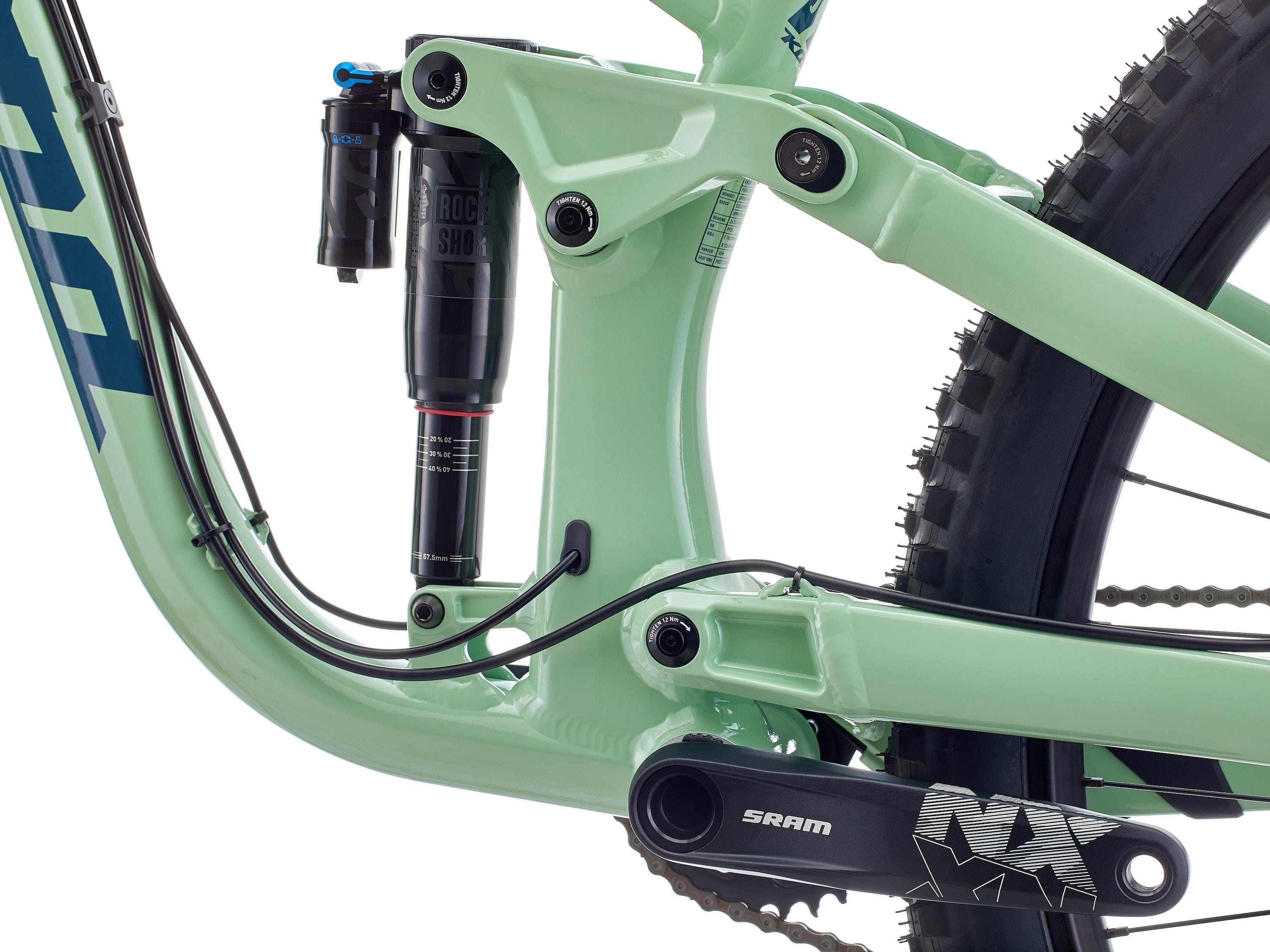

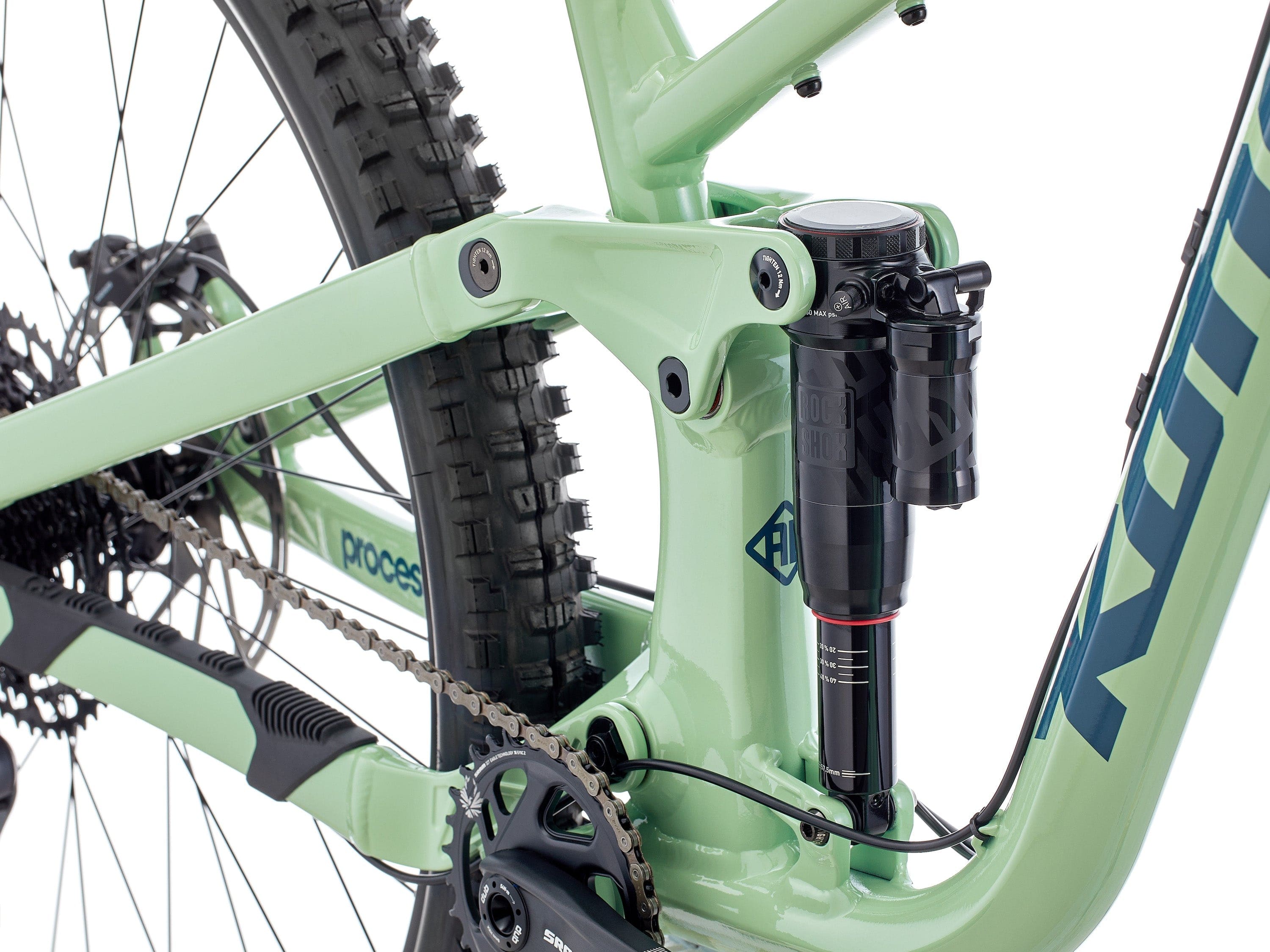

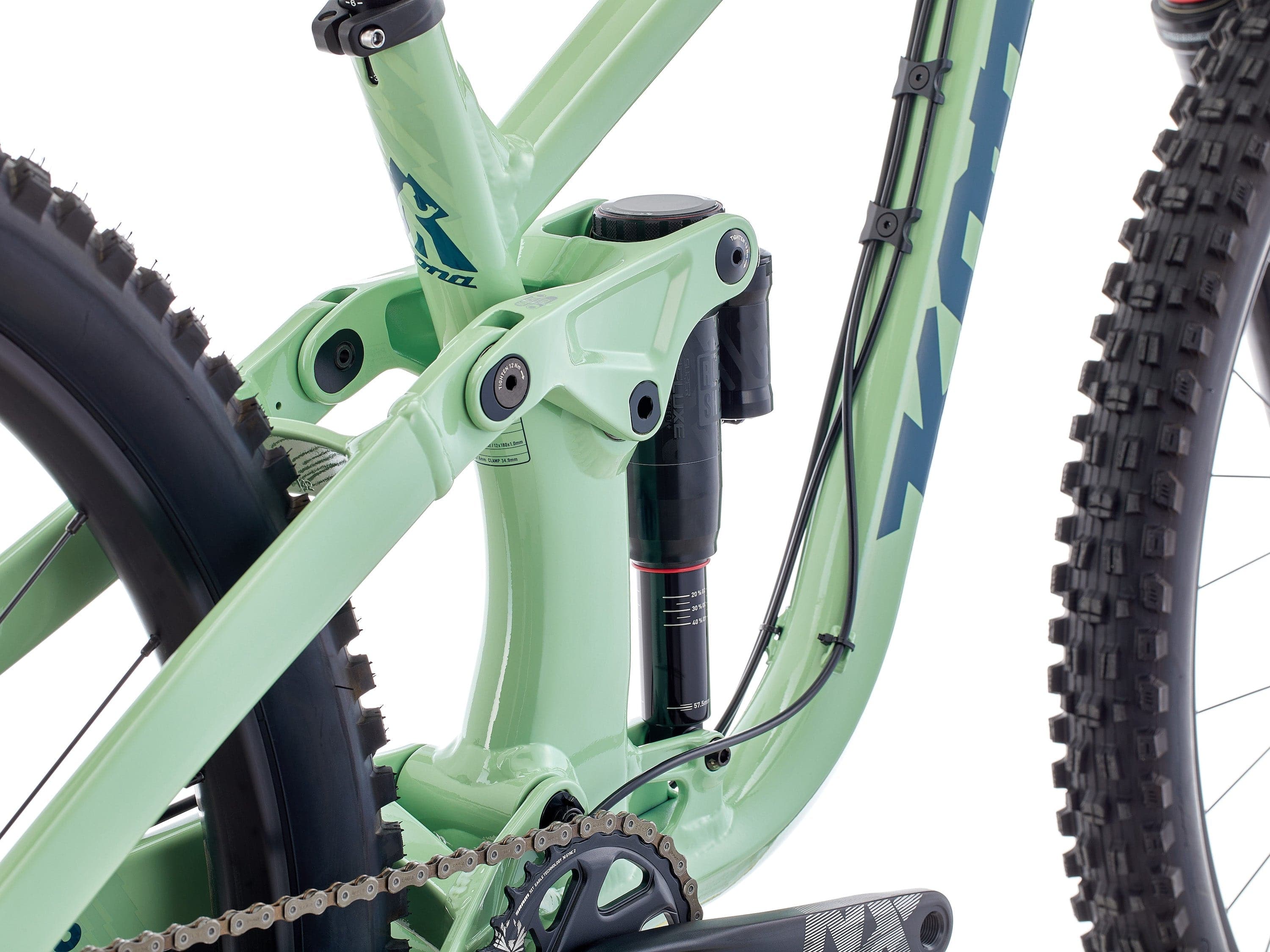

Rear Shock	RockShox Super Deluxe Select Plus Trunnion
Fork	RockShox Lyrik Select RC Charger DebonAir 160mm Tapered 110mm Spacing
Crankarms	SRAM NX Eagle DUB
Chainrings	32t X-Sync Eagle
B/B	SRAM DUB PF92
Pedals	n/a
Chain	SRAM SX-Eagle
Cassette	SRAM NX-Eagle 11-50t 12spd
Chainguide	n/a
F/D	n/a
R/D	SRAM GX-Eagle
Shifters	SRAM NX-Eagle
Brake Calipers	SRAM G2 RS
Front Brake Rotor	SRAM Centerline 200mm
Rear Brake Rotor	SRAM Centerline 180mm
Brake Levers	SRAM G2 RS
Headset	FSA Orbit 1.5 E ZS
Handlebar	Kona XC/BC 35
Stem	Kona XC/BC 35
Seatpost	TranzX Dropper +RAD Internal 31.6mm
Seat Clamp	Kona Clamp
Grips	Kona Key Grip
Saddle	WTB Volt
Front Hub	Formula 110x15mm
Rear Hub	Formula 148x12mm
Spokes	Stainless Black 14g
Rims	WTB KOM Trail i30 TCS
Front Tire	Maxxis Assegai EXO TR 3C 29x2.5" WT
Rear Tire	Maxxis Minion DHR II EXO TR 3C 29x2.4" WT (27.5x2.4" WT size S)
Paint Color	Gloss Jade w/ Strom Blue Decals
Extras	n/a

All specifications are subject to change without notice.

GEOMETRY

	Size	S	M	L	XL
1	ST Length	380	380	420	450
2	TT Length	576	601	628	667
3	Reach	430	455	480	515
4	Stack	620	620	625	635
5	Standover	700	700	710	720
6	HT Angle	64.5	64.5	64.5	64.5
7	HT Length	100	100	105	116
8	ST Angle	76.9	76.9	76.7	76.6
9	CS Length	435	435	435	435
10	BB Drop	20	30	30	30
11	BB Height	345	345	345	345
12	Wheelbase	1190	1215	1244	1284
13	Front Center	756	781	811	851
14	Fork Length	571	571	571	571
15	Fork Offset	44	44	44	44
