Kona Full Suspension Process X CR/DL - Full Suspension - Purple

Process X CR/DL - Full Suspension - Purple

Out of stock

£5,499.00 inc. VAT

Size SM MD LG XL

Product variants

If the Undertaker rode a mountain bike, he’d undoubtedly ride the Process X CR DL. Aimed at nothing but ripping riders on the most technical of terrain, the Process X DL is a monster on the trails. A full carbon frame features high-end components that leave nothing to be desired. 170mm of plush travel ensures that even the biggest hits are well tamed. Clean lines, fewer cables, and more badass than ever before, the Process X CR DL is as stealthy as it is aggressive.

Frame Material	Kona Carbon 162mm Travel
Sizes	S, M, L, XL

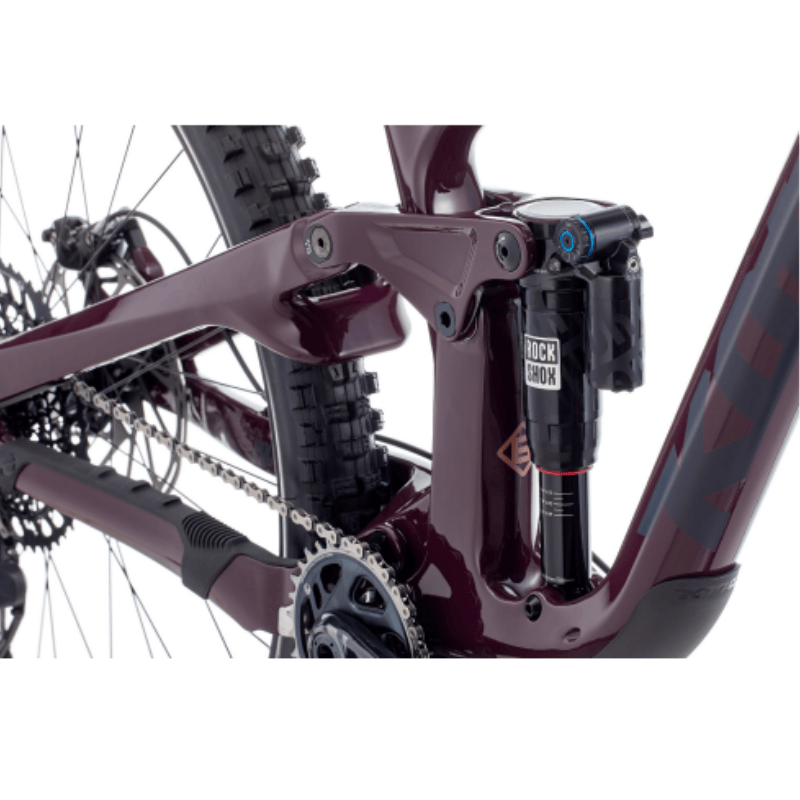

Rear Shock	RockShox Super Deluxe Ultimate Trunnion
Fork	RockShox Zeb Ultimate RC2 Charger 2.1 DebonAir 170mm Tapered 110mm Spacing
Crankarms	SRAM GX-Eagle Carbon DUB
Chainrings	32t X-Sync Eagle
B/B	SRAM DUB PF92
Pedals	n/a
Chain	SRAM GX-Eagle
Cassette	SRAM X01-Eagle 10-52t 12spd
Chainguide	n/a
F/D	n/a
R/D	SRAM GX AXS
Shifters	SRAM GX AXS
Brake Calipers	SRAM Code RSC
Front Brake Rotor	SRAM Centerline 200mm
Rear Brake Rotor	SRAM Centerline 200mm
Brake Levers	SRAM Code RSC
Headset	FSA Orbit 1.5 EP ZS
Handlebar	Kona XC/BC 35
Stem	Kona XC/BC 35
Seatpost	Rock Shox Reverb w/1x Remote Lever 31.6mm
Seat Clamp	Kona Clamp
Grips	Kona Key Grip
Saddle	WTB Volt
Front Hub	DT Swiss 350 110x15mm
Rear Hub	DT Swiss 350 148x12mm
Spokes	Double Butted Spokes â 14/15/14g
Rims	WTB KOM Trail i30 TCS
Front Tire	Maxxis Assegai EXO+ TR 3C 29x2.5" WT
Rear Tire	Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT (27.5x2.4" WT size S)
Paint Color	Gloss Plum w/ Matte Ink & Metallic Bronze Decals

GEOMETRY

	Size	S	M	L	XL
1	ST Length	380	380	420	450
2	TT Length	569	594	623	664
3	Reach	440	465	490	525
4	Stack	615	615	625	635
5	Standover	690	700	710	720
6	HT Angle	63.5	63.5	63.5	63.5
7	HT Length	94	94	105	116
8	ST Angle	78.2	78.2	78.0	77.9
9	CS Length	435 [450]	435 [450]	435 [450]	435 [450]
10	BB Drop	20	30	30	30
11	BB Height	345	345	345	345
12	Wheelbase	1213 [1228]	1238 [1253]	1268 [1283]	1308 [1323]
13	Front Center	779	804	834	874
14	Fork Length	581	581	581	581
15	Fork Offset	42	42	42	42
