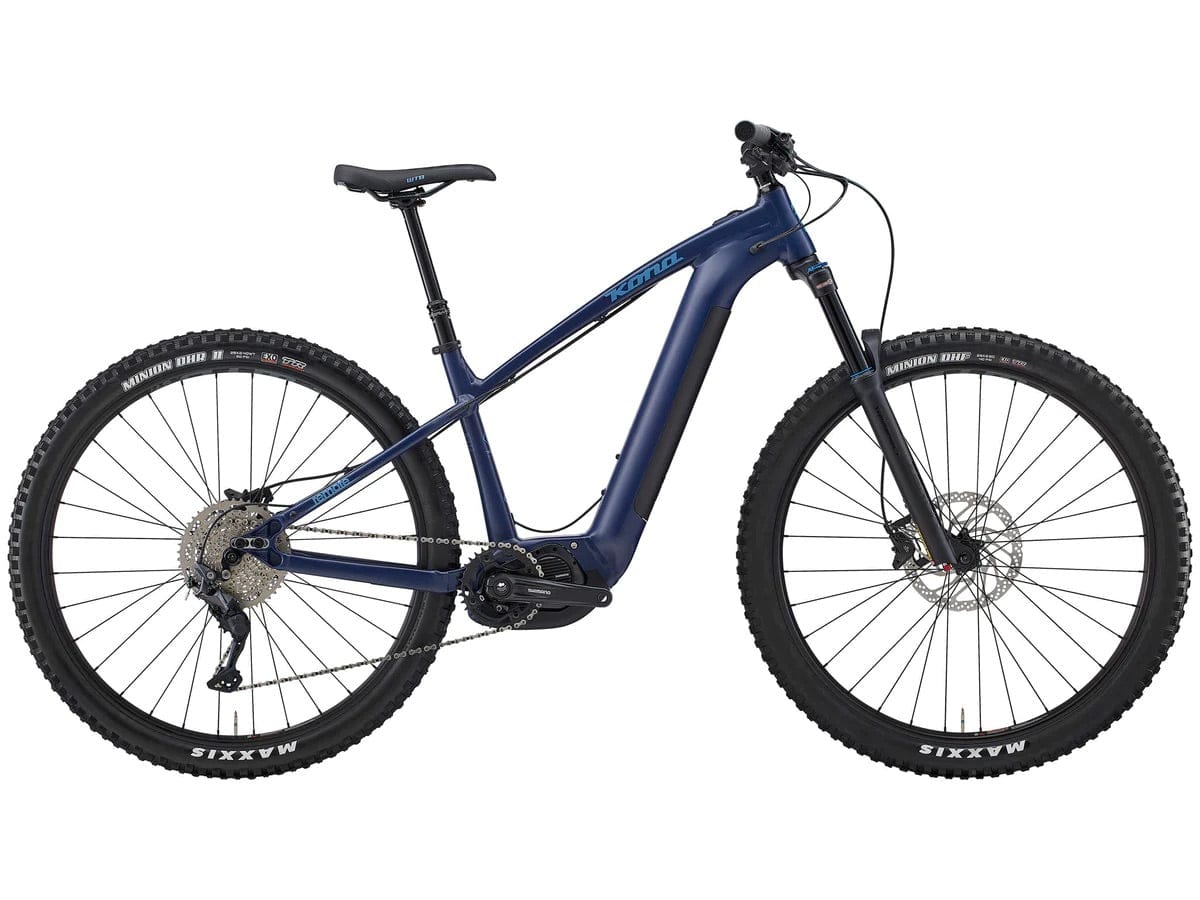

Remote - Electric

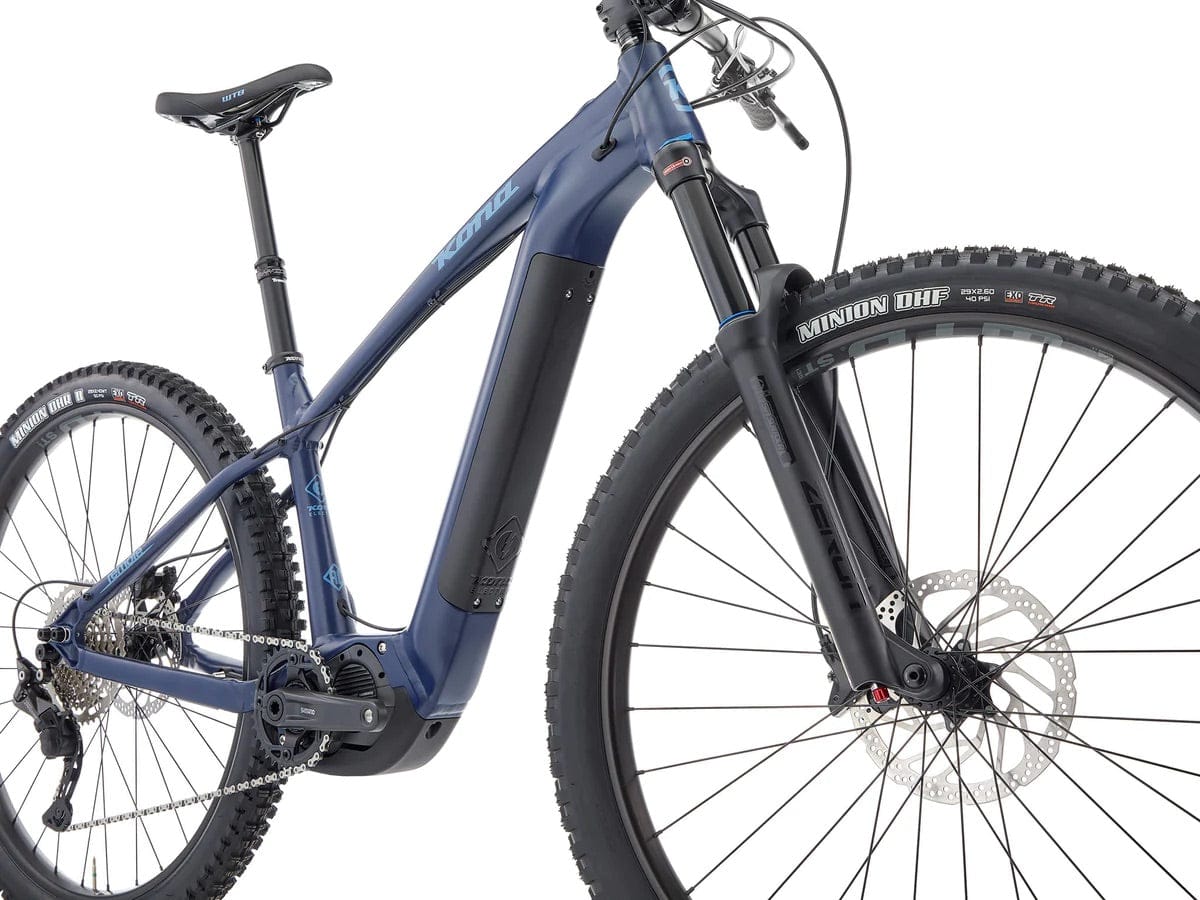

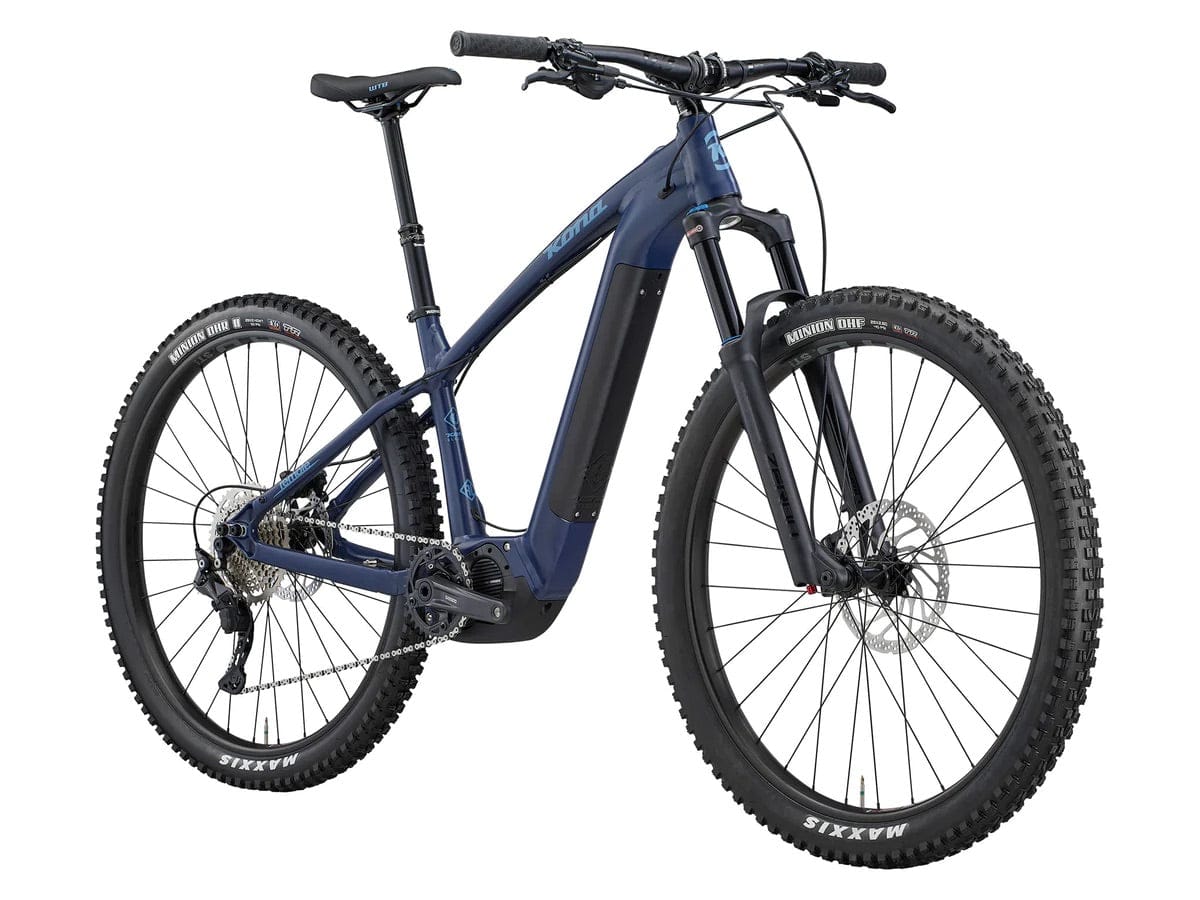

The Remote has become the veteran of the Kona e-MTB lineup. Itโs been a top choice for trail builders, backwoods explorers and sportsmen of all kinds. Derived from the Honzo, its frame brings a sporty version to the masses that holds a smooth-operating Shimano battery and motor. 140mm of front suspension keeps the technical terrain at bay. A 10-speed drivetrain provides reliable shifting while hydraulic disc brakes keep the speed in check. The Remote is wildly fun, practical, and perhaps the perfect way to dip your toe into the eBike waters!
| B36RE01 |
| B36RE03 |
| B36RE05 |
| B36RE06 |
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME MATERIAL | Kona 6061 Aluminum Butted |
| SIZES | S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | Suntour Zeron35 140mm Tapered 110 Spacing |
| CRANKARMS | Shimano E8000 |
| CHAINRINGS | 34t |
| B/B | n/a |
| PEDALS | n/a |
| CHAIN | KMC X10 |
| CASSETTE | Shimano Deore 11-46t 10spd |
| CHAINGUIDE | n/a |
| F/D | n/a |
| R/D | Shimano Deore |
| SHIFTERS | Shimano Deore |

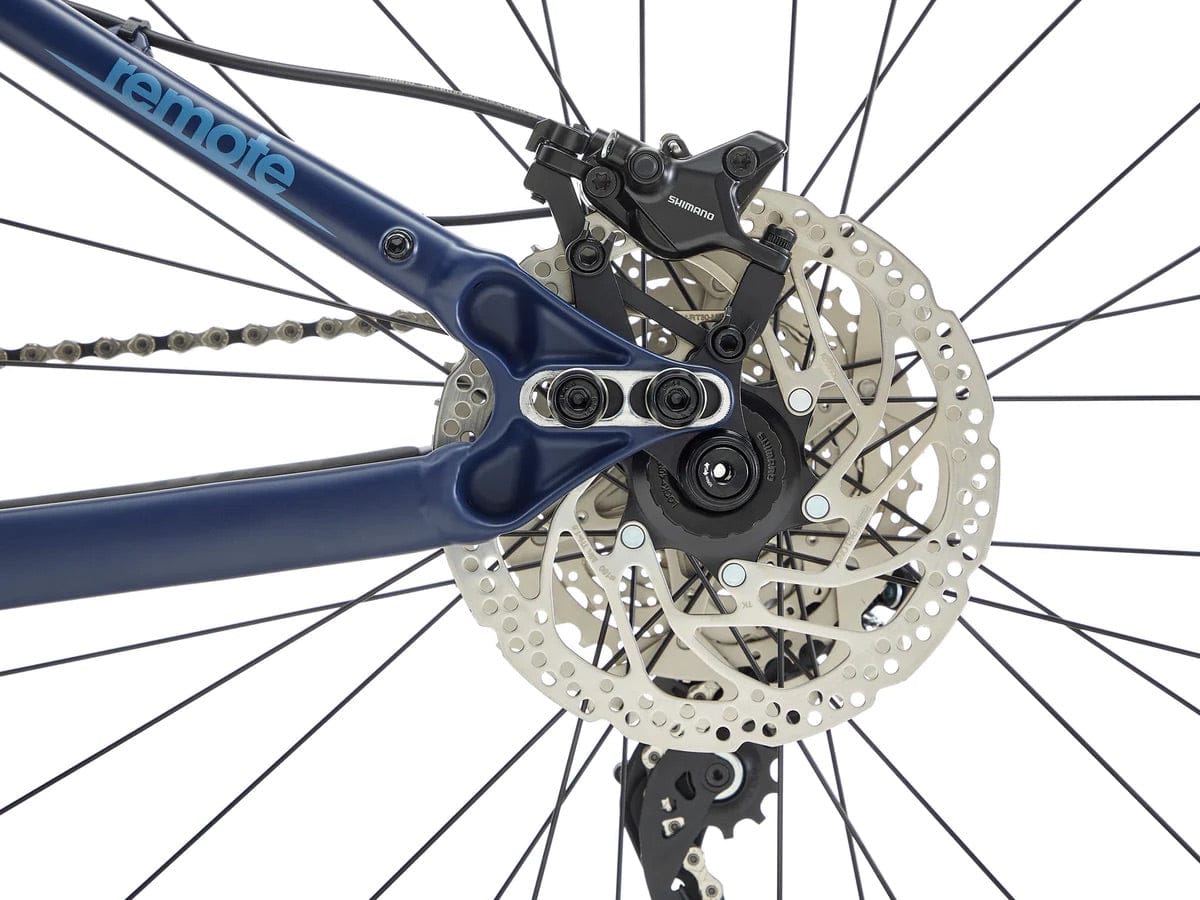

| BRAKE CALIPERS | Shimano MT410 Hydrualic |
| FRONT BRAKE ROTOR | Shimano RT30 203mm |
| REAR BRAKE ROTOR | Shimano RT30 180mm |
| BRAKE LEVERS | Shimano M4100 Hydrualic |
| HEADSET | FSA No.57B |
| HANDLEBAR | Kona XC/BC 35 |
| STEM | Kona XC/BC 35 |

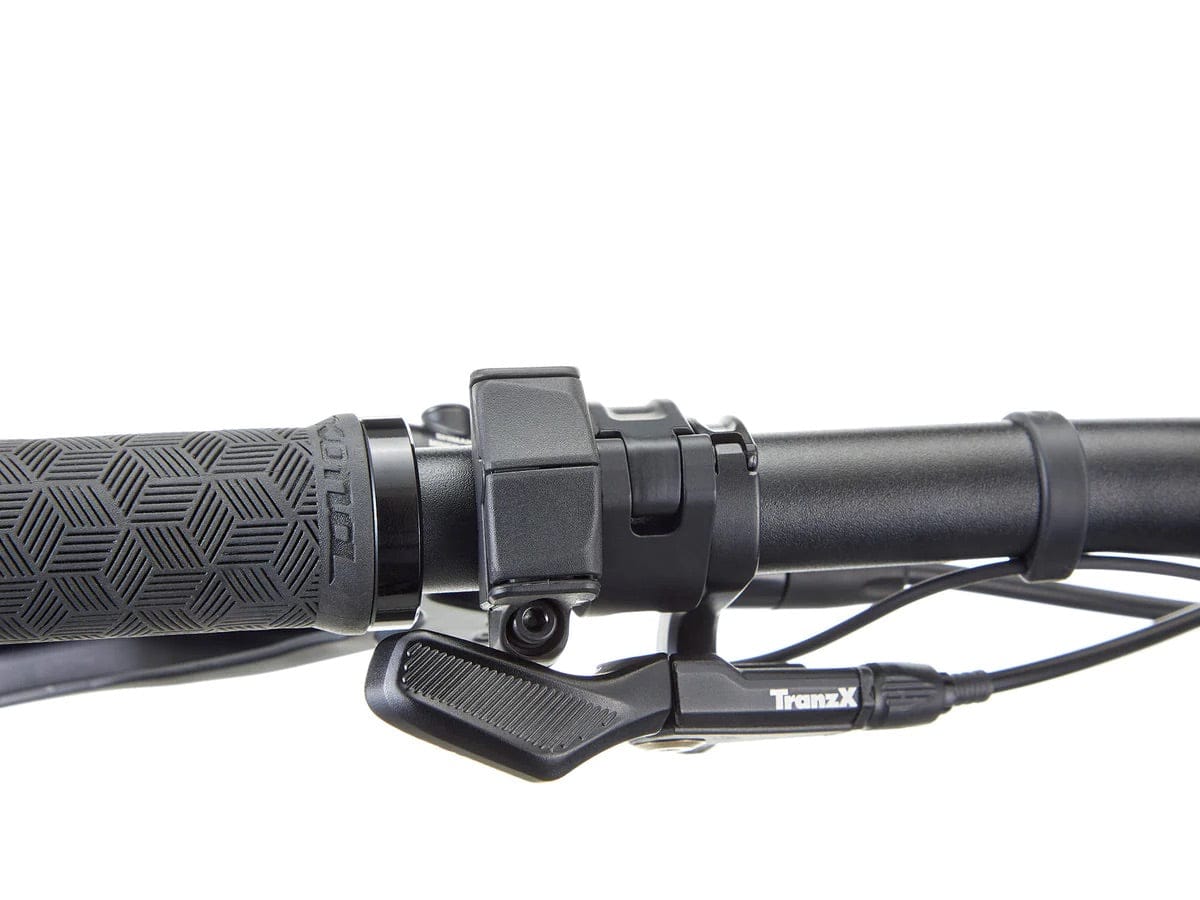

| SEATPOST | TranzX Dropper Internal 31.6mm |
| SEAT CLAMP | Kona Clamp |
| GRIPS | Kona Key Grip |
| SADDLE | WTB Volt |
| FRONT HUB | Shimano 110x15mm |
| REAR HUB | Shimano 148x12mm |
| SPOKES | Stainless Black 14g |
| RIMS | WTB ST i35 TCS 2.0 |
| FRONT TIRE | Maxxis Minion DHF EXO TR DUAL 29x2.6" |
| REAR TIRE | Maxxis Minion DHR II EXO TR DUAL 29x2.4" WT |

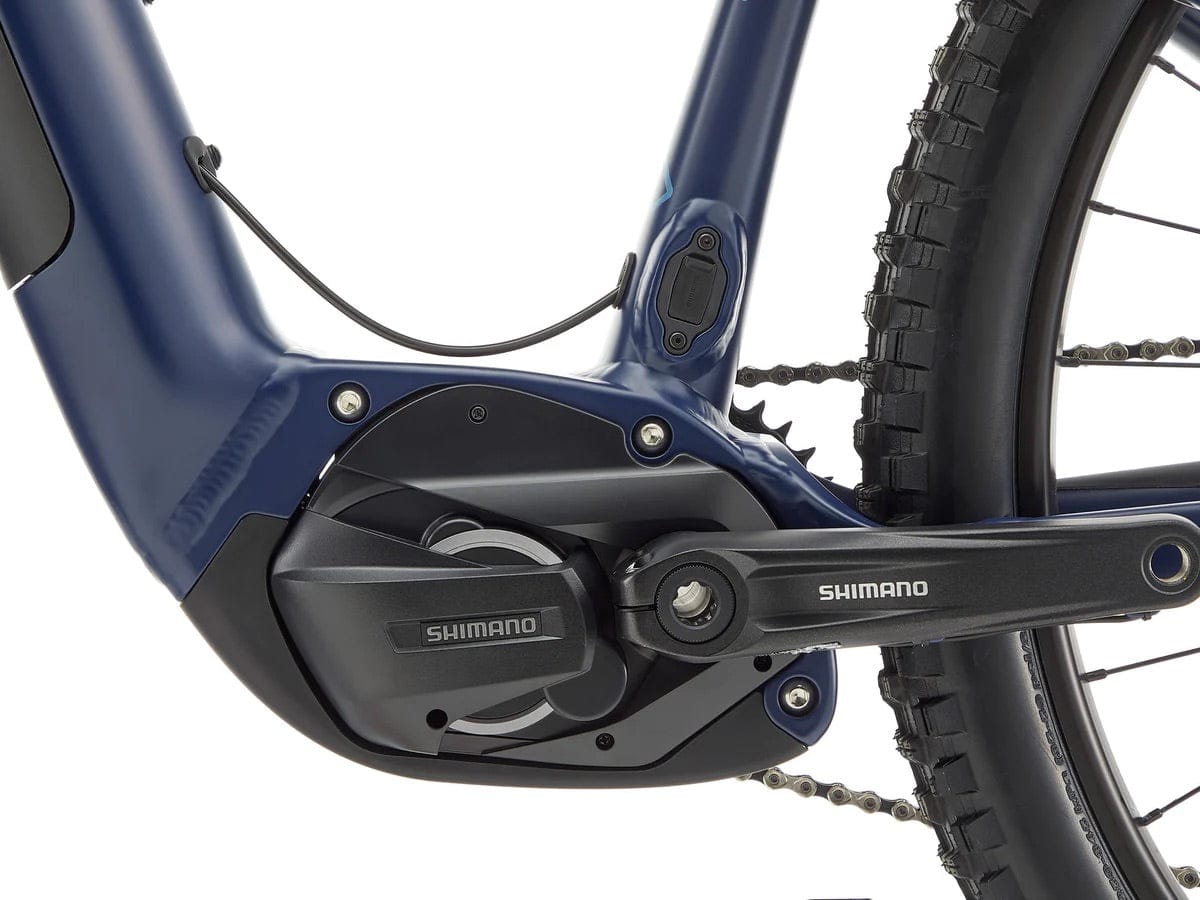

| DRIVEUNIT | Shimano E7000 20MPH |
| BATTERY | Shimano 504Wh |

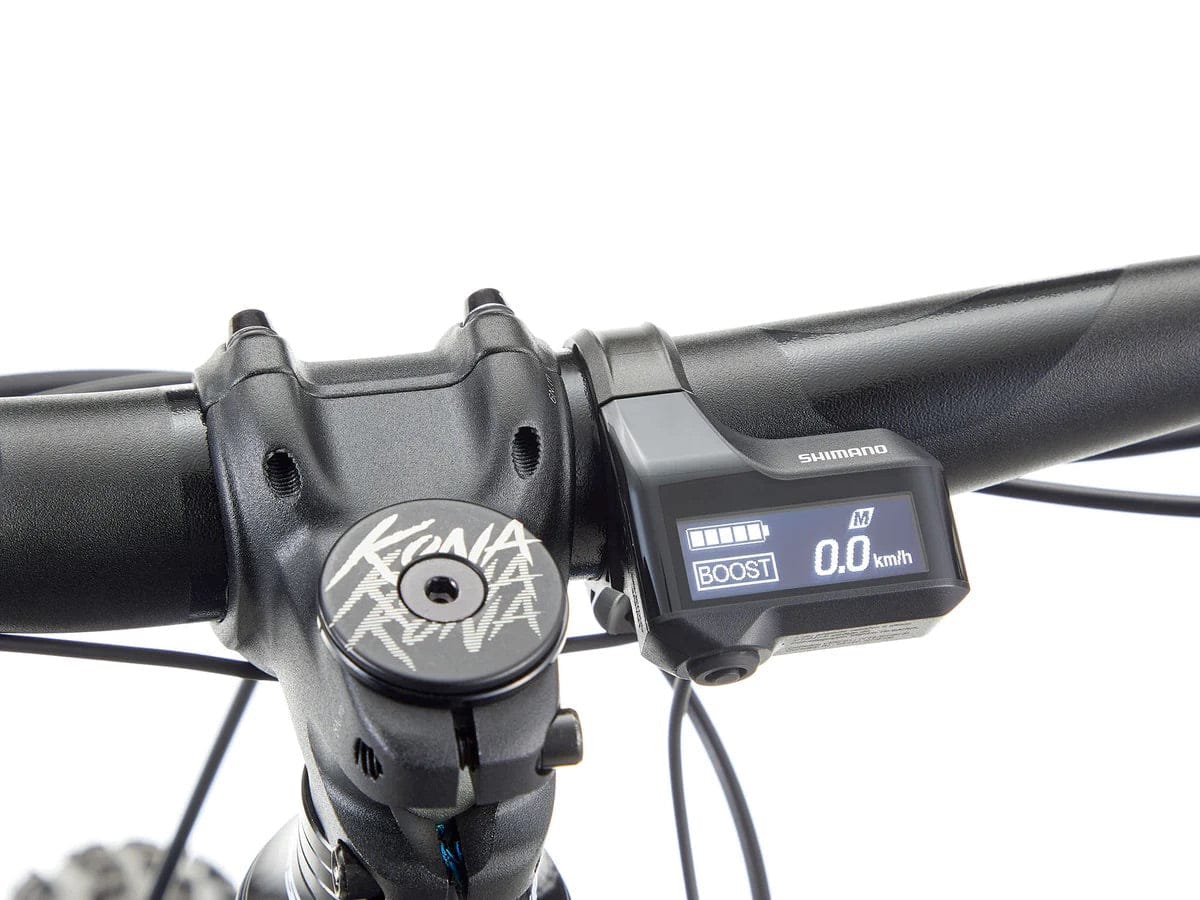

| DISPLAY | Shimano SC-E7000 Display |

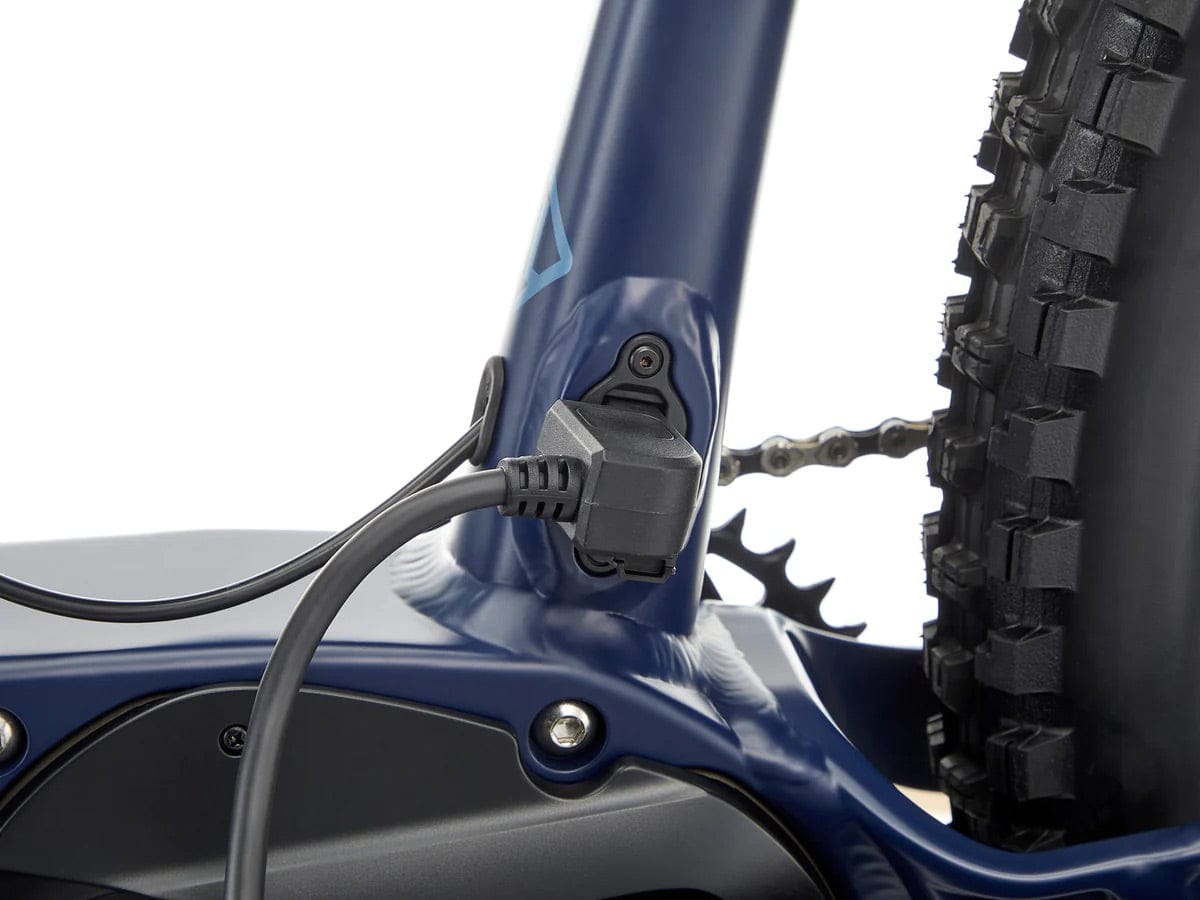

| CHARGER | Shimano STEPS 2A |
| BATTERYLOCK | n/a |
| PAINT COLOUR | Matte Midnight w/ Blue-Grey Decals |
| EXTRAS | n/a |
GEOMETRY
| SIZE | S | M | L | XL | |
| 1 | ST LENGTH | 385 | 410 | 450 | 485 |
| 2 | TT LENGTH | 586 | 612 | 639 | 677 |
| 3 | REACH | 425 | 450 | 475 | 510 |
| 4 | STACK | 645 | 650 | 659 | 668 |
| 5 | STANDOVER | 739 | 736 | 734 | 734 |
| 6 | HT ANGLE | 66.0 | 66.0 | 66.0 | 66.0 |
| 7 | HT LENGTH | 115 | 120 | 130 | 140 |
| 8 | ST ANGLE | 76.0 | 76.0 | 76.0 | 76.0 |
| 9 | CS LENGTH | 435 | 435 | 435 | 435 |
| 10 | BB DROP | 55 | 55 | 55 | 55 |
| 11 | BB HEIGHT | 320 | 320 | 320 | 320 |
| 12 | WHEELBASE | 1175 | 1202 | 1231 | 1270 |
| 13 | FRONT CENTER | 746 | 773 | 802 | 841 |
| 14 | FORK LENGTH | 551 | 551 | 551 | 551 |
| 15 | FORK OFFSET | 51 | 51 | 51 | 51 |
