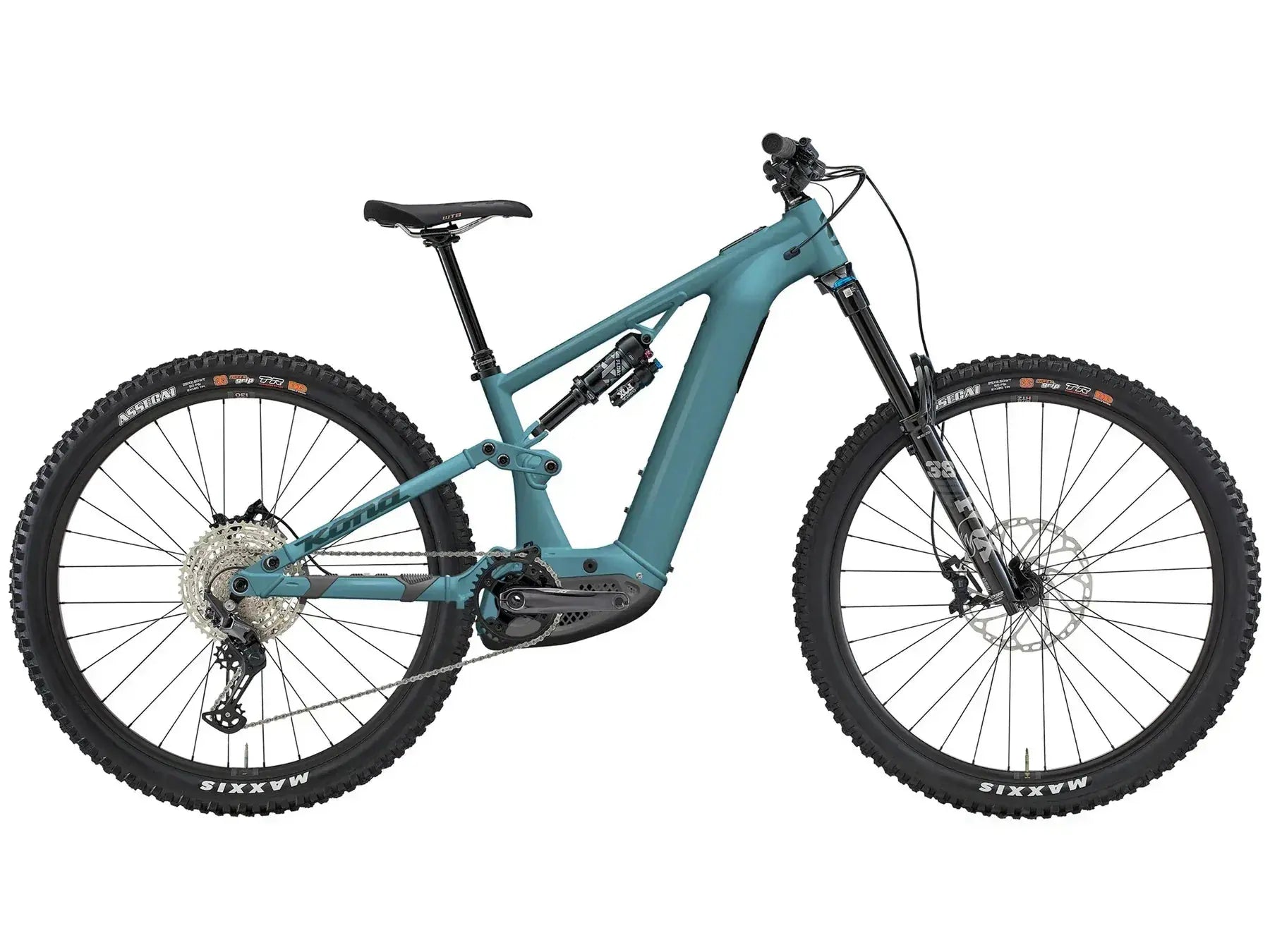

Kona Remote 160 - Bosch - Electric MTB
Now powered by Bosch. We’ve kept the geometry, suspension, and rowdy ride feel that made this bike a favourite, and paired it with the Bosch Performance Line CX motor system for seamless, intuitive power delivery. The result? A familiar beast with a serious boost
MODEL HIGHLIGHTS
• Flip chip for matched 29 or MX 29/27.5 wheels
• Improved ST insertion— run taller droppers
• Custom internal holder reduces cable rattle
• Coil shock compatible
• Low center of gravity— best in class design approach
• Bosch Performance CX DU: Up to 100Nm and peak 750W
• All sizes fit water bottles or Bosch PowerMore range extender
SPEC HIGHLIGHTS
• Bosch Performance Line CX DU, 800Wh battery, System Controller w/ mini remote and faster 4A charger
• New RockShox Zeb Select fork and Super Deluxe Select+ shock
• SRAM Eagle 90/70 Drivetrain and Maven Brakes
• WTB HTZ Trail i30 Rims and Volt saddle
• Maxxis Assegai DD / Minion DHR II DD tires
SPECIFICATIONS
| Frame Material | Kona 6061 Aluminum Butted 160mm Travel |
| Sizes | S, M, L, XL |
| Rear Shock | RockShox Super Deluxe Select+ *New for 2026 |
| Fork | RockShox Zeb Select *New for 2026 |
| Crankarms | FSA CK-745 155mm |
| Chainrings | FSA DM 34t |
| B/B | n/a |
| Pedals | n/a |
| Chain | SRAM Eagle 70 T-Type 12spd |
| Cassette | SRAM XS 1270 Eagle Transmission T-Type 10-52t 12spd |
| Chainguide | OneUp |
| F/D | N/A |
| R/D | SRAM Eagle 90 T-Type 12spd |
| Shifters | SRAM Eagle 70 T-Type Single Click w/MMX 12spd |
| Brake Calipers | SRAM DB8 |
| Front Brake Rotor | SRAM Centerline 2.0 200mm |
| Rear Brake Rotor | SRAM Centerline 2.0 200mm |
| Brake Levers | SRAM DB8 |
| Headset | FSA No. 55R-57 |
| Handlebar | Kona Remote 35mm |
| Stem | Kona BC 35mm |
| Seatpost | TransX w/MMX 31.6mm |
| Seat Clamp | Kona Clamp 34.9mm |
| Grips | Kona Key Grip |
| Saddle | WTB Volt Steel SL |
| Front Hub | Formula 15x110mm |
| Rear Hub | Formula 12x148mm |
| Spokes | Stainless Black 14g |
| Rims | WTB HTZ Trail i30 TCS 2.0 |
| Front Tire | Maxxis Assegai DD w/MaxxGrip & TR 29x2.5" WT |
| Rear Tire | Maxxis DHR II DD w/MaxxTerra & TR 2.4" WT (S=27.5",M-XL=29") |
| Drive Unit | Performance Line CX (32kmh/20mph) |
| Battery | Bosch PowerTube 800wh |
| Display | Bosch System Controller with mini remote |
| Charger | Bosch Smart System 4A Charger 100-120V |
| Battery Lock | n/a |
| Paint Color | Gloss Reef Blue w/ Atlantic Blue Decals |
Now powered by Bosch. We’ve kept the geometry, suspension, and rowdy ride feel that made this bike a favourite, and paired it with the Bosch Performance Line CX motor system for seamless, intuitive power delivery. The result? A familiar beast with a serious boost
MODEL HIGHLIGHTS
• Flip chip for matched 29 or MX 29/27.5 wheels
• Improved ST insertion— run taller droppers
• Custom internal holder reduces cable rattle
• Coil shock compatible
• Low center of gravity— best in class design approach
• Bosch Performance CX DU: Up to 100Nm and peak 750W
• All sizes fit water bottles or Bosch PowerMore range extender
SPEC HIGHLIGHTS
• Bosch Performance Line CX DU, 800Wh battery, System Controller w/ mini remote and faster 4A charger
• New RockShox Zeb Select fork and Super Deluxe Select+ shock
• SRAM Eagle 90/70 Drivetrain and Maven Brakes
• WTB HTZ Trail i30 Rims and Volt saddle
• Maxxis Assegai DD / Minion DHR II DD tires
SPECIFICATIONS
| Frame Material | Kona 6061 Aluminum Butted 160mm Travel |
| Sizes | S, M, L, XL |
| Rear Shock | RockShox Super Deluxe Select+ *New for 2026 |
| Fork | RockShox Zeb Select *New for 2026 |
| Crankarms | FSA CK-745 155mm |
| Chainrings | FSA DM 34t |
| B/B | n/a |
| Pedals | n/a |
| Chain | SRAM Eagle 70 T-Type 12spd |
| Cassette | SRAM XS 1270 Eagle Transmission T-Type 10-52t 12spd |
| Chainguide | OneUp |
| F/D | N/A |
| R/D | SRAM Eagle 90 T-Type 12spd |
| Shifters | SRAM Eagle 70 T-Type Single Click w/MMX 12spd |
| Brake Calipers | SRAM DB8 |
| Front Brake Rotor | SRAM Centerline 2.0 200mm |
| Rear Brake Rotor | SRAM Centerline 2.0 200mm |
| Brake Levers | SRAM DB8 |
| Headset | FSA No. 55R-57 |
| Handlebar | Kona Remote 35mm |
| Stem | Kona BC 35mm |
| Seatpost | TransX w/MMX 31.6mm |
| Seat Clamp | Kona Clamp 34.9mm |
| Grips | Kona Key Grip |
| Saddle | WTB Volt Steel SL |
| Front Hub | Formula 15x110mm |
| Rear Hub | Formula 12x148mm |
| Spokes | Stainless Black 14g |
| Rims | WTB HTZ Trail i30 TCS 2.0 |
| Front Tire | Maxxis Assegai DD w/MaxxGrip & TR 29x2.5" WT |
| Rear Tire | Maxxis DHR II DD w/MaxxTerra & TR 2.4" WT (S=27.5",M-XL=29") |
| Drive Unit | Performance Line CX (32kmh/20mph) |
| Battery | Bosch PowerTube 800wh |
| Display | Bosch System Controller with mini remote |
| Charger | Bosch Smart System 4A Charger 100-120V |
| Battery Lock | n/a |
| Paint Color | Gloss Reef Blue w/ Atlantic Blue Decals |
